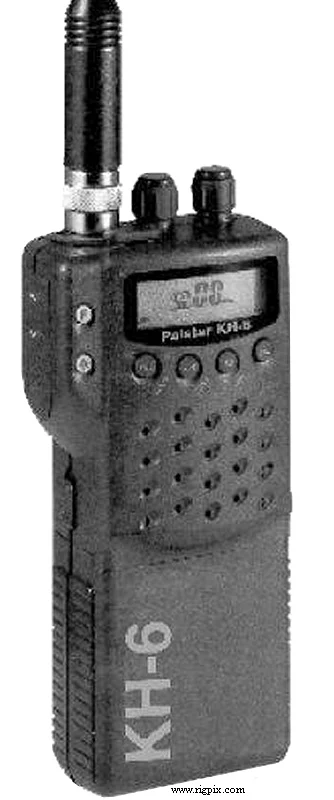

KH-6
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | TX: 50-54 MHz RX: 50-54 MHz |
| Tuning steps | 5 / 10 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 5 regular |
| Repeater shift / offset | ±? |
| Power supply | 9.6-12 VDC (Eight R6 / AA alkaline or NiCd batteries)or 7.2-15.6 VDC external |
| Current drain / power consumption | RX: 30 mA (Standby)TX: Max? A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 55*130*36 mm (2.16*5.12*1.42"), with battery case |
| Weight | 400 g (14.11 oz), without batteries |
| Other features | CTCSS/PL. Dual watch. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2-4 W500 mW NB! The high level depends on voltage/battery pack |
|---|---|
| 2 m | 2-4 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 1997-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
