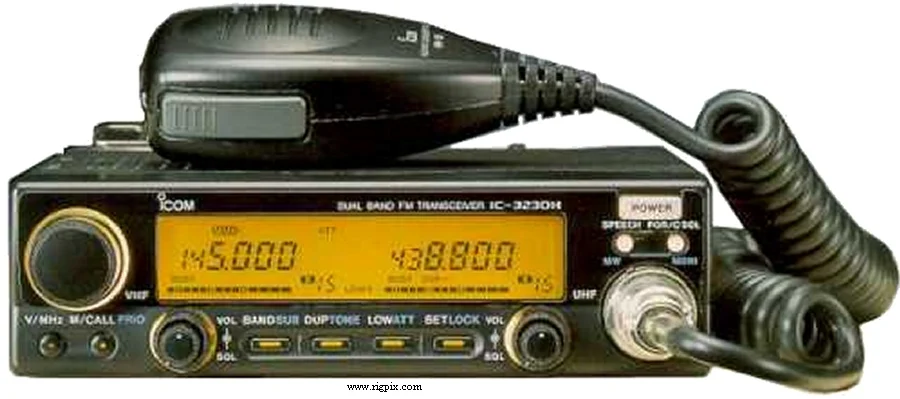

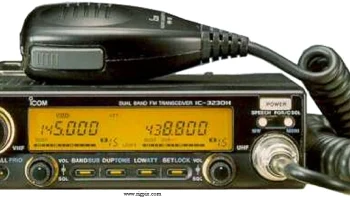

IC-3230H
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 136-174 / 400-479 MHz USA TX: 144-148 / 440-450 MHz RX: 136-174 / 400-479 MHz Australia TX: 144-148 / 430-440 MHz RX: 136-174 / 400-479 MHz (The wide RX frequency range may require modification) |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz, 1 / 10 MHz |
| Frequency stability | ±10 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 30 regular (15 per band) 2 call (1 per band) 1 scan edge pair RAM storage with lithium battery backup |
| Repeater shift / offset | Programmable |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: 1.2 to 1.8 ATX: 4 to 10.5 A |
| Antenna impedance / connector | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D) | 140*40*165 mm (5.51*1.58*6.5") |
| Weight | 1.25 Kg (2.76 lb) |
| Other features | CTCSS/PL encoder. Attenuator. Dimmer. Remote control with UT-55 option. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.2 MHz (VHF), 30.85 MHz (UHF) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 2.4 W at 10% distortion / 8 ohm |
| External speaker connector | 2*3.5 mm, 4-8 ohm |
TRANSMITTER SECTION
| RF output power | HighLow 2Low 1 2 m:45 W10 W1 W 70 cm:35 W10 W1 W |
|---|---|
| 2 m | 45 W |
| 70 cm | 35 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1992-199x (Discontinued) |
|---|---|
| Additional info | New price 1992 in Sweden: SEK 6600:- |
| Modifications | — |
| AH-32 AHB-32 HM-56/A HM-58 HM-59 HS-15 HS-15B MB-27 MB-34 OPC-044B PS-30 PS-45 SM-6 SM-8 SM-20 SP-7 SP-10 SP-12 UT-55 UT-66 UT-67 | Dual band mobile antenna (2 m/70 cm) Trunk mount with coax cable for AH-32 Hand microphone with DTMF and 1750 Hz tone call Hand microphone Hand microphone with 1750 Hz tone call Flexible mobile microphone Switchbox for HS-15 Mobile mounting bracket Joint plate. For stacking with IC-1201A/E etc. DC power cable DC power supply. 13.8 VDC, 25 A DC power supply. 13.8 VDC, 8 A Desktop microphone Desktop microphone with dual line output Desktop microphone External speaker External speaker External speaker DTMF encoder/decoder unit Voice synthesizer unit. English or Japanese voice selectable Tone squelch unit |
