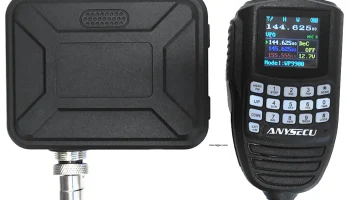

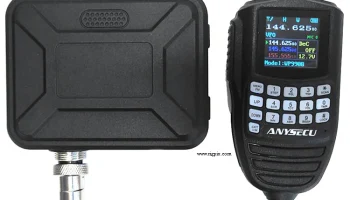

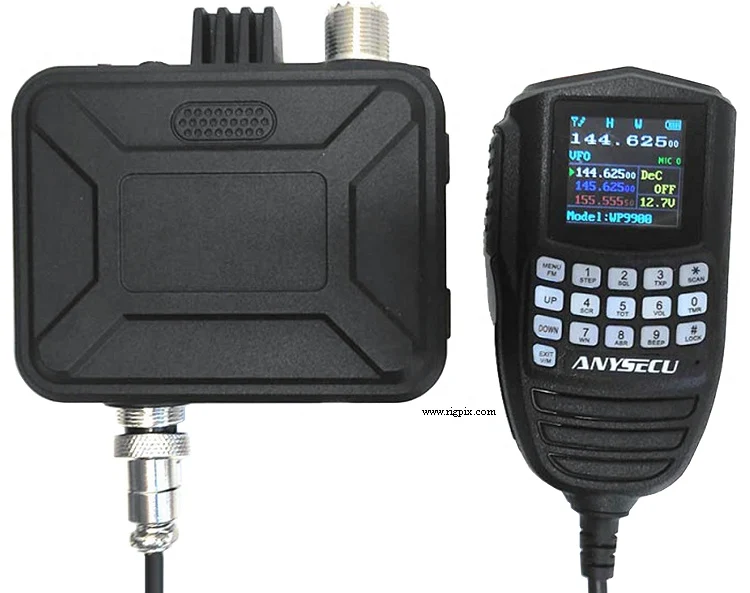

WP-9900
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Standard TX: 144-148 / 430-440 MHz RX: 144-148 / 430-440 MHz Expanded TX: 136-174 / 400-480 MHz RX: 136-174 / 400-480 MHz |
| Tuning steps | 5 / 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +60°C (-4 to +122°F) |
| Mode | FM / NFM |
| Channels / memory management | 200 regular with alpha tags Priority function |
| Repeater shift / offset | ±0 to 9.99 MHz |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX:? mATX: Max 10 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | Transceiver unit: 98*118*35 mm (3.86*4.65*1.38")Control mike:? mm (?") |
| Weight | Transceiver unit: 408 g (14.4 oz)Control mike:? g (? oz) |
| Other features | 1.6" color display. CTCSS/PL and DCS. 2- and 5-tone. DTMF. Voice inversion scrambler. VOX. PC programmable. Dual watch. 1000 / 1450 / 1750 / 2100 Hz tone call. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | FM: 0.25 uV (12 dB SINAD) NFM: 0.35 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 2 W at 10% distortion /? ohm |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:25 W? W 70 cm:20 W? W |
|---|---|
| 2 m | 25 W |
| 70 cm | 20 W |
| Modulation system | — |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | China, 202x-202x |
|---|---|
| Additional info | New price, march 2023 in Sweden: SEK 1795:- |
| - | - |
