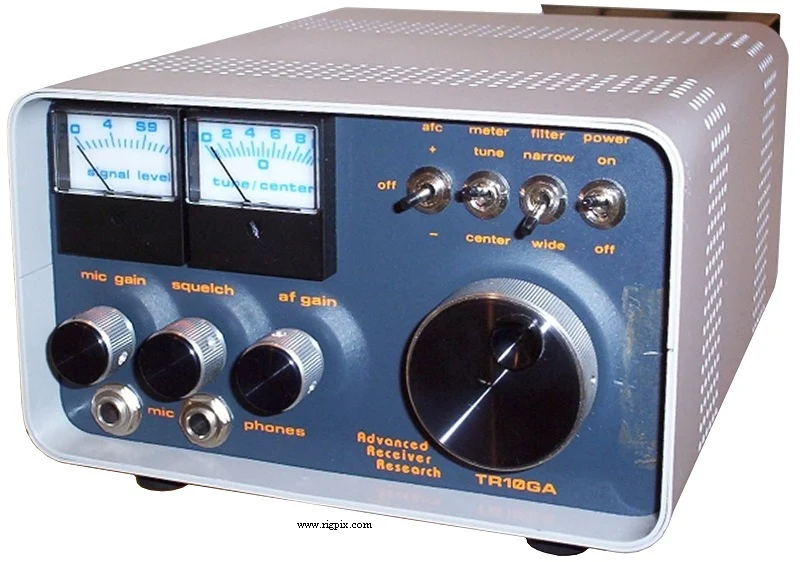

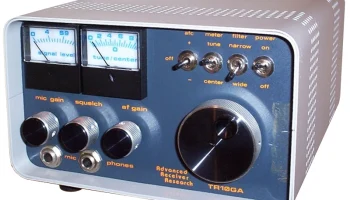

TR10GA
Источник:
GENERAL
| Type | Amateur SHF transceiver |
|---|---|
| Frequency range | TX: 10325-10295 MHz RX: 10325-10295 MHz |
| Tuning steps | — |
| Frequency stability | ±? ppm |
| Mode | WFM |
| Channels / memory management | — |
| Repeater shift / offset | ±? |
| Power supply | 12-16 VDC |
| Current drain / power consumption | RX:? ATX: Max 250 mA (10 mW version) |
| Antenna impedance / connector | ? ohm / Horn |
| Dimensions (W*H*D) | ? mm (?") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne IF: 30 MHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output powerdepending on version | 10 mW, 20 mW, 35 mW or 100 mW |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | ±? KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin (1/4" jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 198x-20xx (Discontinued) |
|---|---|

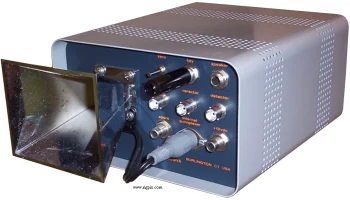

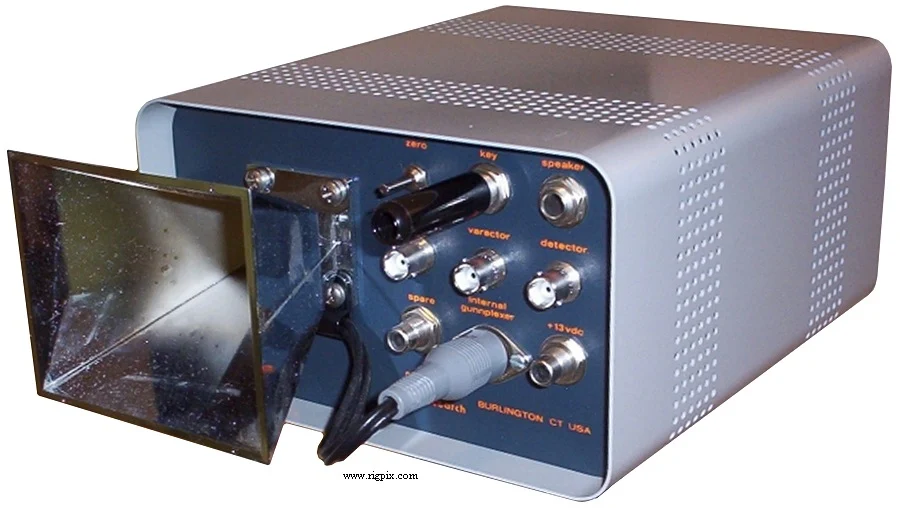

| Additional info | Detachable gunnplexer for remote mounting New price 1987 in the US: $399.95 (10 mW version) New price 2009 in the US: $599.95 (10 mW version) |
| - | - |
