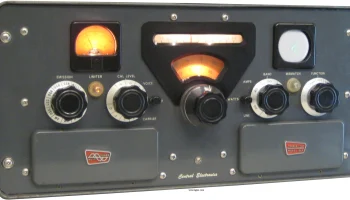

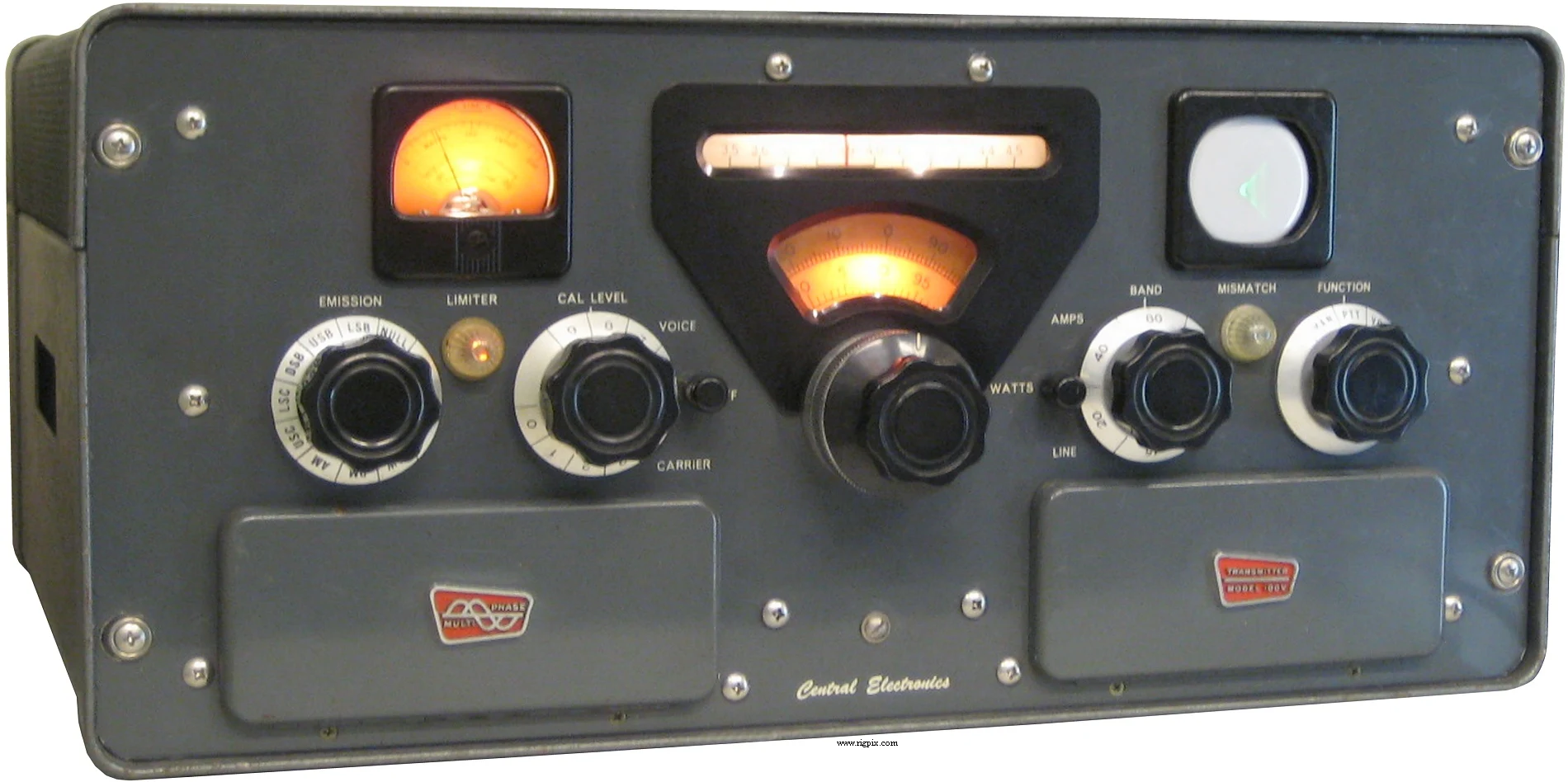

100-V
Источник:
GENERAL
| Type | Amateur HF transmitter |
|---|---|
| Frequency range | 10-80 m in five bands 80 m: 3.5-4.5 MHz 40 m: 6.5-7.5 MHz 20 m: 13.5-14.5 MHz 15 m: 20.5-21.5 MHz 10 m: 27.7-29.7 MHz Plus one spare position for 160 m or any 1 MHz portion between 2.5-25.5 MHz |
| 80 m | 3.5-4.5 MHz |
| 40 m | 6.5-7.5 MHz |
| 20 m | 13.5-14.5 MHz |
| 15 m | 20.5-21.5 MHz |
| 10 m | 27.7-29.7 MHz |
| Tuning steps | Analog / continuous |
| Frequency stability | Less than 25 Hz in any 10 minute period after 5 minute warmup |
| Mode | AM / SSB / DSB / CW / PM / FSK |
| Channels / memory management | None |
| Power supply | Mains: 115 VAC (Fixed power cord) |
| Current drain / power consumption | Max? W |
| Antenna impedance / connector | 50-72 ohm / SO-239 |
| Dimensions (W*H*D) | 489*229*381 mm (19.25*9*15") |
| Weight | 39.5 Kg (87 lb) |
| Other features | VOX. 2" monitoring scope. Mismatch indicator. |
TRANSMITTER SECTION
| RF output power | Pwr AM:25-35 W PM:100 W SSB (PEP):100 W CW:100 W FSK:100 W |
|---|---|
| AM | 25-35 W |
| PM | 100 W |
SSB (PEP)
| CW | 100 W |
|---|
FSK
| Modulation system | — |
|---|---|
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | Hi-Z / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1958-196x (Discontinued) |
|---|---|
| Additional info | New price 1959 in the US: $795.00 New price 1961 in the US: $599.75 |
| - | - |
