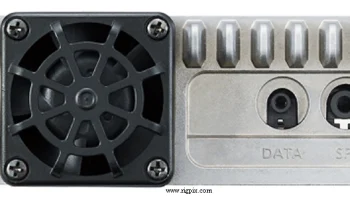

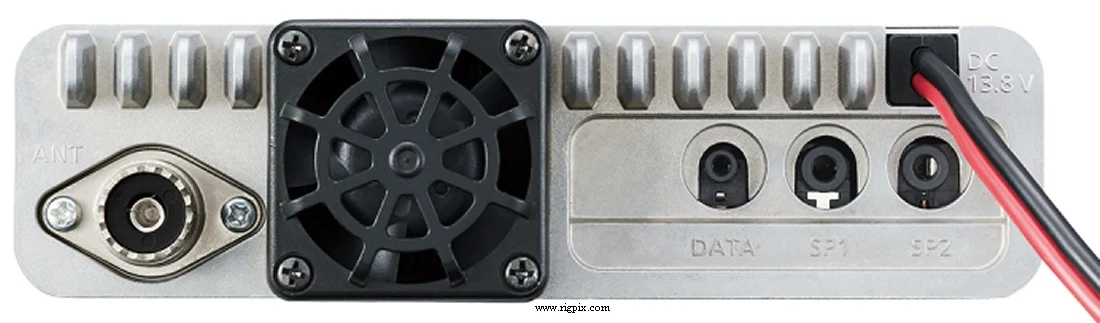

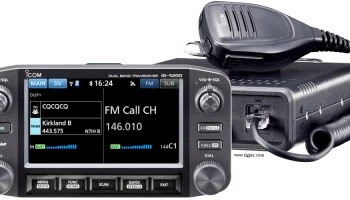

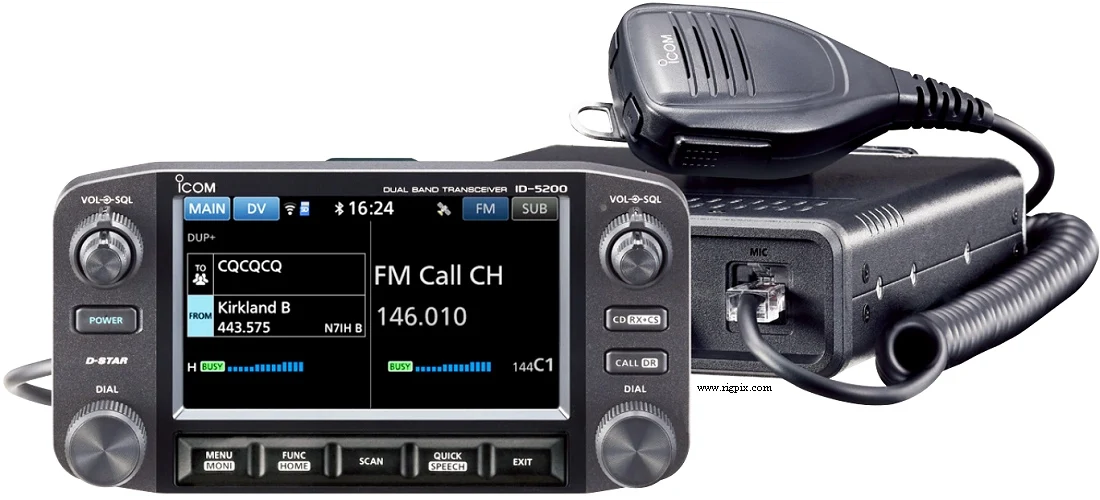

ID-5200A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 430-450 MHz RX: 118-174 / 225-550 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability | ±2.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | TX: FM / FM-N / DV (D-Star)RX: AM / AM-N / FM / FM-N / DV (D-Star) |
| Channels / memory management | 1000 regular in 100 groups 50 program scan edge 4 call 2500 repeater in 50 groups 300 GPS |
| Repeater shift / offset | Programmable |
| Power supply | 13.8 VDC ±15% («T» connector on pigtail) |
| Current drain / power consumption | RX: 1.2-1.8 ATX: Less than 13 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | Main unit: 150*40*172 mm (5.9*1.6*6.8")Controller: 163*84*24 mm (6.4*3.3*0.9") |
| Weight | Main unit: 1.28 Kg (2.8 lb)Controller: 260 g (9.2 oz) |
| Other features | CTCSS/PL and DTCS. 4.3" color touch screen. WiFi and Bluetooth. Gateway and terminal or accesspoint mode. GPS. VOX. DV repeater monitoring. Bandscope and. waterfall. Voice recorder. MicroSD card slot. USB-C connector. Clock. DR-mode. Speech synthesizer. Auto or manual dimmer. APRS and KISS mode. CI-V. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 58.05 MHz (A band). 57.15 MHz (B band) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | FM/NFM (2 m/70 cm ham bands): 0.18 uV (12 dB SINAD) DV (2 m/70 cm ham bands): 0.18 uV (BER 1%) AM/AM-N (10 dB S/N) 118-144 MHz: 1 uV 225-250 MHz: 3.2 uV 250-300 MHz: 1 uV 300-400 MHz: 3.2 uV FM/NFM (12 dB SINAD) 137-144 MHz: 0.32 uV 148-160 MHz: 0.32 uV 160-174 MHz: 1 uV 225-250 MHz: 1 uV 250-300 MHz: 0.32 uV 300-400 MHz: 1 uV 400-430 MHz: 0.32 uV 450-500 MHz: 0.32 uV 500-550 MHz: 0.56 uV |
| Squelch sensitivity | 2 m/70 cm ham bands: Less than 0.13 uV (Threshold) |
| Noise figure | — |
| Selectivity | Adjacent channel FM: >60 dB NFM: >55 dB DV: >50 dB |
| Image rejection | 60 dB |
| AF output power / speaker | 750 mW at 10% distortion / 8 ohm |
| External speaker connector | Two TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:50 W15 W5 W 70 cm:50 W15 W5 W |
|---|---|
| 2 m | 50 W |
| 70 cm | 50 W |
| Modulation system | FM/NFM: Variable reactance frequency modulation DV: AMBE+2 / GMSK reactance frequency modulation |
| Max AM modulation (Factory set) | No AM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dBc |
| Microphone impedance / connector | 600 ohm / 8-pin (Modular) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2026-202x |
|---|---|
| Additional info | — |
| CS-5200 HM-232 | Programming software Hand microphone |
