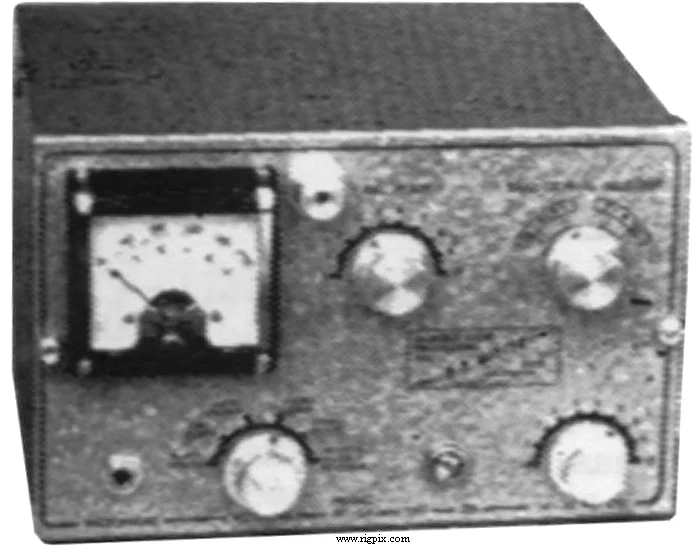

MT5A
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | 10-80 m |
| Tuning steps | Analog / continuous |
| Frequency stability | ±? ppm |
| Mode | AM |
| Channels / memory management | — |
| Repeater shift / offset | No |
| Power supply | Mains (Separate PSU) |
| Current drain / power consumption | RX:? WTX: Max? W |
| Antenna impedance / connector | ? ohm / ? |
| Dimensions (W*H*D) | 203*127*178 mm (8*5*7") |
| Weight | ? Kg (? lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? W at ?% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | 35-50 W (Input) |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | USA, 1952-195x (Discontinued) |
|---|---|
| Additional info | New price 1952 in the US: $99.50 (Less crystals) |
| - | - |
