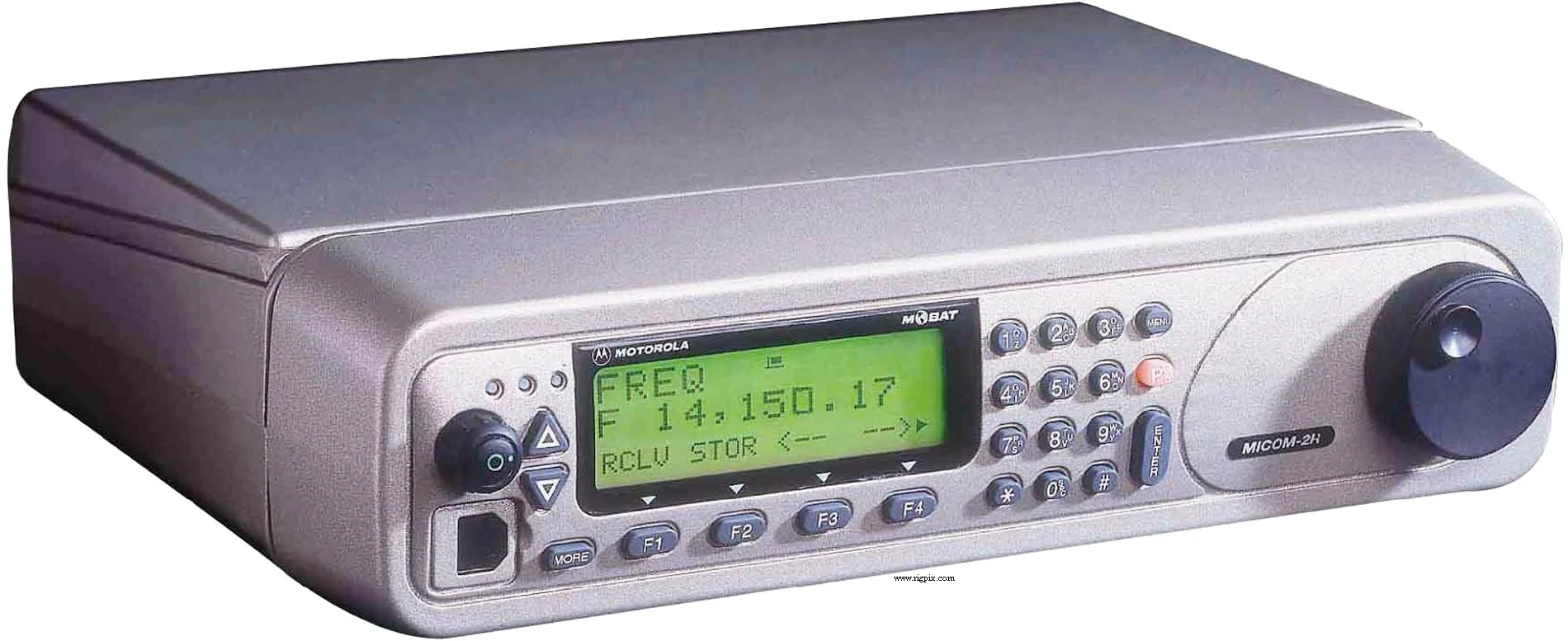

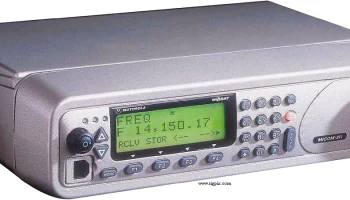

Micom-H
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARCRX: 0.1-30 MHz |
| Tuning steps | 10 Hz |
| Frequency stability | ±0.6 ppm @ -30 to + 60°C (-22 to 140°F) |
| Mode | SSB / CW |
| Channels / memory management | 200 regular |
| Repeater shift / offset | ±? |
| Power supply | 13.8 VDC ±20% |
| Current drain / power consumption | RX: Max 3 ATX: Max 28 A |
| Antenna impedance / connector | 50 ohm / ? |
| Dimensions (W*H*D) | 302*92*270 mm (11.89*3.62*10.63") |
| Weight | 5.7 Kg (12.57 lb) |
| Other features | DSP. Voice activated digital squelch. Scanning. Attenuator. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | SSB: 0.5 uV (10 dB SINAD) Reduced performance below 1.6 MHz |
| Selectivity | 2.7 KHz (-6 dB)4 KHz (-60 dB) |
| Image rejection | 80 dB |
| AF output power / speaker | 5 W at 2.5% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow SSB (PEP):125 W62 W25 W CW:125 W62 W25 W |
|---|
SSB (PEP)
| CW | 125 W |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -64 dB |
| Microphone impedance / connector | 600 ohm / ?-pin |
| Microphone input level | 25-125 mV |
MISCELLANEOUS
| Manufactured | 2000-200x (Discontinued) |
|---|---|
| Additional info | A very rugged radio indeed. Meets military and industrial requirements for extreme conditions |
