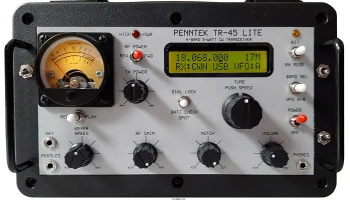

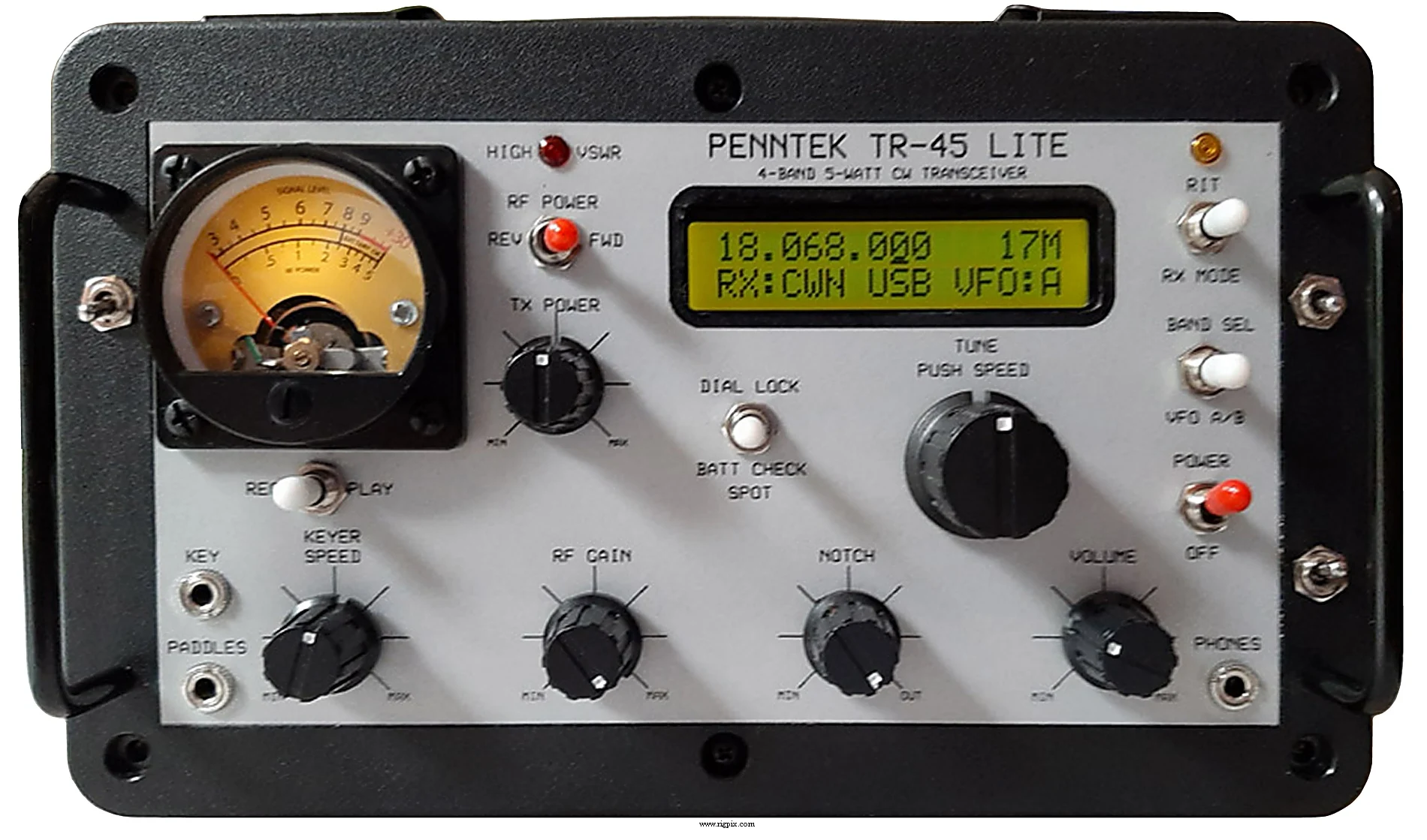

TR-45L
Источник:
GENERAL
| Type | Amateur HF transceiver |
|---|---|
| Frequency range | TX: 17 / 20 / 30 / 40 / 80 m RX: 17 / 20 / 30 / 40 / 80 m |
| Tuning steps | 1 / 10 / 100 Hz, 1 KHz |
| Frequency stability | ±? ppm |
| Mode | TX: CWRX: SSB / CW |
| Channels / memory management | 10 regular (2 per band) Non-volatile EEPROM storage |
| Repeater shift / offset | No |
| Power supply | 12 VDC (Barrrel connector, center positive) |
| Current drain / power consumption | RX: 130 mATX: Max 1.3 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 216*127*76 mm (8.5*5*3") |
| Weight | 1.27 Kg (2.8 lb), with internal battery option |
| Other features | 16*2 LCD. RIT (±5 KHz). Iambic keyer with memory. 2 VFO's per band. SWR meter. Variable notch filter. Dimmer. 700 Hz audio filter. |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne IF: 4.91 MHz |
|---|---|
| Sensitivity | — |
| Selectivity | SSB:? KHz (-6 dB) CW wide:? KHz (-6 dB) CW narrow:? Hz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | 5 W nominal |
|---|---|
| Modulation system | — |
| Max FM deviation (Factory set) | No FM |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | — / - |
| Microphone input level | - |
MISCELLANEOUS
| Manufactured | (Designed by WA3RNC), 2022-2024 (Discontinued) |
|---|---|
| Additional info | Preliminary price for 2023 in the US: $430.00 (Standard kit) |
