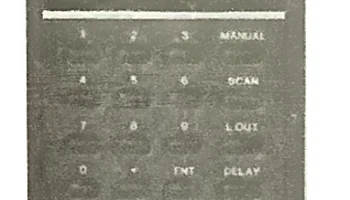

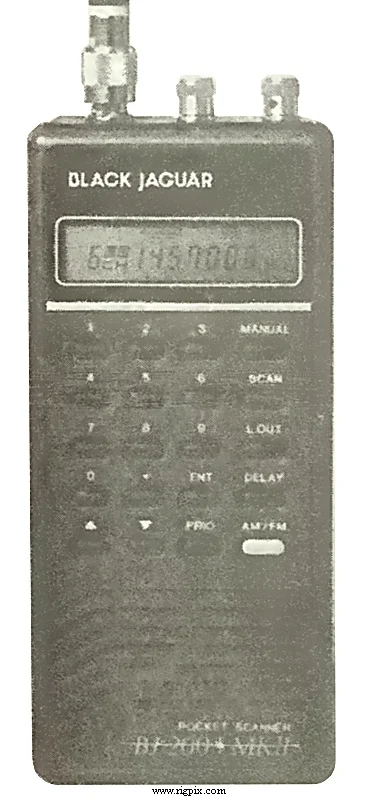

BJ-200 MkII
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 26-30 / 60-88 / 115-178 / 210-260 / 410-520 MHz NB! May tune outside these ranges, but specification is not guaranteed |
| Tuning steps | VHF: 5 KHz1.25 m and UHF: 10 / 12.5 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 16 regular @ 10 channels per second 1 priority 1 search limit pair |
| Power supply | 6-7.5 VDC (Five R6 / AA alkaline or rechargeable batteries) or 9-13.8 VDC external |
| Current drain / power consumption | 80-170 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 80*185*37 mm (3.15*7.28*1.46") |
| Weight | 470 g (1.04 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | AM (10 dB S/N) 26-30 MHz: 1 uV 60-88 MHz: 1 uV 115-178 MHz: 1 uV 210-260 MHz: 1 uV 410-520 MHz: 1.5 uV FM (12 dB SINAD) 26-30 MHz: 0.5 uV 60-88 MHz: 0.5 uV 115-178 MHz: 0.5 uV 210-260 MHz: 0.5 uV 410-520 MHz: 0.7 uV |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 40 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 125 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1987-1989 (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
