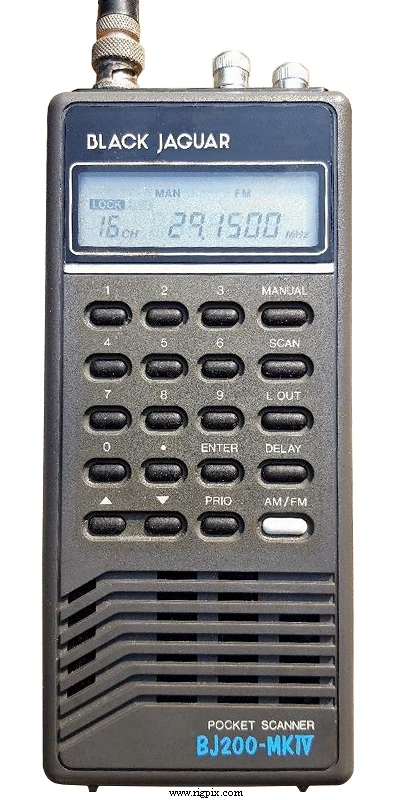

BJ-200 MkIV
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 26-30 / 60-88 / 115-178 / 210-260 / 410-520 MHz |
| Tuning steps | VHF: 5 KHz 1.25 m and UHF: 10 / 12.5 KHz |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 16 regular 1 priority 1 search limit pair |
| Power supply | 6-7.5 VDC (Five R6 / AA alkaline or rechargeable batteries)or 9-13.8 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 80*185*37 mm (3.15*7.28*1.46") |
| Weight | 470 g (1.04 lb) |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1993-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
