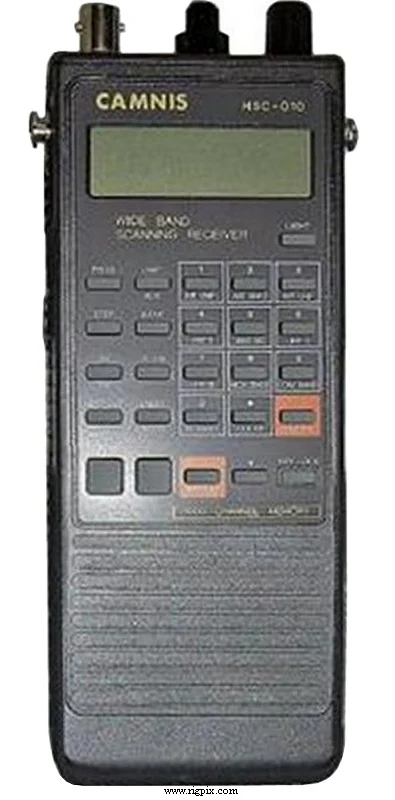

HSC-010
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-1300 MHz |
| Tuning steps | 5-995 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 1000 regular in 10 banks @ 20 channels per second 10 search banks 1 priority Non-volatile EEPROM storage |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd cells)or 11-15 VDC external |
| Current drain / power consumption | 80-100 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*170*35 mm (2.56*6.69*1.38") |
| Weight | 300 g (10.58 oz), without batteries415 g (14.64 oz), with batteries and antenna |
| Other features | Backlit display. Local/DX attenuator. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 100 mW at 10% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-1995 (Discontinued) |
|---|---|
| Additional info | New price, november 1994 in the UK: £249.00 Also sold as AOR AR-2000, Fairmate HP-2000 and Trident TR-1200 |
| - | - |
