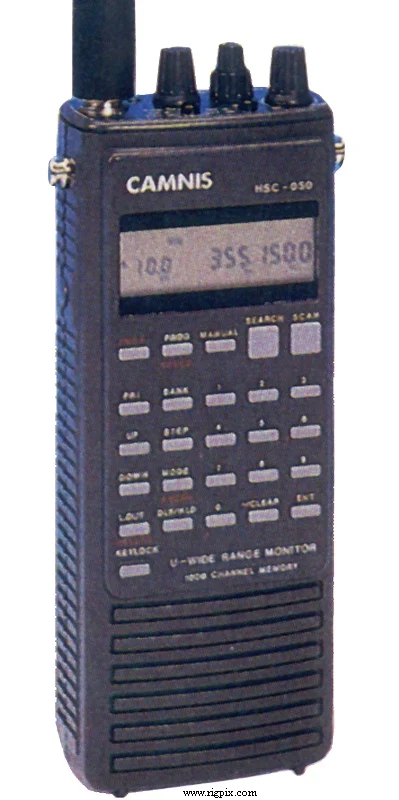

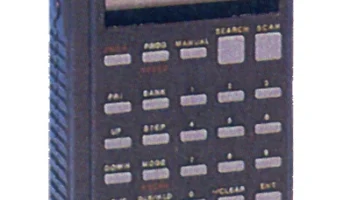

HSC-050
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-2060 MHz |
| Tuning steps | 1-999 KHz (Programmable) |
| Frequency stability | ±5 ppm @ -10 to +50°C (14 to 122°F) |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular in 10 banks @ 20 channels per second 10 search ranges 1 priority Non-volatile storage |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | 90 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 78*184*41 mm (3.07*7.24*1.61") |
| Weight | 310 g (10.93 oz), without antenna and batteries |
| Other features | Attenuator. Backlit display. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF:? MHz 2nd IF:? MHz 3rd IF:? KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 1.5-5 MHz: 2 uV 5-1000 MHz: 1.0 uV FM (12 dB SINAD) 5-1000 MHz: 0.5 uV 1000-1500 MHz: 1.5 uV 1500-2060 MHz: 2 uV WFM (30 dB S/N) 5-1000 MHz: 3 uV 1000-1500 MHz: 6 uV |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 120 mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-1995 (Discontinued) |
|---|---|
| Additional info | New price, november 1994 in the UK: £329.00 Also sold as Trident TR-2400 |
| - | - |
