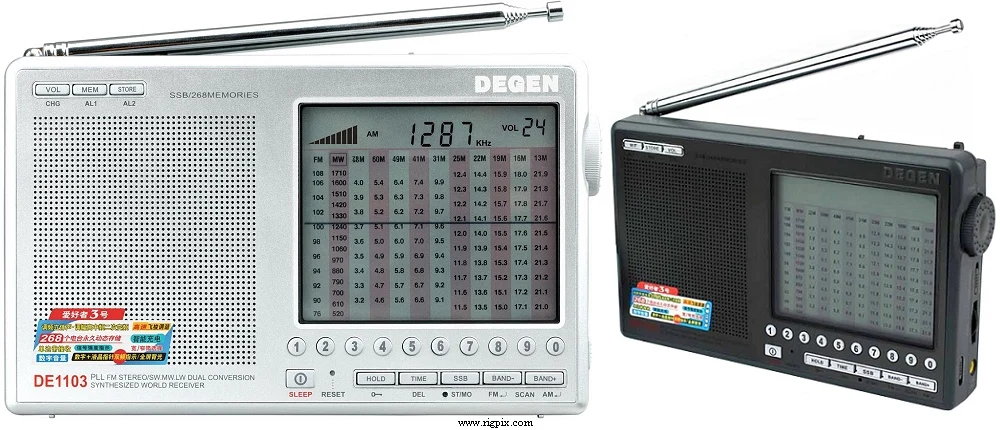

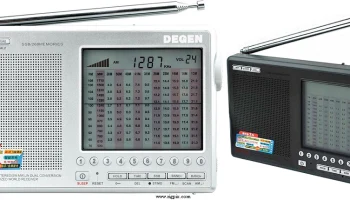

DE1103
Источник:
GENERAL
| Type | HF/VHF receiver |
|---|---|
| Frequency range | 0.1-30 / 76-108 MHz |
| Tuning steps | 1 KHz (With fine tuning knob for SSB) |
| Frequency stability | — |
| Mode | AM / SSB / CW / WFM (Stereo) |
| Channels / memory management | 268 regular |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or rechargeable batteries)or 8 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / ? |
| Dimensions (W*H*D) | 165*105*29 mm (6.5*4.13*1.14") |
| Weight | ? g (? oz) |
| Other features | Built-in clock and timer. DX/Local switch. Built-in charger. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | AM wide: 6 KHzAM narrow: 4 KHz |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | China, 20xx-20xx |
|---|---|
| Additional info | — |
| - | - |
