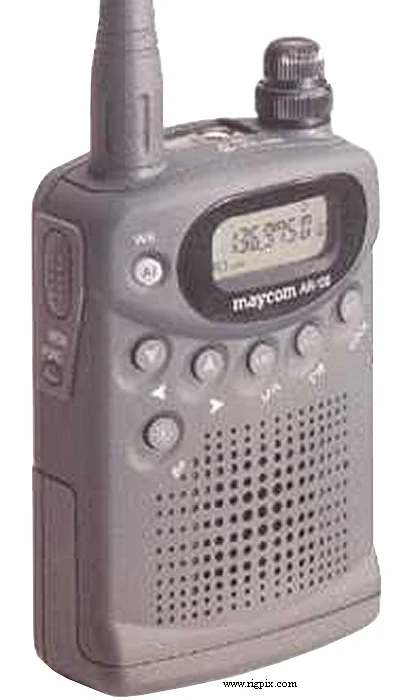

AR-108
Источник:
GENERAL
| Type | VHF receiver/scanner |
|---|---|
| Frequency range | 108-137 / 137-180 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM |
| Channels / memory management | 99 regular |
| Power supply | 2.4-3 VDC (Two LR6 / AA batteries)or 7-20 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*85*26 mm (2.28*3.35*1.02") |
| Weight | 98 g (3.46 oz), Without batteries |
| Other features | — |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.4 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | AM: 1 uV (10 dB NQ) FM: 0.25 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Korea, 199x-200x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
