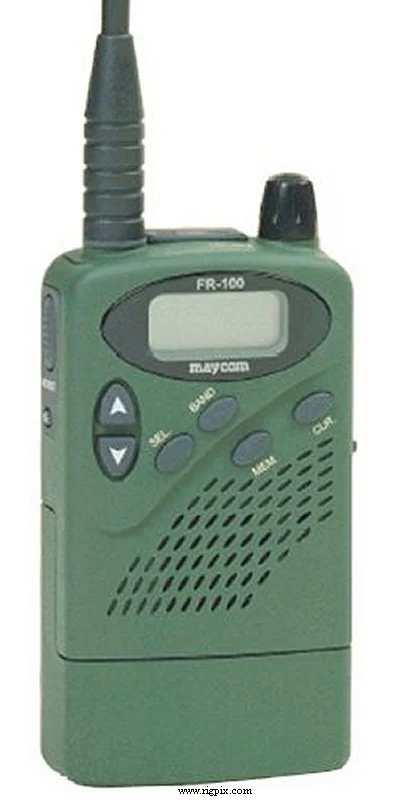

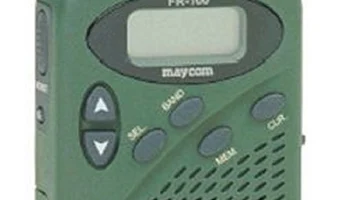

FR-100
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 66-174 / 420-470 MHz |
| Tuning steps | 5 / 8.33 / 10 / 12.5 / 20 / 25 / 50 / 100 / 200 KHz and 1 MHz |
| Frequency stability | ±15 ppm @ -10 to +55°C (14 to 131°F) |
| Mode | AM / FM / WFM |
| Channels / memory management | 150 regular in five banks |
| Power supply | 3.6-4.5 VDC (Three LR6 / AA batteries)or 6 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*103*26 mm (2.28*4.06*1.02") |
| Weight | 99 g (3.49 oz), without batteries |
| Other features | Backlit display. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 252 MHz 2nd IF: 10.7 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM: 1 uV (10 dB NQ) FM: 0.5 uV (12 dB SINAD) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 150 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Korea, 2001-200x (Discontinued) |
|---|---|
| Additional info | New price 2001 in the UK: £99.95 |
| - | - |
