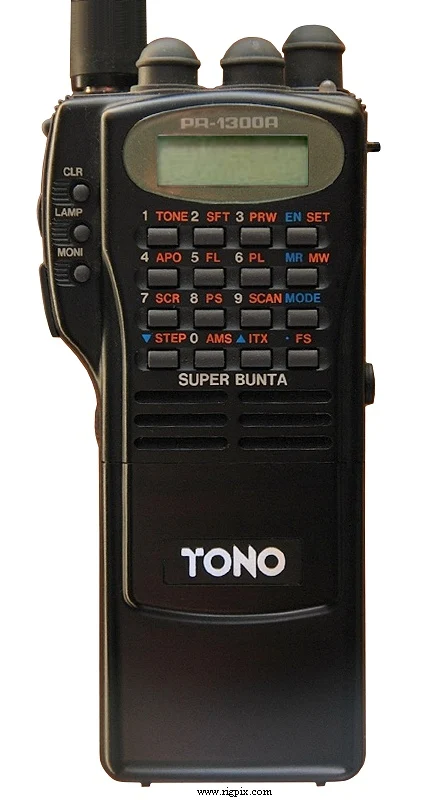

PR-1300A
Источник:
GENERAL
| Type | HF/VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-1300 MHz |
| Tuning steps | 5 / 6.25 / 10 / 12.5 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | — |
| Power supply | 6-7.5 VDC (Five LR6 / AA batteries)or 6-15 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 47*121*31 mm (1.85*4.76*1.22") |
| Weight | 290 g (10.23 oz) |
| Other features | — |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 254.25 MHz 2nd IF: 10.7 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 199x-199x (Discontinued) |
|---|---|
| Additional info | — |
| - | - |
