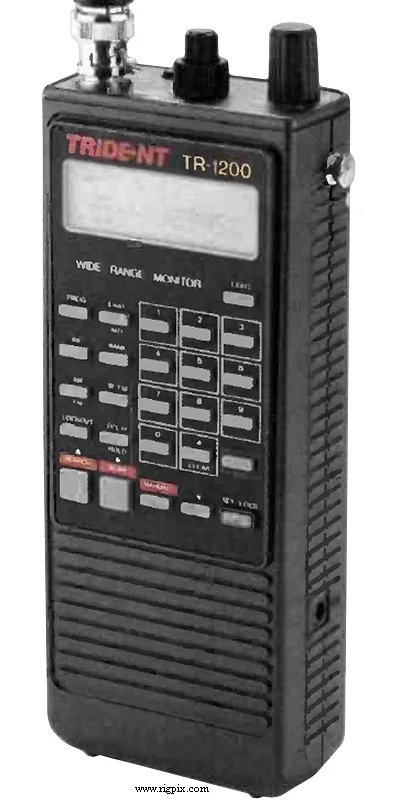

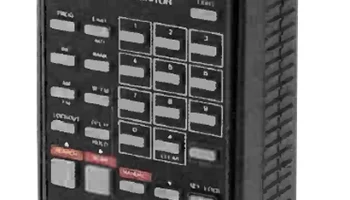

TR-1200
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.5-600 / 800-1300 MHz |
| Tuning steps | — |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 1000 regular in 10 banks |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | 90 mA (Squelched) |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*170*35 mm (2.56*6.69*1.38") |
| Weight | 280 g (9.88 oz), without batteries |
| Other features | — |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | FM: 0.5 uV (12 dB SINAD) WFM: 1 uV (20 dB S/N) |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-1995 (Discontinued) |
|---|---|
| Additional info | New price, june 1994 in the UK: £299.00 Also sold as Camnis HSC-010 |
| - | - |
