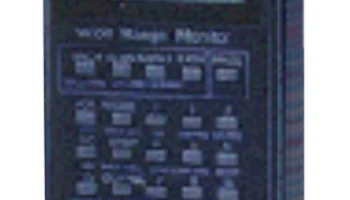

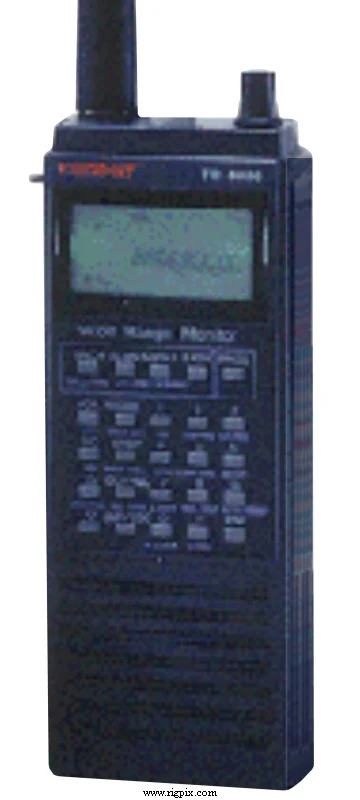

TR-4000
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-2060 MHz |
| Tuning steps | 10 Hz to 999.9 KHz (Programmable) |
| Frequency stability | ±? ppm |
| Mode | AM / FM / WFM / SSB / CW |
| Channels / memory management | 1000 regular in 10 banks @ 30 channels per second Non-volatile storage |
| Power supply | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)or 12 VDC external |
| Current drain / power consumption | — |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | ? mm (?") |
| Weight | ? g (? oz) |
| Other features | PC programmable. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1998-1999 (Discontinued) |
|---|---|
| Additional info | New price, october 1998 in the UK: £199.00 Also sold as Camnis HSC-150 |
| - | - |
