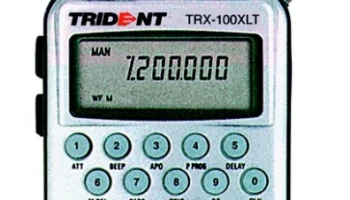

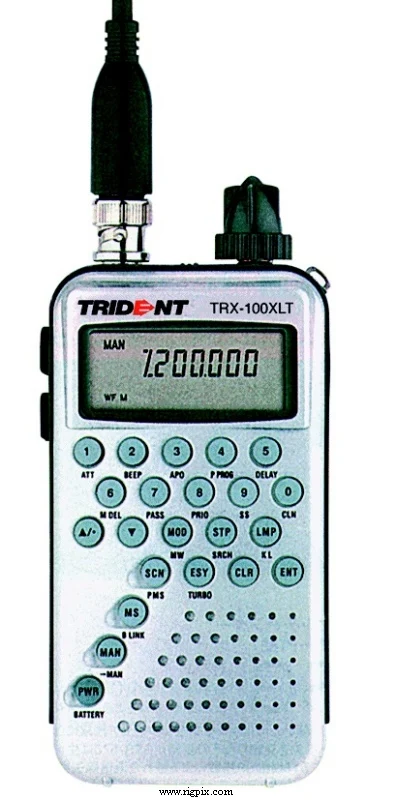

TRX-100XLT
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-2200 MHz |
| Tuning steps | 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 125 / 150 / 200 / 250 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 1000 regular @ 50 channels per second |
| Power supply | 3.6-4.5 VDC (Three R6 / AA alkaline or NiCd batteries)or 9-14 VDC external |
| Current drain / power consumption | 95-135 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 60*110*25 mm (2.36*4.33*0.98") |
| Weight | 160 g (5.64 oz), without batteries and antenna |
| Other features | Speech inversion descrambler. Dual VFO's. Nine channel bandscope. PC programmable. Attenuator (10 dB). Cloning. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 1999-2000 (Discontinued) |
|---|---|
| Additional info | New price, may 1999 in the UK: £199.95 New price, february 2000 in the UK: £179.00 |
| - | - |
