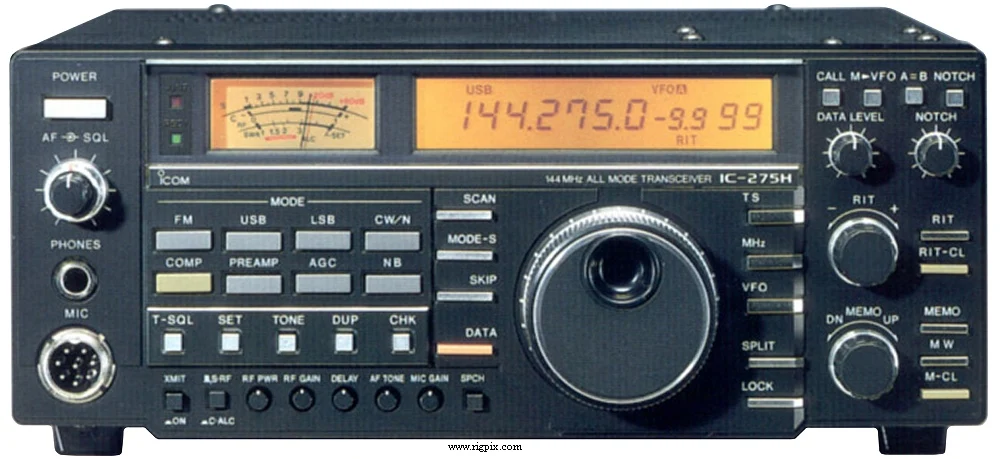

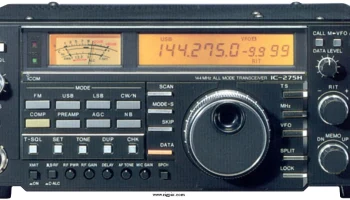

IC-275H
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 138-174 MHz USA TX: 140.1-150 MHz RX: 138-174 MHz Australia TX: 144-148 MHz RX: 138-174 MHz (The wide RX frequency range may require modification) |
| Tuning steps | 10 Hz, 1 / 2.5 / 5 / 10 KHz |
| Frequency stability | ±5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | FM / SSB / CW |
| Channels / memory management | 99 regular 1 call 2 scan edge RAM storage with lithium battery backup |
| Repeater shift / offset | ±0-? MHz (600 KHz default) |
| Power supply | 13.8 VDC |
| Current drain/power consumption | RX: 0.9 to 1 ATX: Max 20 A |
| Antenna impedance / connector | 50 ohm / SO-239 |
| Dimensions (W*H*D) | 241*95*239 mm (9.5*3.7*9.4") |
| Weight | 6 Kg (13.2 lb) |
| Other features | CI-V computer control. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.75 MHz (FM/SSB), 10.7491 (CW) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | FM: 0.18 uV (12 dB SINAD) SSB/CW: 0.1 uV (10 dB S/N) |
| Squelch sensitivity | FM: Less than 0.1 uV (Threshold) SSB: Less than 0.56 uV (Threshold) |
| Noise figure | — |
| Selectivity | FM 15 KHz (-6 dB)30 KHz (-60 dB) SSB/CW 2.2 KHz (-6 dB)4.2 KHz (-60 dB) |
| Image rejection | 70 dB |
| AF output power / speaker | 2 W at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | 10-100 W adjustable |
|---|---|
| Modulation system | FM: Variable reactanceSSB: Balanced |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1987-199x (Discontinued) |
|---|---|
| Additional info | Early version had passband tuning (PBT) which was replaced by a data level pot in the 1988 version and onwards. New price 1989 in the US: $1199.00 |
| AG-25 CR-64 CT-16 CT-17 FL-83 HM-12 HM-14 HM-15 MB-5 MB-23 PS-30 PS-55 SM-8 SM-10 SP-7 UT-34 UT-36 | Weatherproof 2 m preamplifier High stability crystal unit Satellite communication interface unit CI-V level converter CW narrow filter (500 Hz) Hand microphone Hand microphone with DTMF keypad Hand microphone with 1750 Hz tone call Mobile mounting bracket Carrying handle and rubber feet kit AC power supply. 13.8 VDC, 25 A AC power supply. 13.8 VDC, 20 A Desk microphone with two line outputs Desk microphone with compressor & equalizer External speaker Tone squelch unit Voice synthesizer unit |
