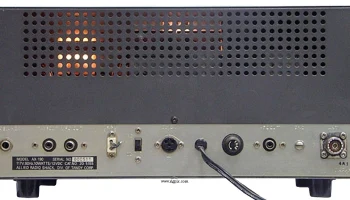

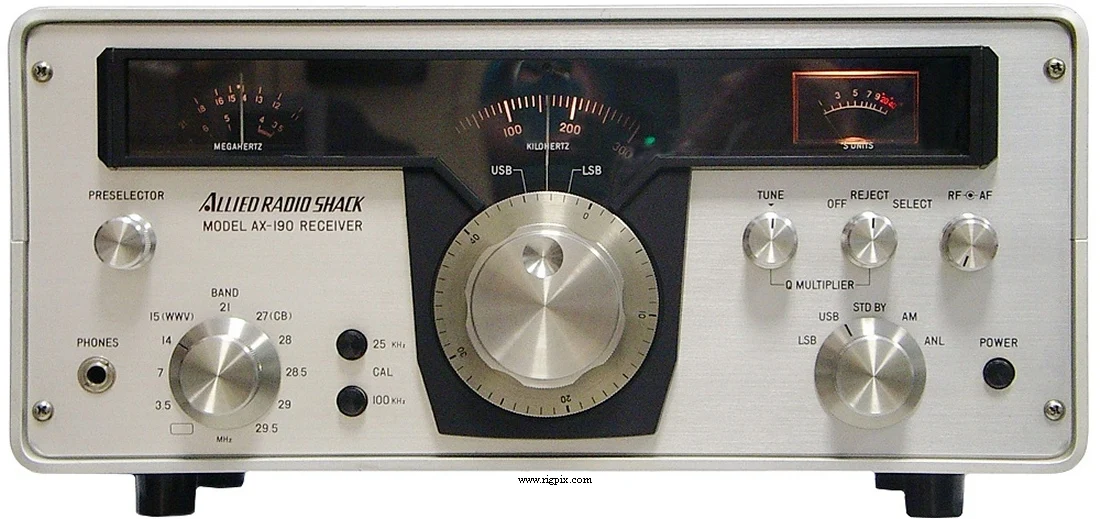

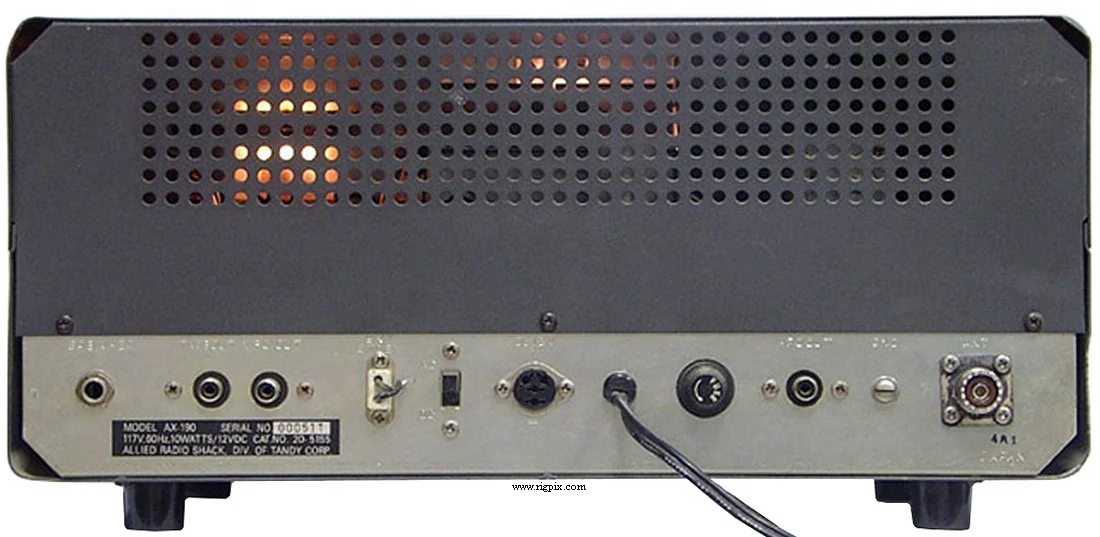

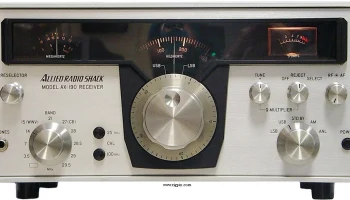

AX-190
Источник:
GENERAL
| Type | Amateur band HF receiver |
|---|---|
| Frequency range | 10-80 m in ten bands 80 m: 3.5-4 MHz 40 m: 7-7.5 MHz 20 m: 14-14.5 MHz WWV: 15-15.5 MHz 15 m: 21-21.5 MHz CB: 27-27.5 MHz 10 m: 28-28.5 MHz 10 m: 28.5-29 MHz 10 m: 29-29.5 MHz 10 m: 29.5-30 MHz |
| 80 m | 3.5-4 MHz |
| 40 m | 7-7.5 MHz |
| 20 m | 14-14.5 MHz |
WWV
| 15 m | 21-21.5 MHz |
|---|---|
| CB | 27-27.5 MHz |
| 10 m | 28-28.5 MHz |
| 10 m | 28.5-29 MHz |
| 10 m | 29-29.5 MHz |
| 10 m | 29.5-30 MHz |
| Tuning steps | Analog / continuous |
| Frequency stability | — |
| Mode | AM / SSB / CW |
| Channels / memory management | None |
| Power supply | Mains: 117 or 230 VAC (Fixed power cord)or 12 VDC |
| Current drain / power consumption | ? mA @ 12 VDC |
| Antenna impedance / connector | 50-75 ohm / SO-239 |
| Dimensions (W*H*D) | 381*178*254 mm (15*7*10") |
| Weight | 9 Kg (20 lb) |
| Other features | ANL. 25 & 100 KHz calibrator. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: ~2.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | SSB/CW: 0.5 uV (10 dB S/N) |
| Selectivity | 4 KHz (-6 dB) |
| Image rejection | 60 dB |
| AF output power / speaker | 1 W at ?% distortion / No internal speaker |
| External speaker connector | 1/4" jack |
MISCELLANEOUS
| Manufactured | Japan, 1972-1973 (Discontinued) |
|---|---|
| Additional info | New price 1972 in the US: $249.95 New price 1973 in the US: $249.95 |
| - | - |
