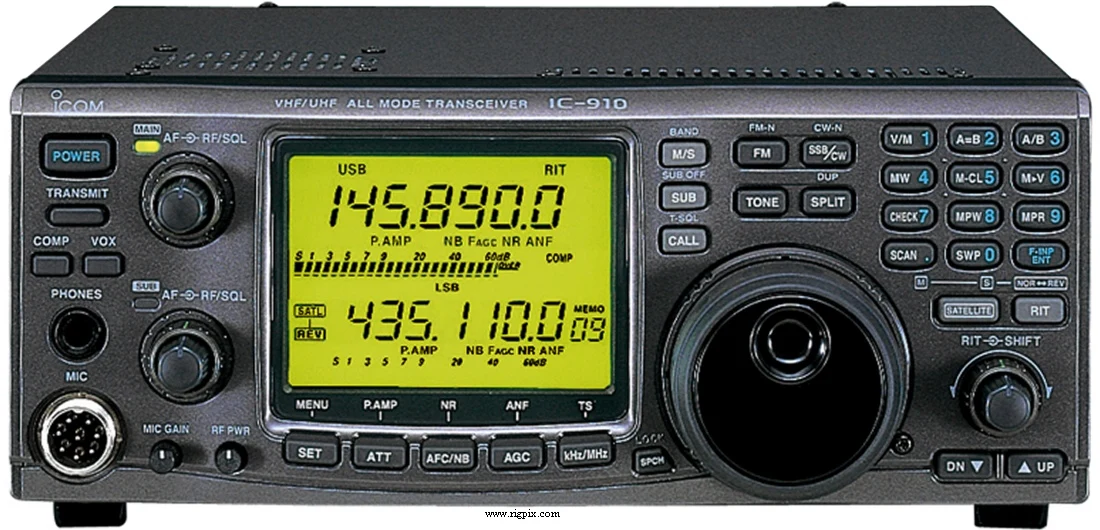

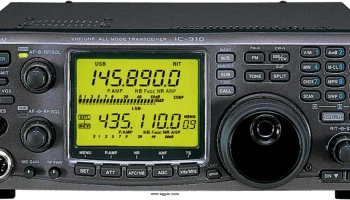

IC-910
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Japanese domestic market TX: 144-146 / 430-440 MHz RX: 136-174 / 420-480 MHz 23 cm option UX-910) TX: 1260-1300 MHz RX: 1260-1320 MHz |
| Tuning steps | FM: 100 Hz, 5 / 6.25 / 10 / 12.5 / 20 / 25 / 100 KHz SSB/CW: 1 / 10 / 50 / 100 Hz |
| Frequency stability | Better than ±3 ppm (±0.5 ppm with optional CR-293) |
| Mode | FM / FM-N / SSB / CW |
| Channels / memory management | 99 regular per band 6 scan edges per band 1 call per band 10 satellite memories Non-volatile EEPROM storage |
| Repeater shift / offset | ±0-10 MHz (2 m/70 cm)±0-100 MHz (23 cm, with UX-910 option) |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: Max 2.5 ATX: Max 11 A |
| Antenna impedance / connector | 50 ohm / 1*SO-239 + 1*N-jack (plus 1*N-jack for UX-910 option) |
| Dimensions (W*H*D) | 241*94*239 mm (9.49*3.7*9.41") |
| Weight | 4.5 Kg (9.92 lb), without UX-910 |
| Other features | CTCSS/PL. Dual 9K6 packet ports and built-in keyer. Twin RX. |
RECEIVER SECTION

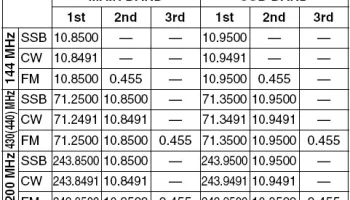

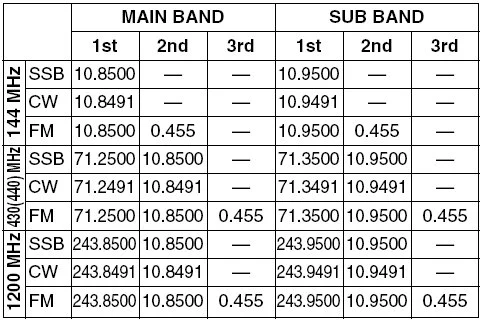

| Receiver system | Single- double- or triple conversion superheterodyne, depending on band and mode IF matrix |
|---|---|
| Sensitivity | FM: <0.18 uV (12 dB SINAD) SSB/CW: <0.11 uV (10 dB S/N) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | FM 15 KHz (-6 dB)30 KHz (-60 dB) FM-N 8 KHz (-6 dB)30 KHz (-60 dB) SSB/CW 2.3 KHz (-6 dB)4.2 KHz (-60 dB) CW-N 500 Hz (-6 KHz)1.34 KHz (-60 dB) |
| Image rejection | 2m/70cm: >60 dB23cm: >50 dB |
| AF output power / speaker | 2 W at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | Pwr 2 m:2-20 W 70 cm:2-20 W 23 cm:1-10 W(With UX-910 option) |
|---|---|
| 2 m | 2-20 W |
| 70 cm | 2-20 W |
| 23 cm | 1-10 W |
| Modulation system | FM: Variable reactance modulationSSB: Balanced modulation |
| Max FM deviation (Factory set) | FM: ±5 KHzFM-N: ±2.5 KHz |
| Spurious emissions | 2 m/70 cm: Better than -60 dB23 cm: Better than -50 dB (with UX-910 option) |
| Microphone impedance / connector | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2000-200x (Discontinued) |
|---|---|
| Additional info | — |
| AG-25 AG-35 AG-1200 AG-2400 CR-293 CT-17 FL-132 FL-133 HM-12 MB-5 MB-23 SM-20 SP-7 SP-21 UT-102 UT-106 UX-910 | Preamp, 2 m Preamp, 70 cm Preamp, 23 cm Mode-S down converter unit, 2400-2402 MHz High-stability crystal unit CI-V Level converter CW narrow filter (500 Hz), main RX CW narrow filter (500 Hz), sub RX Hand microphone with up/down switches Mobile mounting bracket Carrying handle Desktop microphone External speaker, compact External speaker, 8 ohms Voice synthesizer unit DSP unit 23 cm band unit |
