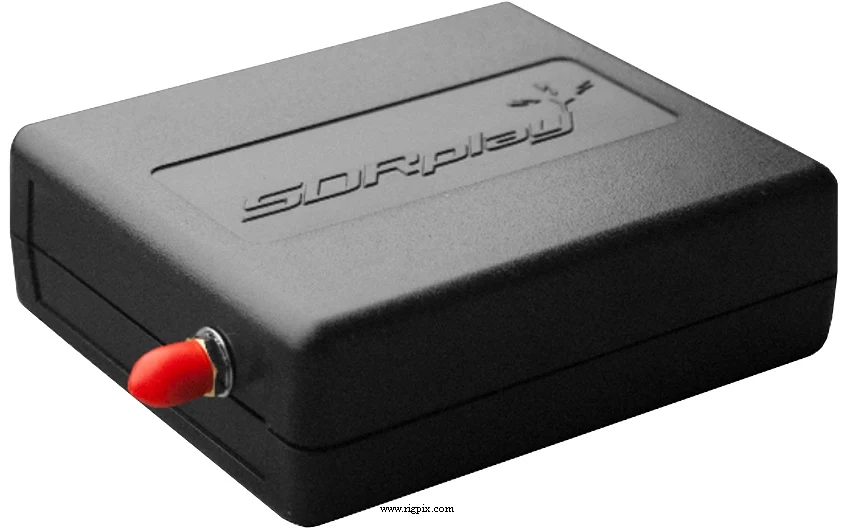

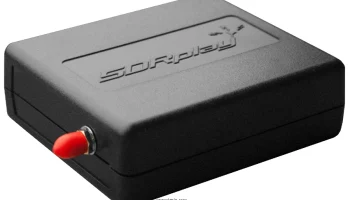

RSP1A
Источник:
GENERAL
| Type | HF/VHF/UHF 14-bit SDR receiver |
|---|---|
| Frequency range | 0.001-2000 MHz |
| Tuning steps | Depending on software |
| Frequency stability | ±0.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | Depending on software |
| Channels / memory management | Depending on software |
| Power supply | 5 VDC (Via USB 2.0 port) |
| Current drain / power consumption | Max 185 mA (Excluding bias tee) |
| Antenna impedance / connector | 50 ohm / SMA jack |
| Dimensions (W*H*D) | 80*30*95 mm (3.15*1.18*3.74") |
| Weight | 110 g (3.88 oz) |
| Other features | Eleven high-selectivity front end filters. Selectable FM, MW and DAB notch filters. Up to 10 MHz of spectrum can be monitored. 14-bit ADC. Switchable 4.7 VDC bias tee output. SDRUno software included. Other popular SDR packages are also supported. |
RECEIVER SECTION
| Receiver system | SDR |
|---|---|
| Sensitivity | AM (12 dB SINAD) 2200 m: 6.02 uV 630 m: 5.88 uV 160 m: 0.78 uV 80 m: 0.89 uV 60 m: 0.89 uV 40 m: 0.72 uV 30 m: 0.56 uV 20 m: 0.48 uV 17 m: 0.48 uV 15 m: 0.48 uV 12 m: 0.46 uV 10 m: 0.46 uV 6 m: 0.46 uV 4 m: 0.15 uV 2 m: 0.14 uV 1.25 m: 0.15 uV 70 cm: 0.14 uV 33 cm: 0.18 uV 23 cm: 0.29 uV FM (12 dB SINAD) 2200 m: 5.01 uV 630 m: 4.84 uV 160 m: 0.88 uV 80 m: 0.69 uV 60 m: 0.69 uV 40 m: 0.57 uV 30 m: 0.44 uV 20 m: 0.36 uV 17 m: 0.36 uV 15 m: 0.36 uV 12 m: 0.38 uV 10 m: 0.38 uV 6 m: 0.38 uV 4 m: 0.11 uV 2 m: 0.11 uV 1.25 m: 0.12 uV 70 cm: 0.11 uV 33 cm: 0.12 uV 23 cm: 0.14 uV SSB/CW (12 dB SINAD) 2200 m: 2.26 uV 630 m: 2.19 uV 160 m: 0.28 uV 80 m: 0.31 uV 60 m: 0.31 uV 40 m: 0.30 uV 30 m: 0.20 uV 20 m: 0.16 uV 17 m: 0.16 uV 15 m: 0.16 uV 12 m: 0.17 uV 10 m: 0.17 uV 6 m: 0.17 uV 4 m: 0.05 uV 2 m: 0.05 uV 1.25 m: 0.05 uV 70 cm: 0.05 uV 33 cm: 0.06 uV 23 cm: 0.06 uV |
| Selectivity | — |
| Image rejection | — |
| Output IQ sample rate | Up to 10.66 MSPS |
| Output IQ bandwidth | — |
| AF output power / speaker | - |
| External speaker connector | - |
MISCELLANEOUS
| Manufactured | England, 2018-202x |
|---|---|
| Additional info | Maximum recommended input power on the antenna ports: 0 dBm (10 dBm for short periods) New price, may 2023 in Sweden: SEK 1595:- New price, february 2024 in Sweden: SEK 1795:- New price, february 2024 in England: £117 |
| - | - |
