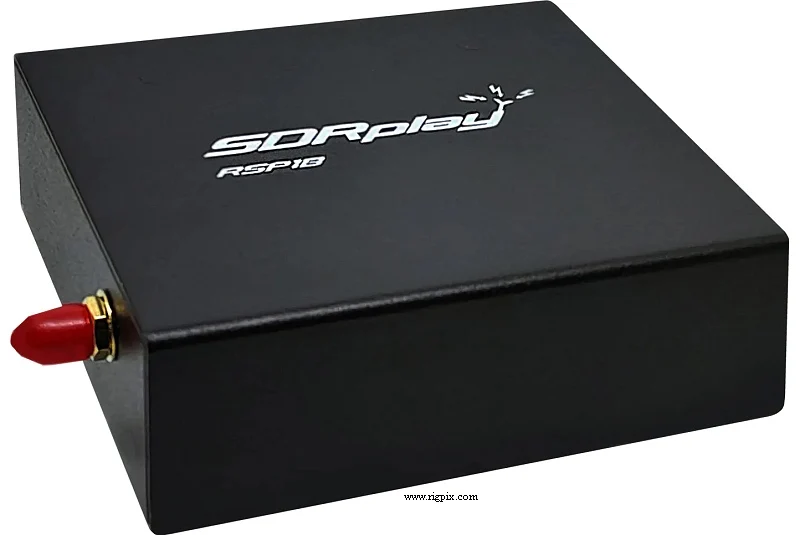

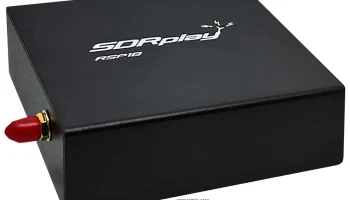

RSP1B
Источник:
GENERAL
| Type | HF/VHF/UHF 14-bit SDR receiver |
|---|---|
| Frequency range | 0.001-2000 MHz |
| Tuning steps | Depending on software |
| Frequency stability | ±0.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | Depending on software |
| Channels / memory management | Depending on software |
| Power supply | 5 VDC (Via USB 2.0 port) |
| Current drain / power consumption | Max 185 mA (Excluding bias tee) |
| Antenna impedance / connector | 50 ohm / SMA jack |
| Dimensions (W*H*D) | 94*35*98 mm (3.7*1.38*3.86") |
| Weight | 315 g (11.11 oz) |
| Other features | Ten high-selectivity front end filters. Selectable FM, MW and DAB notch filters. Up to 10 MHz of spectrum can be monitored. 14-bit ADC. Switchable 4.7 VDC bias tee output. SDRUno and SDRconnect software included. Other popular SDR packages will also be supported. |
RECEIVER SECTION
| Receiver system | SDR |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| Output IQ sample rate | 2 to 10.66 MSPS |
| Output IQ bandwidth | — |
| AF output power / speaker | - |
| External speaker connector | - |
MISCELLANEOUS
| Manufactured | England, 2024-202x |
|---|---|
| Additional info | Basically an enhanced RSP1A with significantly improved noise performance, housed in a black steel case. Maximum recommended input power on the antenna port: 0 dBm (10 dBm for short periods) New price, february 2024 in England: £106 New price, february 2024 in Sweden: SEK 2095:- |
| - | - |
