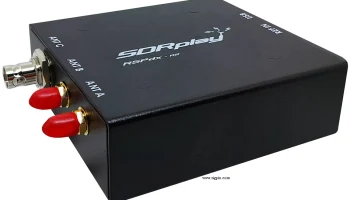

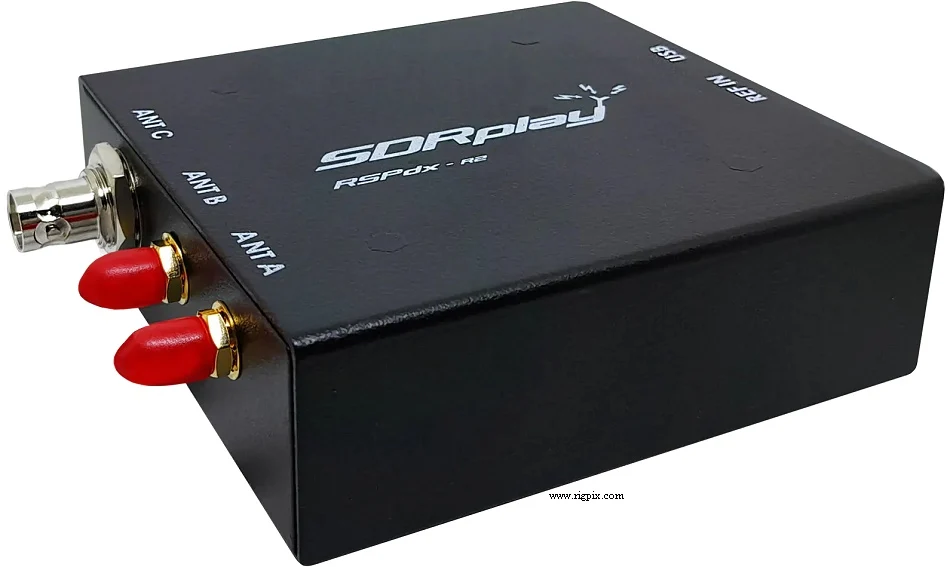

SRSPdx-R2
Источник:
GENERAL
| Type | HF/VHF/UHF 14-bit SDR receiver |
|---|---|
| Frequency range | 0.001-2000 MHz |
| Tuning steps | Depending on software |
| Frequency stability | ±0.5 ppm @ 0 to 35°C (32 to 95°F) |
| Mode | Depending on software |
| Channels / memory management | Depending on software |
| Power supply | 5 VDC (via USB 2.0 port) |
| Current drain / power consumption | 120-190 mA (Excluding bias tee) |
| Antenna impedance / connector | 50 ohm / Two SMA jacks (1 KHz to 2 GHz)50 ohm / BNC (1 KHz to 200 MHz) |
| Dimensions (W*H*D) | 94*35*113 mm (3.7*1.38*4.45") |
| Weight | 315 g (11.1 oz) |
| Other features | 14-bit ADC. Twelve high-selectivity front end filters. Selectable FM, MW and DAB notch filters. Three software selectable antenna ports. Up to 10 MHz of spectrum can be monitored and recorded. Enhanced ability to cope with strong signals. Substancially enhanced performance below 2 MHz. HDR mode for use below 2 MHz. External reference clock input (MCX jack). 4.7 VDC bias tee output on port B. SDRUno and SDRconnect software included. Other popular SDR packages are also supported. |
RECEIVER SECTION
| Receiver system | SDR |
|---|---|
| Sensitivity | — |
| Selectivity | — |
| Image rejection | — |
| Output IQ sample rate | Up to 10.66 MPS |
| Output IQ bandwidth | — |
| AF output power / speaker | No |
| External speaker connector | No |
MISCELLANEOUS
| Manufactured | England, 2024-202x |
|---|---|
| Additional info | Even more improved reception below 2 MHz over the original RSPdx. Maximum recommended input power on the antenna ports: 0 dBm (10 dBm for short periods) |
| - | - |
