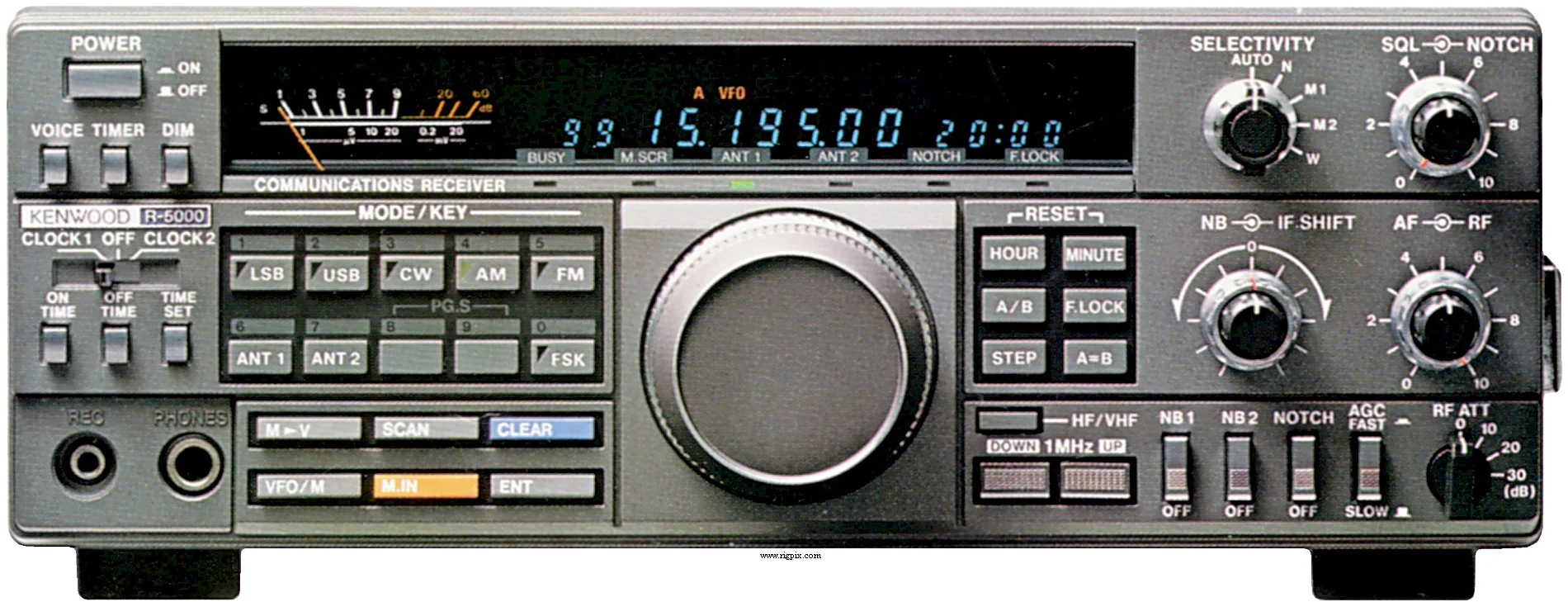

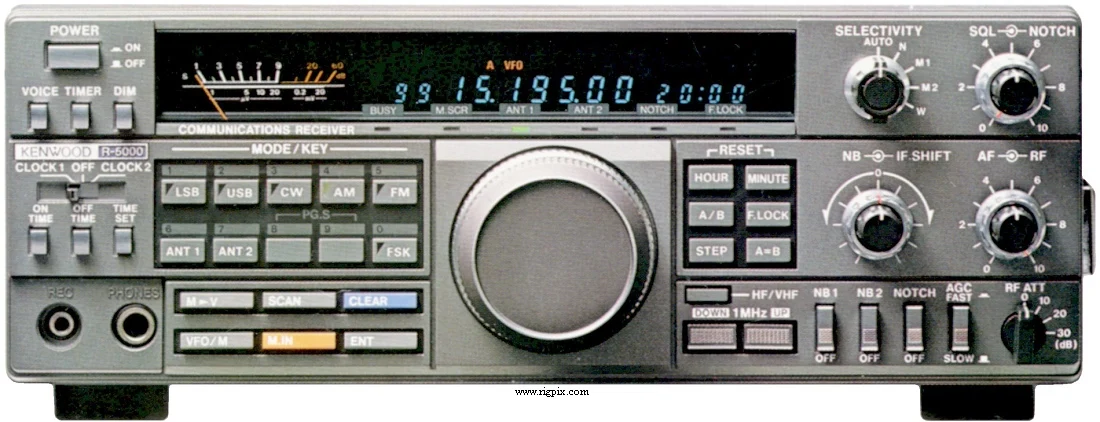

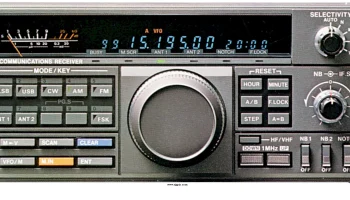

R-5000
Источник:
GENERAL
| Type | HF receiver |
|---|---|
| Frequency range | General market: 0.1-30 MHz (108-174 MHz option: VC-20) Australia: 2-30 MHz (108-174 MHz option: VC-20) West Germany: 0.15-26.2 MHz (144-146 MHz option: VC-20) |
| Tuning steps | 10 / 100 Hz, 1 / 2.5 / 5 / 10 / 20 / 50 / 100 KHz |
| Frequency stability | ±10 ppm |
| Mode | AM / FM / SSB / CW / FSK |
| Channels / memory management | 100 regular |
| Power supply | Mains: 120 / 220 / 240 VAC (3-pin IEC C14 connector)or 13.8 VDC option (DCK-2) |
| Current drain / power consumption | Max 40 W @ mains or max 2 A @ 13.8 VDC |
| Antenna impedance / connector | Ant 1: 50 ohm / SO-239 Ant 2: 50/500 ohm / Screw terminals VHF: 50 ohm / SO239 (For VC-20 option) |
| Dimensions (W*H*D) | 270*96*270 mm (10.63*3.78*10.63") |
| Weight | 5.6 Kg (12.35 lb) |
| Other features | Clock/timer. NB. IF shift. 10/20/30 dB attenuator. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne (AM/SSB/CW/FSK) 1st IF: 58.1125 MHz 2nd IF: 8.83 MHz Triple conversion superheterodyne (FM) 1st IF: 58.1125 MHz 2nd IF: 8.83 MHz 3rd IF: 455 KHz |
|---|---|
| Sensitivity | AM (1 KHz, 30% modulation) 0.1-0.15 MHz: 2.5 uV 0.15-0.5 MHz: 10 uV 0.5-1.8 MHz: 32 uV 1.8-30 MHz: 2 uV 108-123 MHz: 4 uV (With VC-20 option) 123-174 MHz: 2 uV (With VC-20 option) FM (12 dB SINAD) 1.8-30 MHz: 0.5 uV 108-123 MHz: 1 uV (With VC-20 option) 123-174 MHz: 0.5 uV (With VC-20 option) SSB/CW/FSK (10 dB S+N/N) 0.1-0.15 MHz: 2.5 uV 0.15-0.5 MHz: 1 uV 0.5-1.8 MHz: 4 uV 1.8-30 MHz: 0.25 uV 108-123 MHz: 0.5 uV (With VC-20 option) 123-174 MHz: 0.25 uV (With VC-20 option) |
| Selectivity | AM 6 KHz (-6 dB)20 KHz (-50 dB) FM 12 KHz (-6 dB)25 KHz (-50 dB) SSB 2.4 KHz (-6 dB)4.4 KHz (-60 dB) |
| Image rejection | 0.1-1.8 MHz: 60 dB 1.8-30 MHz: 80 dB 108-123 MHz: 40 dB (With VC-20 option) 123-174 MHz: 50 dB (With VC-20 option) |
| AF output power / speaker | 1.5 W at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 8-16 ohm |
MISCELLANEOUS
| Manufactured | Japan, 1986-1996 (Discontinued) |
|---|---|
| Additional info | New price 1996 in Sweden: SEK 12987:- |
| DCK-2 HS-5 HS-6 HS-7 IC-10 IF-232C MB-430 VC-20 VS-1 YK-88A-1 YK-88C YK-88CN YK-88SN | DC operation kit Communications headphones. 8 ohm Communications headphones, deluxe light-weight. 12.5 ohm Communications hgeadphones. 16 ohm Interface IC kit RS-232 interface adapter Mobile mounting bracket VHF converter unit Voice synthesizer unit AM filter. 6 KHz (-6 dB) CW filter. 500 Hz (-6 dB) CW narrow filter. 270 Hz (-6 dB) SSB narrow filter. 1.8 KHz (-6 dB) |
