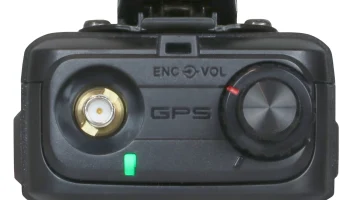

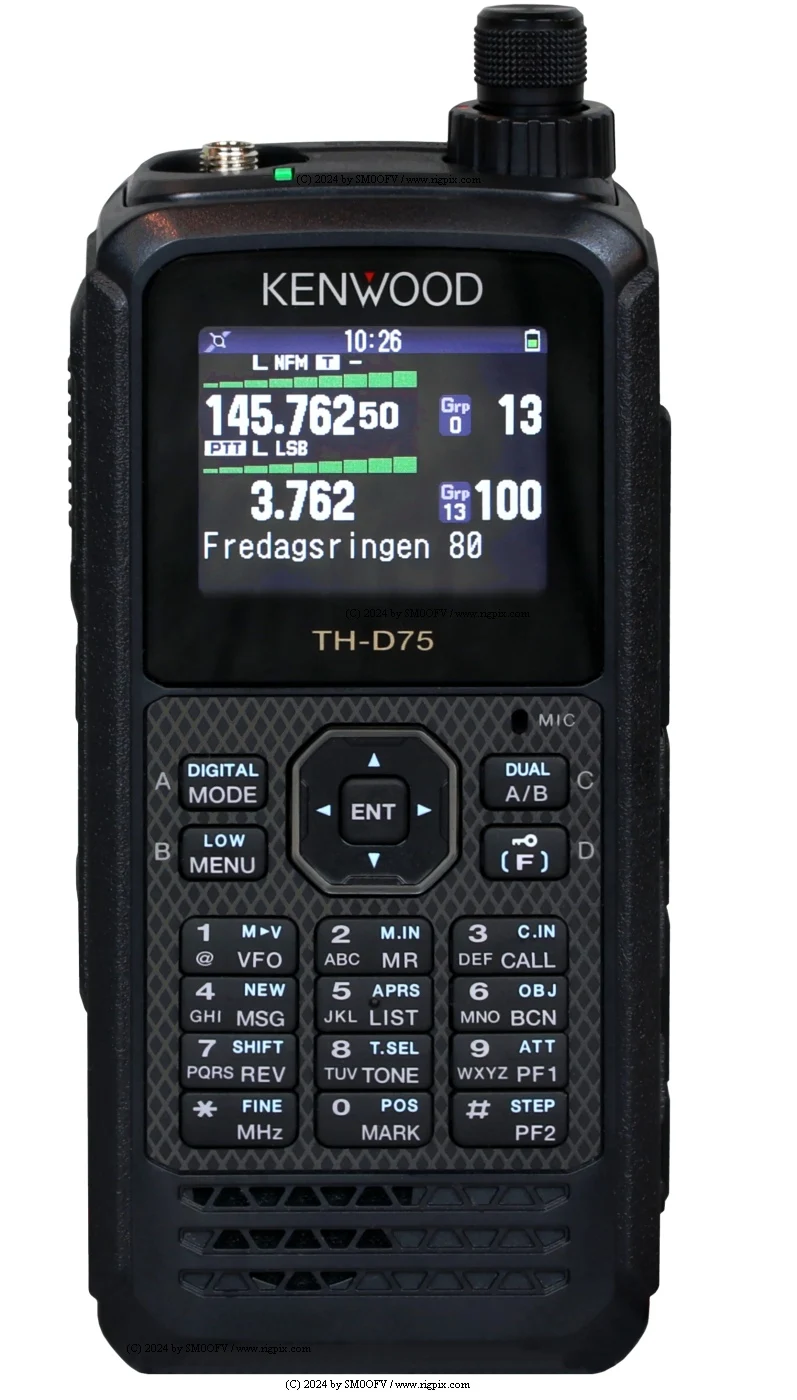

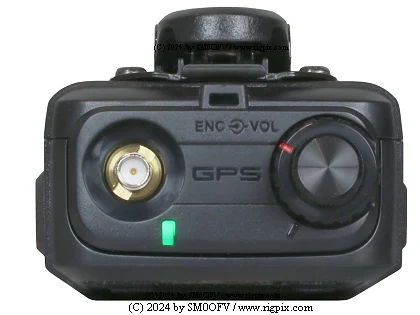

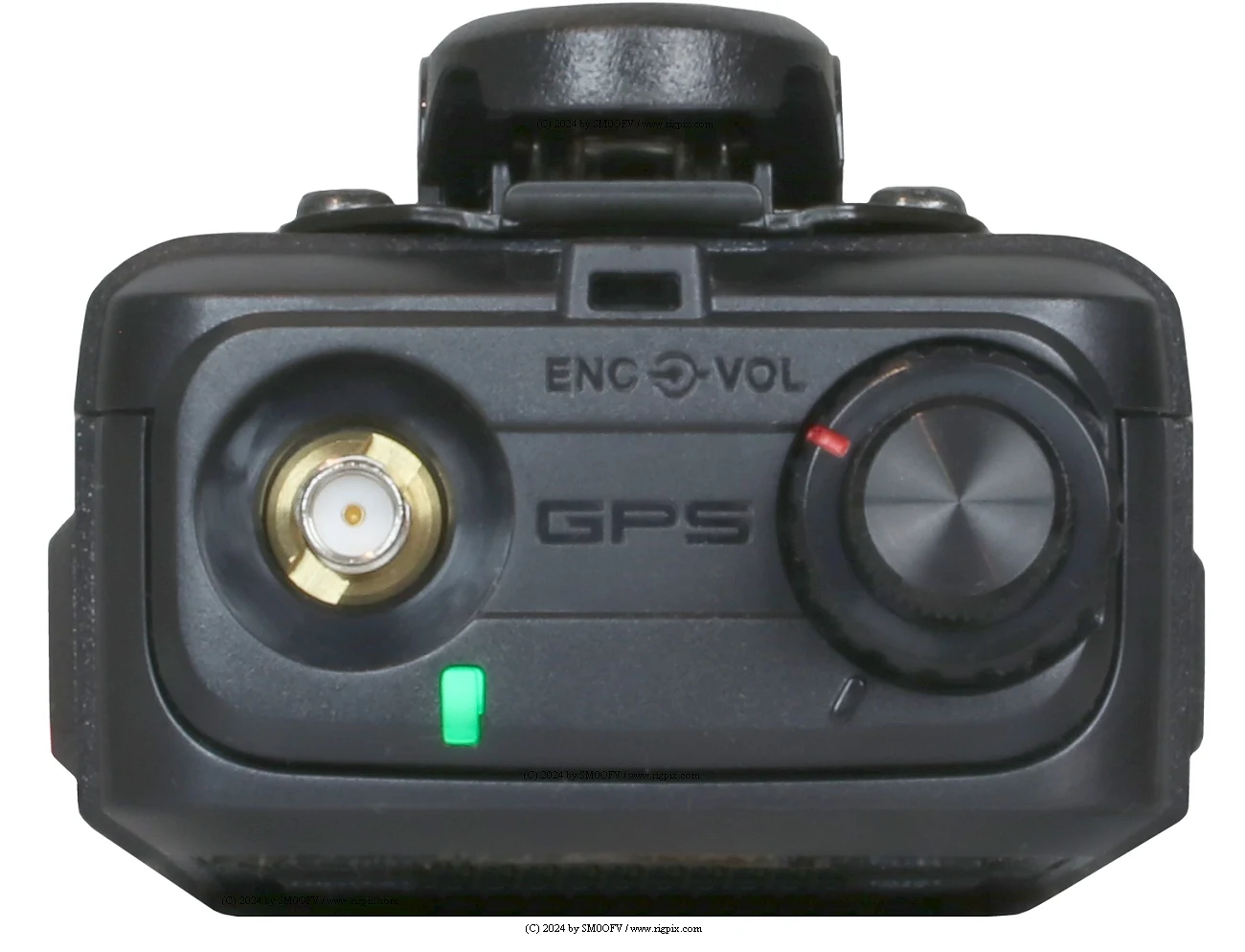

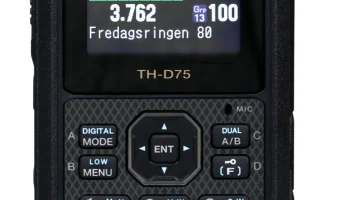

TH-D75E
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 0.1-524 MHz |
| Tuning steps | Standard steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz Fine tuning: 20 / 100 / 500 / 1000 Hz (Band B, AM/SSB/CW only) |
| Frequency stability | ±2 ppm @ -10 to +50°C (14 to 122°F) |
| Mode | TX: FM / NFM / DV (D-Star)RX: AM / FM / NFM / WFM / SSB / CW / DV (D-Star) |
| Channels / memory management | 1000 regular in 30 groups with alpha tags 100 program scan 1 priority Non-volatile storage |
| Repeater shift / offset | ±0 to 29.95 MHz in 50 KHz steps |
| Power supply | 6-9.6 VDC (Battery pack)or 11-15.9 VDC external |
| Current drain / power consumption | RX: 50-310 mATX: 0.4-2 A @ 7.4 VDC |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 56*122*33 mm (2.2*4.8*1.28"), with KNB-75LA |
| Weight | 344 g (12.13 oz), with KNB-75LA, antenna and belt clip |
| Other features | CTCSS/PL. DCS. Micro-SD card. Built-in GPS and APRS with digipeater. Built-in bar entenna for 0.1-10 MHz RX. Color TFT. Audio equalizer. Hi-performance DSP. Clock. Bluetooth class 2. Backlit keyboard. USB-C connector. D-Star reflector terminal mode. IP54/55 compliant. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne (FM / WFM / DV) 1st IF: 57.15 MHz (Band A) — 58.05 MHz (Band B) 2nd IF: 450 KHz Triple conversion superheterodyne (AM / SSB / CW) 1st IF: 57.15 MHz (Band A) — 58.05 MHz (Band B) 2nd IF: 450 KHz 3rd IF: 10.8 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.3-0.52 MHz: 4 uV 0.52-1.8 MHz: 1.59 uV 1.8-54 MHz: 0.63 uV 54-76 MHz: 1.12 uV 118-174 MHz: 0.5 uV 200-250 MHz: 0.63 uV 382-412 MHz: 1.12 uV 415-524 MHz: 1.12 uV FM (12 dB SINAD) 28-54 MHz: 0.32 uV 54-76 MHz: 0.56 uV 118-144 MHz: 0.36 uV 144-148 MHz: 0.18 uV (Band A), 0.19 uV (Band B) 148-175 MHz: 0.36 uV 200-222 MHz: 0.36 uV 225-250 MHz: 0.36 uV 382-400 MHz: 0.5 uV 400-412 MHz: 0.36 uV 415-430 MHz: 0.36 uV 430-450 MHz: 0.18 uV (Band A), 0.2 uV (Band B) 450-490 MHz: 0.36 uV 490-524 MHz: 0.63 uV NFM (12 dB SINAD) 144-148 MHz: 0.22 uV (Band A), 0.24 uV (Band B) 430-450 MHz: 0.22 uV (Band A), 0.25 uV (Band B) WFM (12 dB SINAD) 76-95 MHz: 1.59 uV 95-108 MHz: 2 uV SSB (10 dB S/N) 1.8-54 MHz: 0.4 uV 54-76 MHz: 0.79 uV 144-148 MHz: 0.16 uV 222-225 MHz: 0.2 uV 430-450 MHz: 0.16 uV DV (PN9/GMSK, 4.8 kbps, BER 1%) 144-148 MHz: 0.2 uV 430-450 MHz: 0.22 uV |
| Squelch sensitivity | Band A 0.18 uV (Treshold) Band B 0.25 uV (Treshold) |
| Selectivity | FM: 12 KHz (-6 dB)30 KHz (-50 dB) |
| Image rejection | 60 dB |
| AF output power / speaker | 400 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLowELow 2 m:5 W2 W500 mW50 mW 70 cm:5 W2 W500 mW50 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | FM: Reactance modulation DV: GMSK reactance modulation |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -60 dBc (Hi-Mid settings) |
| Microphone impedance/connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2023-202x |
|---|---|
| Additional info | This is basically an updated TH-D74E. |
| ARFC-D75 EMC-3A EMC-11 EMC-12 HMC-3 KBP-9 KHS-21 KHS-35F KMC-45D KNB-75LA KSC-25LS MCP-D75 PG-2W PG-3J | Frequency control software Clip microphone with earphone Clip microphone with earphone Clip microphone with earphone Headset with VOX Battery case (Six LR03 / AAA alkaline batteries) Headset Headset Speaker-microphone Li-Ion battery pack. 7.4 V, 1820 mAh Rapid charger Memory control software DC cable Cigarette lighter cord with noise filter |
