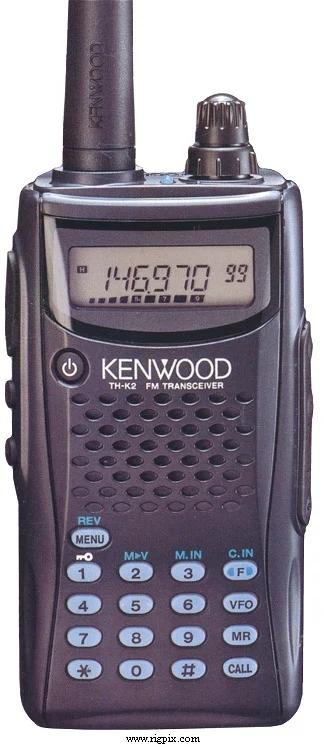

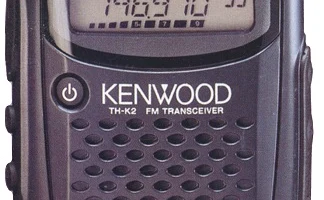

TH-K2AT
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | TX: 144-148 MHz RX: 136-174 MHz |
| Tuning steps | — |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 100 regular with alpha tags (Six characters) |
| Repeater shift/offset | ±? |
| Power supply | 6-9 VDC (NiMH battery pack) or 12-16 VDC external |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*110*29 mm (2.28*4.33*1.14") |
| Weight | 355 g (12.52 oz), with PB-43N and antenna |
| Other features | CTCSS/PL and DCS. VOX. PC-programmable. Backlit DTMF keyboard. Weather alert. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 38.85 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | 10 KHz (-6 dB)28 KHz (-40 dB) |
| Image rejection | — |
| AF output power / speaker | 400 mW at 10% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:5 W1.5 W500 mW |
|---|---|
| 2 m | 5 W |
| Modulation system | Reactance modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2003-200x (Discontinued) |
|---|---|
| Additional info | — |
| BC-21 BT-14 EMC-3 HMC-3 KHS-21 KSC-24 MCP-1A PB-43N PG-2W PG-3J PG-4Y SC-54 SMC-32 SMC-33 SMC-34 | Wall charger. 13.8 VDC, 150 mA Battery case (Four LR6 / AA cells) Clip microphone with earphone Headset with VOX Headset Rapid charger Memory control software NiMh battery pack. 7.2 V, 1100 mAh DC cable Cigarette lighter cable with noise filter Programming interface cable (RS-232C, DB9) Soft case with swivel belt clip Speaker-microphone Speaker-microphone with three keys Speaker-microphone with three keys and volume control |
