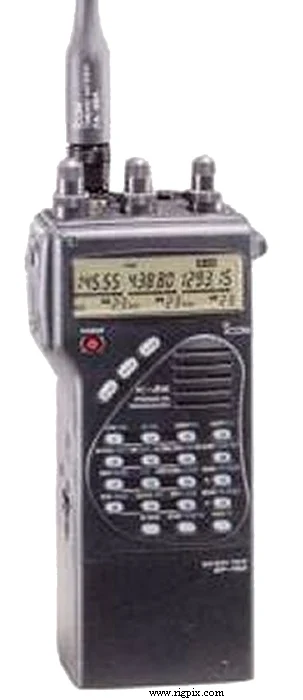

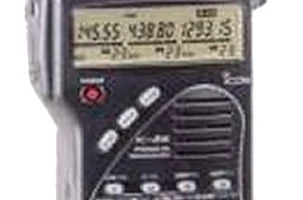

IC-Δ1A / IC-Delta 1A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | TX: 144-148 / 440-450 / 1240-1300 MHz RX: 118-174 / 350-470 / 800-950 / 1240-1300 MHz |
| Tuning steps | 2 m/70 cm: 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz 23 cm: 10 / 20 / 25 / 50 KHz |
| Frequency stability | 2 m/70 cm: Max ±5 ppm @ 0 to +50°C (+32 to +122°F) 23 cm: Max ±3 ppm @ 0 to +50°C (+32 to +122°F) |
| Mode | FM |
| Channels / memory management | 23 regular per band 2 scan edge per band 1 call per band RAM storage with rechargeable battery backup |
| Repeater shift / offset | ±0 to 60 MHz in selected step size |
| Power supply | 7.2-12 VDC (Depending on battery pack)or 6-15 VDC external |
| Current drain / power consumption | RX: 20-590 mATX: 0.7-1.9 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*145*49 mm (2.3*5.7*1.9"), with BP-102 |
| Weight | 635 g (1.4 lb), with BP-102 |
| Other features | DTMF. Clock. Timer. Triple independent receivers. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.85 MHz (2 m) 1st IF: 35.8 MHz (70 cm) 1st IF: 72.2 MHz (23 cm) 2nd IF: 455 KHz — Ceramic filter: CFUM455E |
|---|---|
| Sensitivity | 2 m/70 cm: <0.16 uV (12 dB SINAD)23 cm: <0.2 uV (12 dB SINAD) |
| Squelch sensitivity | 2 m / 70 cm: Less than 0.125 uV (Threshold) 23 cm: Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:5 W3.5 W500 mW 70 cm:5 W3.5 W500 mW 23 cm:1 W200 mW200 mW Indicated high power is @ 13.5 VDC |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| 23 cm | 1 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | 2 m/70 cm: Better than -60 dB23 cm: Better than -40 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1992-199x (Discontinued) |
|---|---|
| Additional info | — |
| AD-22 AD-27 BC-77A BC-77D BC-77E BC-77V BC-79 BP-100 BP-101 BP-102 BP-103 CP-13 HM-65 HM-70 HS-60 MB-24 MB-25 OPC-288 UT-70 UT-71 | Battery charge adapter Battery pack adapter Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103 Wall charger. 12 VDC, 100 mA (EU 220 VAC). For BP-101 and BP-103 Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103 Wall charger. 12 VDC, 100 mA. For BP-101 and BP-103 Desktop rapid charger for BP-101/102/103. Requires AD-27 Battery case, for six LR6/AA alkaline or NiCd batteries NiCd battery pack. 7.2 V, 700 mAh NiCd battery pack. 7.2 V, 1200 mAh NiCd battery pack. 12 V, 600 mAh Cigarette lighter cable with noise filter Speaker-microphone with earphone jack Speaker-microphone Headset with VOX and PTT Mounting bracket. Hanger type Mounting bracket. Wall type DC power cable Tone squelch (Triband capable) and tone encoder unit Programmable tone encoder unit (Standard in the US version) |
