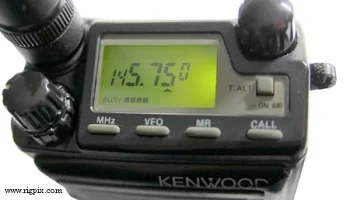

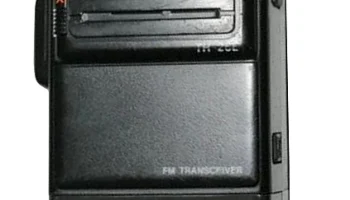

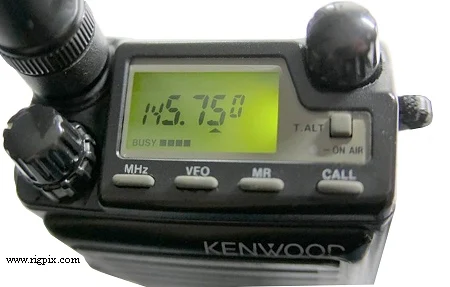

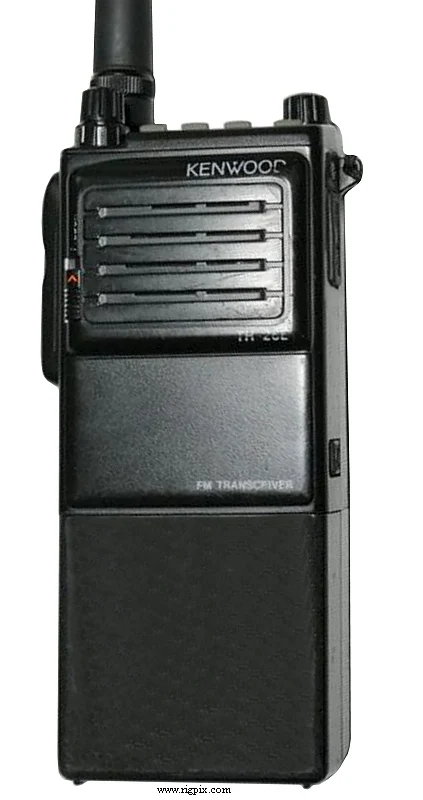

TH-26E
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 144-146 MHz |
| Tuning steps | 5 / 10 / 15 / 20 / 12.5 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 20 regular Channel 11-20 can also store odd splits 1 call RAM storage with lithium battery backup |
| Repeater shift / offset | ±600 KHz |
| Power supply | 5-12 VDC (Depending on battery pack)or 6-16 VDC external (Barrel connector, center positive) |
| Current drain / power consumption | RX: 55 mA (Squelched)TX: 0.12-1.5 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*135*30 mm (2.28*5.32*1.18") |
| Weight | 380 g (13.4 oz), with PB-10, antenna and handstrap |
| Other features | Backlit display. 1750 Hz tone call. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 16.9 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)28 KHz (-40 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm |
| External speaker connector | 2.5 mm |
TRANSMITTER SECTION
| RF output power | HighLowEL 2 m:2.5-5 W500 mW20 mW The high power setting depends on voltage / battery pack. |
|---|---|
| 2 m | 2.5-5 W |
| Modulation system | Reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 3-conductor (3.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1989-1990 (Discontinued) |
|---|---|
| Additional info | — |
| BC-2 BC-9 BC-10 BC-11 BC-12 BM-1 BT-6 BT-7 DTU-1 HMC-2 HS-7 HS-8 PB-5 PB-6 PB-7 PB-8 PB-10 PB-11 PG-2W PG-3F RA-3 SC-24 SC-25 SC-26 SMC-31 SMC-32 SMC-33 WR-1 | Battery charger, for PB-10 only Wall charger. For PB-6 and PB-7 Compact charger Rapid charger Wall charger, for PB-10 only Bottom cover Battery case. Six R6 / AA batteries Battery case. Four R6 / AA batteries DTMF unit Headset with VOX/PTT Micro headphones Micro headphone NiCd battery pack. 7.2 V, 200 mAh NiCd battery pack. 7.2 V, 600 mAh NiCd battery pack. 7.2 V, 1100 mAh NiCd battery pack. 12 V, 600 mAh NiCd battery pack. 7.2 V, 600 mAh NiCd battery pack. 6 V, 1200 mAh or 12 V, 600 mAh (Selectable) DC power cable Cigarette lighter power cable with filter Telescopic antenna for 2 m Soft case Soft case Soft case Speaker-microphone Speaker-microphone Remote control speaker-microphone Water resistant bag |
