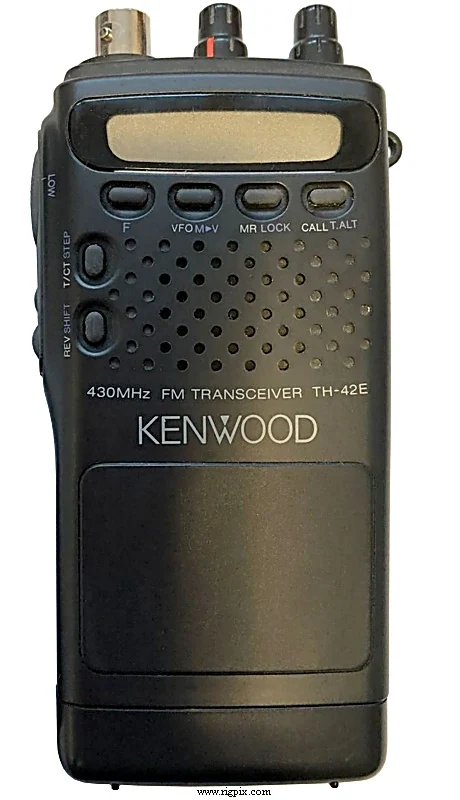

TH-42E
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Europe TX: 430-440 MHz RX: 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±? ppm |
| Mode | FM |
| Channels / memory management | 40 regular 1 call Non-volatile EEPROM storage |
| Repeater shift / offset | ±0 to 99.95 MHz in 50 KHz steps(±1.6 MHz and -7.6 MHz defaults) |
| Power supply | 4-15 VDC (Depending on battery pack)or 5-16 VDC external |
| Current drain / power consumption | RX: 45 mA (Squelched)TX: 0.25-1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 56*116*24 mm (2.2*4.57*0.95") |
| Weight | 290 g (10.23 oz), with PB-32, antenna and belt hook |
| Other features | CTCSS/PL encoder. 1750 Hz tone call. Backlit display. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.05 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)28 KHz (-40 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm |
| External speaker connector | 2.5 mm |
TRANSMITTER SECTION
| RF output power | HighLowEL 70 cm:2.5-5 W500 mW30 mW The high power setting depends on voltage / battery pack. |
|---|---|
| 70 cm | 2.5-5 W |
| Modulation system | Reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 3-conductor (3.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1994-199x (Discontinued) |
|---|---|
| Additional info | New price 1995 in Sweden: SEK 3693:- |
| BC-17 BH-6 BT-9 BT-32 HB-2 KSC-14 PG-2W PG-3J SC-37 SC-38 SC-39 SC-40 TSU-8 WR-2 | Wall charger Swivel mount Battery case. Four R6/AA batteries Battery case. Five R6/AA batteries Hand strap Rapid charger DC cable Filtered cigarette lighter cable Soft case. For use with PB-30 and PB-32 Soft case. For use with PB-30 anbd BT-9 Soft case. For use with PB-33 anbd PB-34 Soft case with shoulder belt CTCSS/PL decoder unit Water resistant bag |
