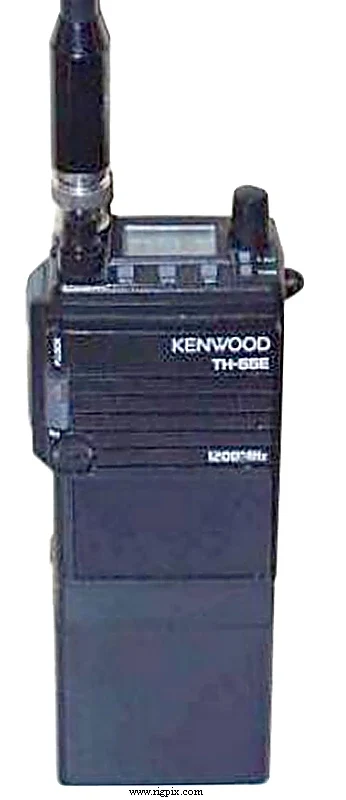

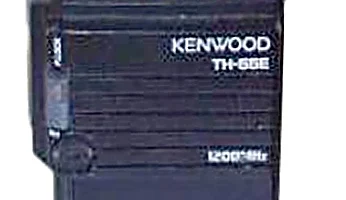

TH-55E
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Europe TX: 1258-1300 MHz RX: 1258-1300 MHz |
| Tuning steps | 12.5 / 25 KHz |
| Frequency stability | ±3 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 14 regular Channel 13 and 14 can also store odd splits RAM storage with lithium battery backup |
| Repeater shift / offset | +36 MHz and -6 MHz |
| Power supply | 5.8-12 VDC (Depending on battery pack)or 5.8-16 VDC external |
| Current drain / power consumption | RX: 17-100 mATX: 0.6-1 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 58*157*29 mm (2.28*6.18*1.14") |
| Weight | 450 g (15.87 oz) |
| Other features | RIT (±5 KHz). Backlit display. 1750 Hz tone call. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 59.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.25 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)32 KHz (-40 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm |
| External speaker connector | 2.5 mm |
TRANSMITTER SECTION
| RF output power | HighLow 23 cm:0.8-1 W100 mW NB! The high power setting depends on voltage / battery pack. |
|---|---|
| 23 cm | 0.8-1 W |
| Modulation system | Reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -50 dB |
| Microphone impedance / connector | 2 Kohm / 3-conductor (3.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1988-1989 (Discontinued) |
|---|---|
| Additional info | — |
| BC-9 BC-10 BC-11 BT-6 DC-1 with PG-2V DC-1 with PG-3E HMC-2 HS-7 HS-8 PB-5 PB-6 PB-7 PB-8 SC-17 SC-18 SC-19 SMC-31 WR-1 | Wall charger. For PB-6 and PB-7 Compact charger Rapid charger Battery case. Six R6 / AA batteries DC adapter and cable DC adapter and cable Headset with VOX/PTT Micro headphones Micro headphone NiCd battery pack. 7.2 V, 200 mAh NiCd battery pack. 7.2 V, 600 mAh NiCd battery pack. 7.2 V, 1100 mAh NiCd battery pack. 12 V, 600 mAh Soft case. For use with PB-5 Soft case. For use with PB-6 and BT-6 Soft case. For use with PB-7, PB-8 and PB-9 Speaker-microphone Water resistant bag |
