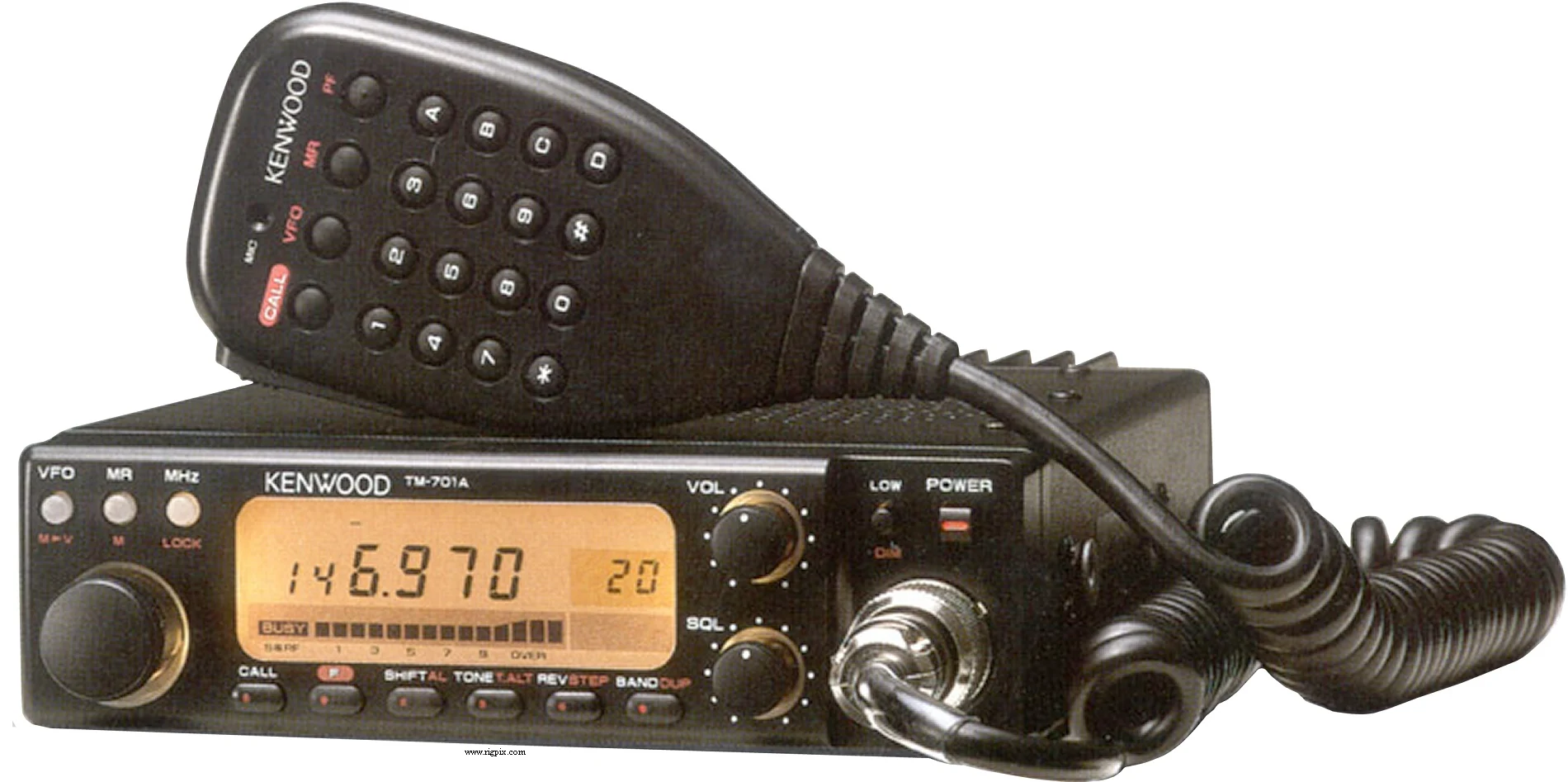

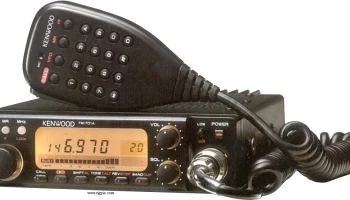

TM-701A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 438-450 MHz RX: 144-148 / 438-450 MHz General market TX: 144-148 / 430-440 MHz RX: 144-148 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | FM |
| Channels / memory management | 20 regular of which #1 functions as priority channel) 1 call 2 band scan pairs (1 per band) 4 odd split RAM storage with lithium battery backup |
| Repeater shift / offset | 2 m: ±600 KHz70 cm: ±5 MHz |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: Less than 600 mA (No signal)TX: Less than 6.9 A |
| Antenna impedance / connector | 50 ohm / Two? (On pigtails) |
| Dimensions (W*H*D) | 140*40*200 mm (5.51*1.58*7.87") |
| Weight | 1.4 Kg (3.09 lb) |
| Other features | 1750 Hz repeater tone. CTCSS/PL encoder. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 30.825 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 12 KHz (6 dB SINAD)24 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 2 W at 5% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 8 ohm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:25 W5 W 70 cm:25 W5 W |
|---|---|
| 2 m | 25 W |
| 70 cm | 25 W |
| Modulation system | Reactance modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 1989-19xx (Discontinued) |
|---|---|
| Additional info | — |
| IF-20 MA-700 MB-201 MC-44 MC-44DM MC-44DME MC-44E MC-55 MC-60A MC-80 MC-85 PG-2N PG-3B PG-4H PG-4J PS-31 PS-50 PS-430 RC-10 RC-20 SP-41 SP-50B SP-430 TSU-6 | Interface unit Dual band mobile antenna with duplexer Mobile mounting bracket Multifunction microphone Multifunction microphone with autopatch Multifunction microphone with autopatch (Europe) Multifunction microphone (Europe) Mobile microphone Desk microphone with up/down buttons Omnidirectional desk microphone with up/down buttons Unidirectional desk microphone with up/down buttons DC power cable DC line noise filter Interface connecting cable Extension cable kit Power supply. 13.8 VDC, 20 A Power supply. 13.8 VDC, 20 A Power supply. 13.8 VDC, 10 A (20 A peak) Remote controller / handset Remote controller / panel Mobile speaker. 4 ohm Mobile speaker. 8 ohm External speaker CTCSS/PL decoder unit |
