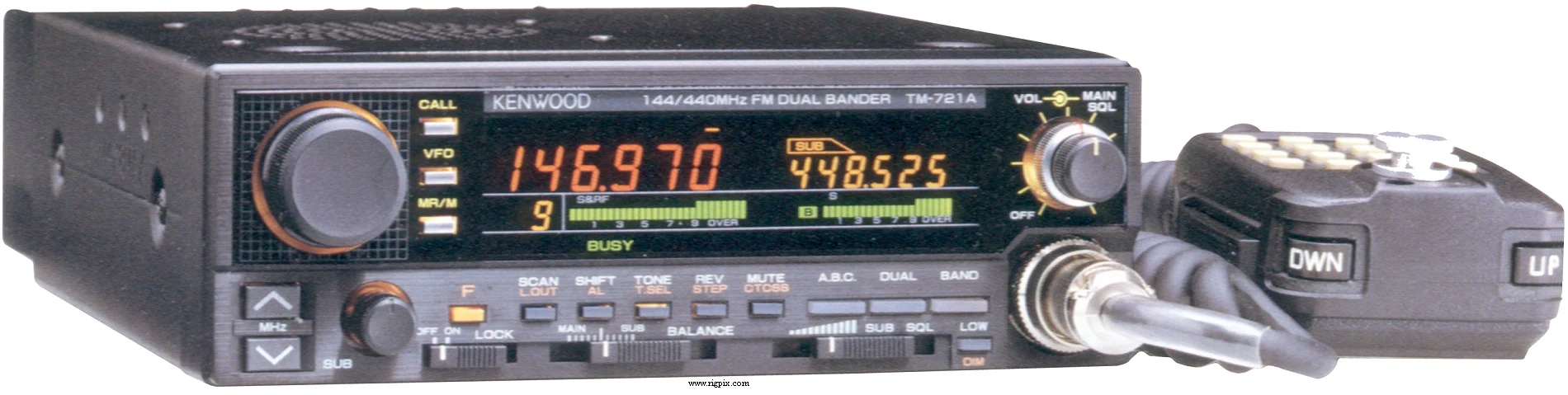

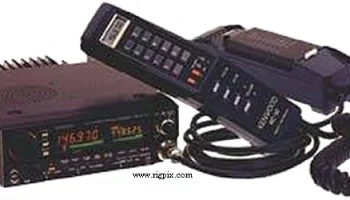

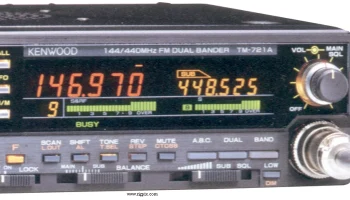

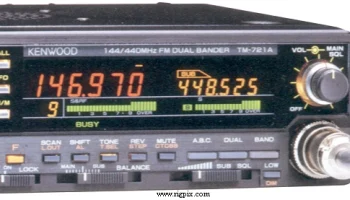

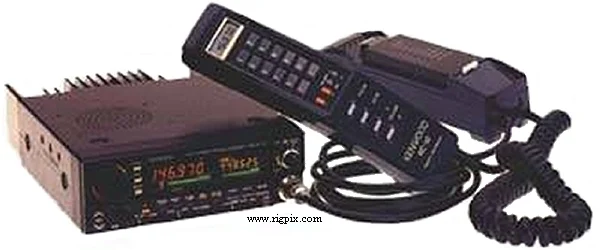

TM-721A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 438-450 MHz RX: 144-148 / 438-450 MHz Other markets TX: 144-148 / 430-440 MHz RX: 144-148 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | FM |
| Channels / memory management | 14 regular (0-d) of which #1 functions as priority channel 1 call 2 band edge search limits 2 odd repeater split RAM storage with lithium battery backup |
| Repeater shift / offset | 2 m: ±600 KHz70 cm: ±5 MHz |
| Power supply | 13.8 VDC ±15% |
| Current drain / power consumption | RX: Less than 600 mA (No signal)TX: Less than 9.5 A |
| Antenna impedance / connector | 50 ohm / One N-jack and one SO-239 |
| Dimensions (W*H*D) | 150*50*219 mm (5.91*1.97*8.62") |
| Weight | 1.8 Kg (3.97 lb) |
| Other features | CTCSS/PL encoder. Twin RX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne, USA 1st IF: 16.9 MHz (2 m) — 21.6 MHz (70 cm) 2nd IF: 455 KHz Double conversion superheterodyne, Other markets 1st IF: 10.7 MHz (2 m) — 30.825 MHz (70 cm) 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 2 m: 0.2 uV (12 dB SINAD) 70 cm: 0.16 uV (12 dB SINAD) |
| Squelch sensitivity | 0.09 uV (Threshold) |
| Noise figure | — |
| Selectivity | 12 KHz (-6 dB)24 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 2 W at 5% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:45 W5 W 70 cm:35 W5 W |
|---|---|
| 2 m | 45 W |
| 70 cm | 35 W |
| Modulation system | Reactance modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 500-600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 1988-19xx (Discontinued) |
|---|---|
| Additional info | — |
| MA-700 MB-11 MC-48B MC-55 MC-60A MC-80 MC-85 PG-2N PG-3B PS-50 PS-430 RC-10 SP-41 SP-50B SP-430 SW-100B SW-200B TSU-6 | Dual band mobile antenna with duplexer Mobile mounting bracket Hand microphone with up/down and DTMF keypad Mobile microphone with up/down buttons Desk microphone with up/down and lock buttons Desk microphone with up/down and lock buttons High class electret desk microphone DC power cable DC line noise filter Heavy duty DC power supply DC power supply Remote controller with DTMF/autopatch Mobile speaker, 4 ohm Mobile speaker, 8 ohm External speaker Compact SWR/Power/Volt meter, 140-450 MHz SWR/power meter. Peak or RMS. 140-450 MHz CTCSS/PL tone decoder unit |
