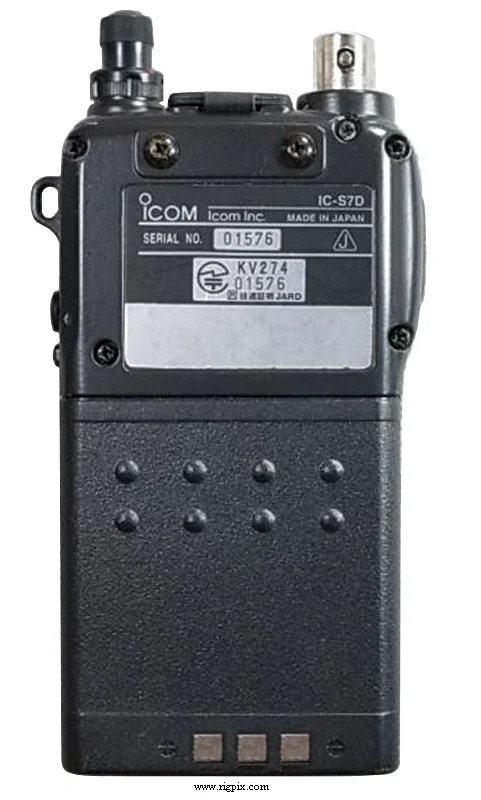

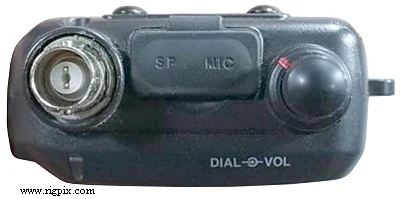

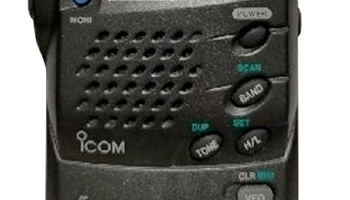

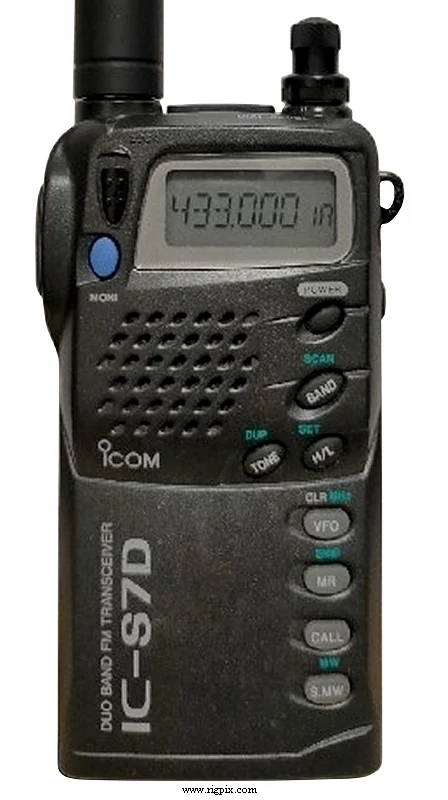

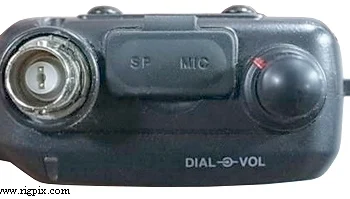

IC-S7D
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Japanese domestic market TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | FM |
| Channels / memory management | 60 regular 4 scan edge pairs 1 call |
| Repeater shift / offset | Programmable |
| Power supply | 4.8-9.6 VDC (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 16-190 mATX: 0.6-1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*110*27 mm (2.24*4.33*1.06") |
| Weight | 285 g (10.05 oz) |
| Other features | CTCSS/PL. Voltage meter. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.15 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | -16 dBu (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 15 KHz (-9 dB)30 KHz (-50 dB) |
| Image rejection | — |
| AF output power / speaker | 500 mW at ?% distortion / 8 ohm |
| External speaker connector | TRS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | High@ 13.8VHigh@ 6VLow 2 m:6 W2 W500 mW 70 cm:6 W1.5 W500 mW |
|---|---|
| 2 m | 6 W |
| 70 cm | 6 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1998-199x (Discontinued) |
|---|---|
| Additional info | — |
| AD-56A AD-56B BC-74J BC-119 BC-123 BP-170 BP-171 BP-172 BP-173 CP-12L HM-54 HM-74 HM-75A HS-85 LC-136 LC-137 MB-30 OPC-254L SP-13 | Battery pack charger adapter Battery pack charger adapter Wall charger. For Japan 100 VAC Desktop rapid charger AC adapter. 12 VDC, 1 A. For Japan 100 VAC Battery case. Four R6/AA alkaline or NiCd cells NiCd battery pack. 4.8 V, 700 mAh NiCd battery pack. 4.8 V, 950 mAh NiCd battery pack. 9.6 V, 650 mAh Cigarette lighter cable with noise filter. 12 V output Speaker-microphone Speaker-microphone Speaker-microphone Handsfree headset with PTT and VOX Carrying case. For use with BP-170 / 171 / 172 Carrying case. For use with BP-173 Mobile bracket DC power cable Earphone |
