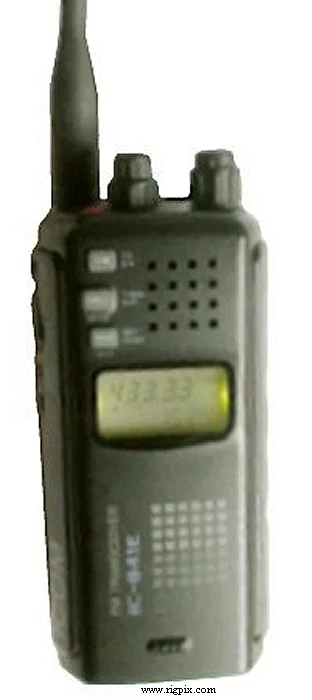

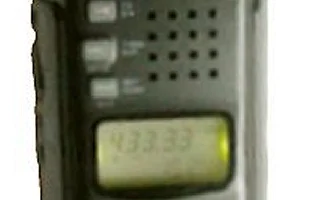

IC-S41E
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | TX: 430-440 MHz RX: 108-174 / 400-490 / 800-950 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±10 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | FM |
| Channels / memory management | 100 regular 6 scan edge pairs 1 call 1 repeater Priority watch |
| Repeater shift / offset | ± |
| Power supply | 6-12 VDC (Depending on battery pack)or 4-16 VDC external |
| Current drain / power consumption | RX:? mATX:? A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 54*111*36 mm (2.1*4.4*1.4") |
| Weight | 315 g (11.1 oz) |
| Other features | CTCSS/PL with tone scan (Option). 1750 Hz tone burst. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | — |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | 300 mW at 10% distortion / 8 ohm |
| External speaker connector | 3.5 mm, 8 ohm |
TRANSMITTER SECTION
| RF output power | High@ 13.5VLow3@ 13.5VLow2Low1E Low 70 cm:6 W4 W3 W2 W15 mW |
|---|---|
| 70 cm | 6 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 2 Kohm / ?-pin (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1993-199x (Discontinued) |
|---|---|
| Additional info | New price 1994 in Sweden: SEK 4295:- |
| AD-44A BC-74A BC-74D BC-74E BC-74V BC-79 BP-151 BP-152 BP-153 BP-159 CP-12L HM-46 HM-54 HM-55A HM-75A HS-51 LC-109 LC-110 LC-111 MB-30 OPC-254L SP-13 UT-81 | Battery pack adapter Wall charger Wall charger Wall charger Wall charger Desktop charger NiCd battery pack. 6 V, 800 mAh NiCd battery pack. 6 V, 1100 mAh NiCd battery pack. 12 V, 600 mAh Battery case. Four R6/AA alkaline or NiCd cells Cigarette lighter cable with noise filter Speaker-microphone Speaker-microphone Speaker-microphone with DTMF keyboard Speaker-microphone Headset with PTT and VOX Carrying case. For use with BP-151 and BP-159 Carrying case. For use with BP-153 Carrying case. For use with BP-152 Mobile bracket DC power cable Earphone Tone squelch unit (CTCSS/PL encoder/decoder) |
