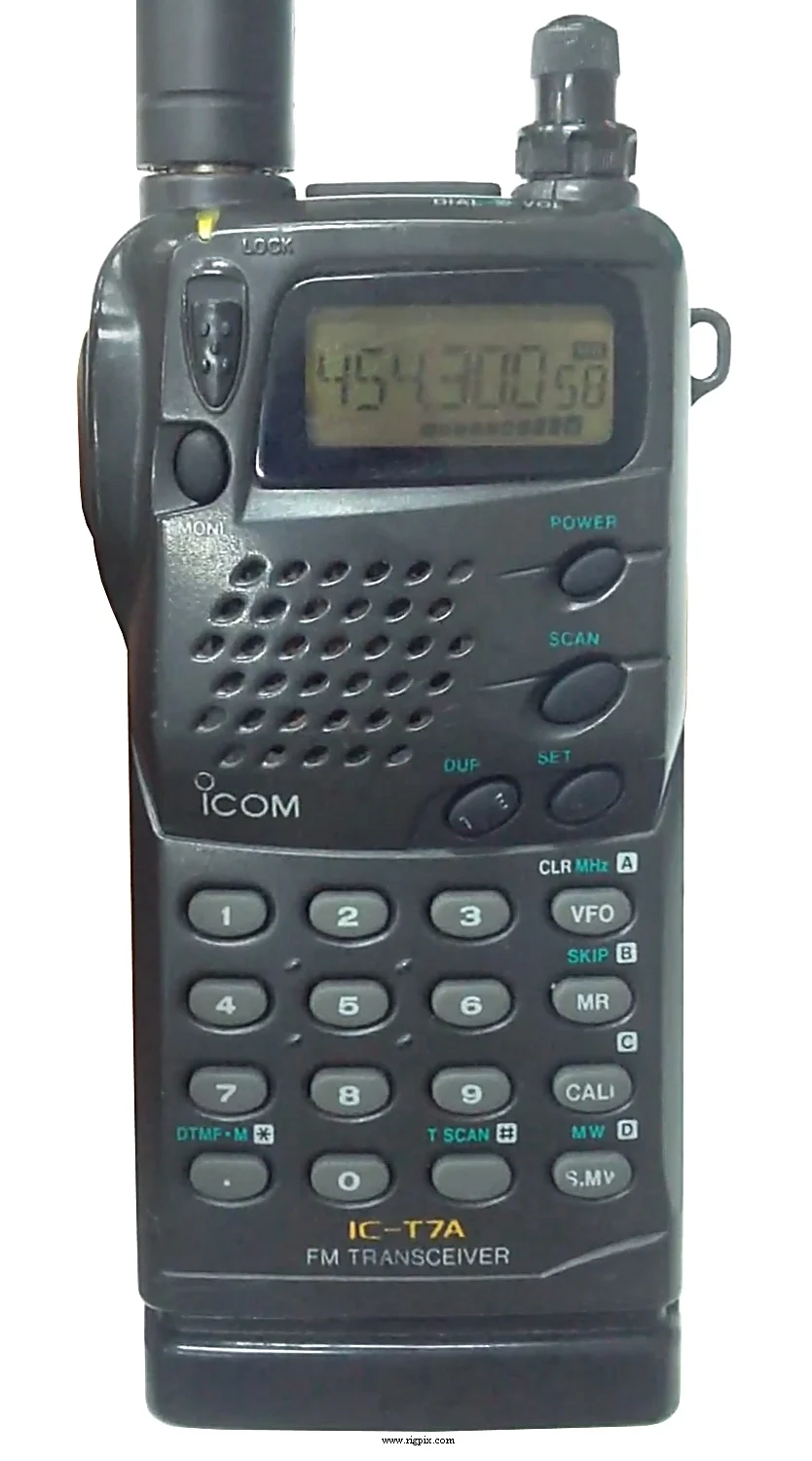

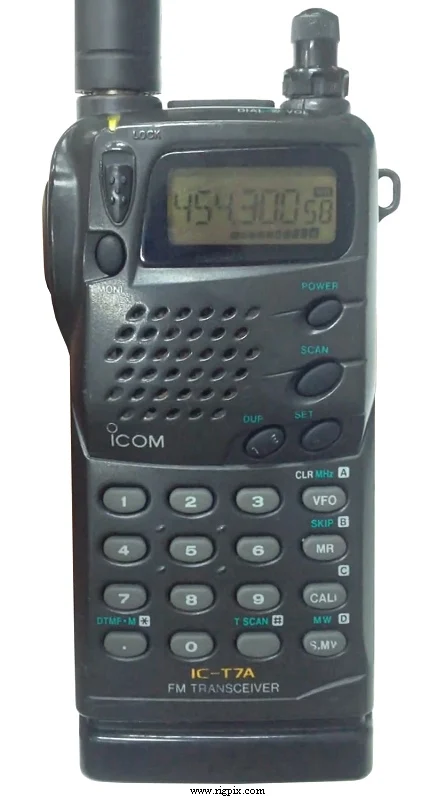

IC-T7A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 144-148 / 440-450 MHz RX: 118-950 MHz (Modification may be required) |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 60 regular 4 scan edge pairs 2 call |
| Repeater shift / offset | Programmable |
| Power supply | 4.8-9.6 VDC (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 16-150 mATX: 0.6-1.3 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*122*29 mm (2.24*4.8*1.14") |
| Weight | 320 g (11.3 oz), with BP-180 |
| Other features | CTCSS/PL with tone scan. Voltmeter. DTMF. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.15 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | VHF: 60 dBUHF: 50 dB |
| AF output power / speaker | 250 mW at 10% distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | High@ 9.6VHigh@ 7.2VLow 2 m:4 W3 W500 mW 70 cm:2.8 W1.6 W500 mW |
|---|---|
| 2 m | 4 W |
| 70 cm | 2.8 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 2 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1995-199x (Discontinued) |
|---|---|
| Additional info | — |
| AD-56 BC-79 BC-110A BC-110D BC-110V BP-170 BP-171 BP-172 BP-173 BP-180 CP-12L CS-T7 HM-46 HM-54 HM-75A HS-85 LC-136 LC-137 MB-30 OPC-254L OPC-478 SP-13 | Battery pack charger adapter Desktop rapid charger Wall charger. 12 VDC, 100 mA. USA 120 VAC Wall charger. 12 VDC, 100 mA. Europe 230 VAC Wall charger. 12 VDC, 100 mA. Australia 240 VAC Battery case. Four R6/AA alkaline or NiCd cells NiCd battery pack. 4.8 V, 700 mAh NiCd battery pack. 4.8 V, 950 mAh NiCd battery pack. 9.6 V, 650 mAh NiCd battery pack. 7.2 V, 600 mAh Cigarette lighter cable with noise filter Cloning software Speaker-microphone Speaker-microphone Speaker-microphone Handsfree headset with PTT and VOX Carrying case. For use with BP-170 / 171 / 172 Carrying case. For use with BP-173 / 180 Mobile bracket DC power cable Cloning cable, RS-232C (Radio-to-PC) Earphone |
