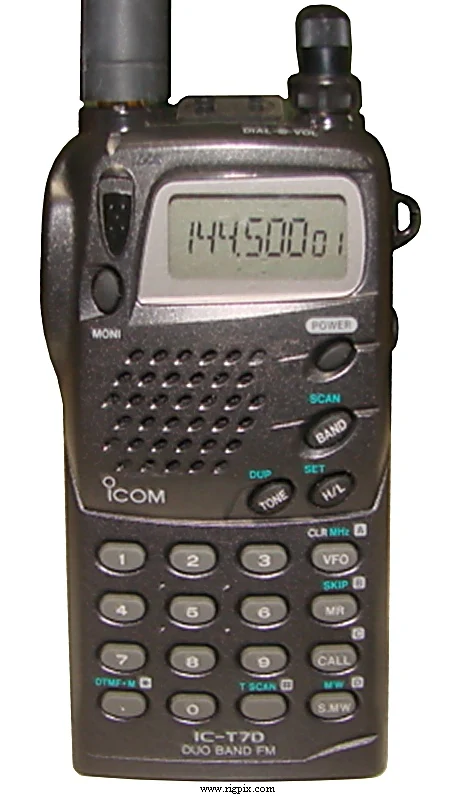

IC-T7D
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Japanese domestic market TX: 144-146 / 430-440 MHz RX: 144-146 / 430-440 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability | ±5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | FM |
| Channels / memory management | 60 regular 4 scan edge pairs 2 call |
| Repeater shift / offset | Programmable |
| Power supply | 4.8-9.6 VDC (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 16-190 mATX: 0.6-1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*122*29 mm (2.24*4.8*1.14") |
| Weight | 320 g (11.29 oz), with BP-180 |
| Other features | CTCSS/PL. DTMF. Voltage meter. |
RECEIVER SECTION
| Receiver system | ? conversion superheterodyne |
|---|---|
| Sensitivity | — |
| Squelch sensitivity | Less than 0.16 uV (Threshold) |
| Noise figure | — |
| Selectivity | — |
| Image rejection | — |
| AF output power / speaker | ? mW at ?% distortion /? ohm |
| External speaker connector | TS «Minijack» (3.5 mm), 8 ohm |
TRANSMITTER SECTION
| RF output power | High@ 13.5VHigh@ 6VLow 2 m:6 W2 W500 mW 70 cm:6 W1.5 W500 mW |
|---|---|
| 2 m | 6 W |
| 70 cm | 6 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance/connector | 2 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1998-199x (Discontinued) |
|---|---|
| Additional info | — |
| BP-170 BP-171 BP-172 BP-173 BP-180 CP-12L HS-85 LC-136 LC-137 MB-30 OPC-254L OPC-478 SP-13 | Battery case. Four R6/AA alkaline or NiCd cells NiCd battery pack. 4.8 V, 700 mAh NiCd battery pack. 4.8 V, 950 mAh NiCd battery pack. 9.6 V, 650 mAh NiCd battery pack. 7.2 V, 600 mAh Cigarette lighter cable with noise filter Handsfree headset with PTT and VOX Carrying case. For use with BP-170 / 171 / 172 Carrying case. For use with BP-173 / 180 Mobile bracket DC power cable Cloning cable, RS-232C (Radio-to-PC) Earphone |
