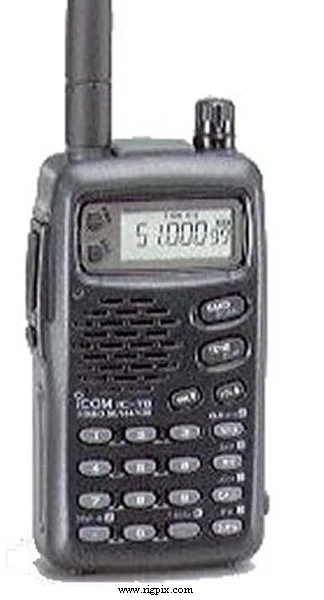

IC-T8A
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | USA TX: 50-54 / 144-148 / 440-450 MHz RX: 76-108 / 118-174 / 400-470 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | ±10 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | TX: FMAM / FM / WFM |
| Channels / memory management | 100 regular 20 scan edges 3 call (1 per band) |
| Repeater shift / offset | Programmable |
| Power supply | 4.5-9.6 VDC (Depending on battery pack)or 4.5-16 VDC external |
| Current drain / power consumption | RX: 16-250 mATX: Max 1.8 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 58*107*29 mm (2.28*4.21*1.14") |
| Weight | 270 g (9.52 oz), with BP-198 |
| Other features | CTCSS/PL with tone scan. DTMF. Voltage meter. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 41.85 MHz (AM/FM) — 13.35 MHz (WFM) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Squelch sensitivity | Less than 0.18 uV (Threshold) |
| Noise figure | — |
| Selectivity | AM/FM: 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | VHF: -60 dBUHF: -50 dB |
| AF output power / speaker | 250 mW at % distortion / 8 ohm |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | High@ 13.5VHigh@ 9.6VHigh@ 6VHigh@ 4.8VLow 6 m:5 W4.5 W2 W1.2 W500 mW 2 m:5 W4.5 W2 W1.2 W500 mW 70 cm:5 W4.5 W2 W1.2 W500 mW |
|---|---|
| 6 m | 5 W |
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | Variable reactance frequency modulation |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / TRS «Subminijack» (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1997-200x (Discontinued) |
|---|---|
| Additional info | — |
| AD-87 AD-88 BC-110A BC-110D BC-110V BC-119 BP-197 BP-198 BP-199 BP-200 CP-12L CS-T8 HM-46 HM-54 HM-75A HS-85 LC-147 OPC-254L OPC-474 OPC-478 S6270B SP-13 | Battery pack adapter Terminal PC board for charger Wall charger Wall charger Wall charger Desktop rapid charger Battery case. Three LR6/AA batteries NiCd battery pack. 4.8 V, 700 mAh NiCd battery pack. 6 V, 700 mAh NiCd battery pack. 9.6 V, 680 mAh Cigarette lighter cable with filter Cloning software Speaker-microphone Speaker-microphone Speaker-microphone Headset with PTT and VOX Carrying case DC power cable Cloning cable (Radio-to-radio) Cloning cable, RS-232C (Radio-to-PC) Triband rubber antenna Earphone |
