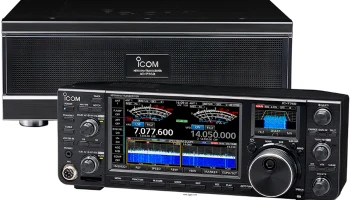

IC-7760
Источник:
GENERAL
| Type | Amateur HF/VHF transceiver |
|---|---|
| Frequency range | TX: 10-160 m + WARC / 6 m (Also 60 m for USA and 136 KHz for Europe) RX: 0.03-60 MHz |
| Tuning steps | Down to 1 Hz |
| Frequency stability | Less than ±0.5 ppm @ 0 to 50°C (32 to 122°F) |
| Mode | AM / FM / SSB / CW / RTTY / PSK31 and 63 |
| Channels / memory management | 99 regular 2 scan edges |
| Repeater shift / offset | — |

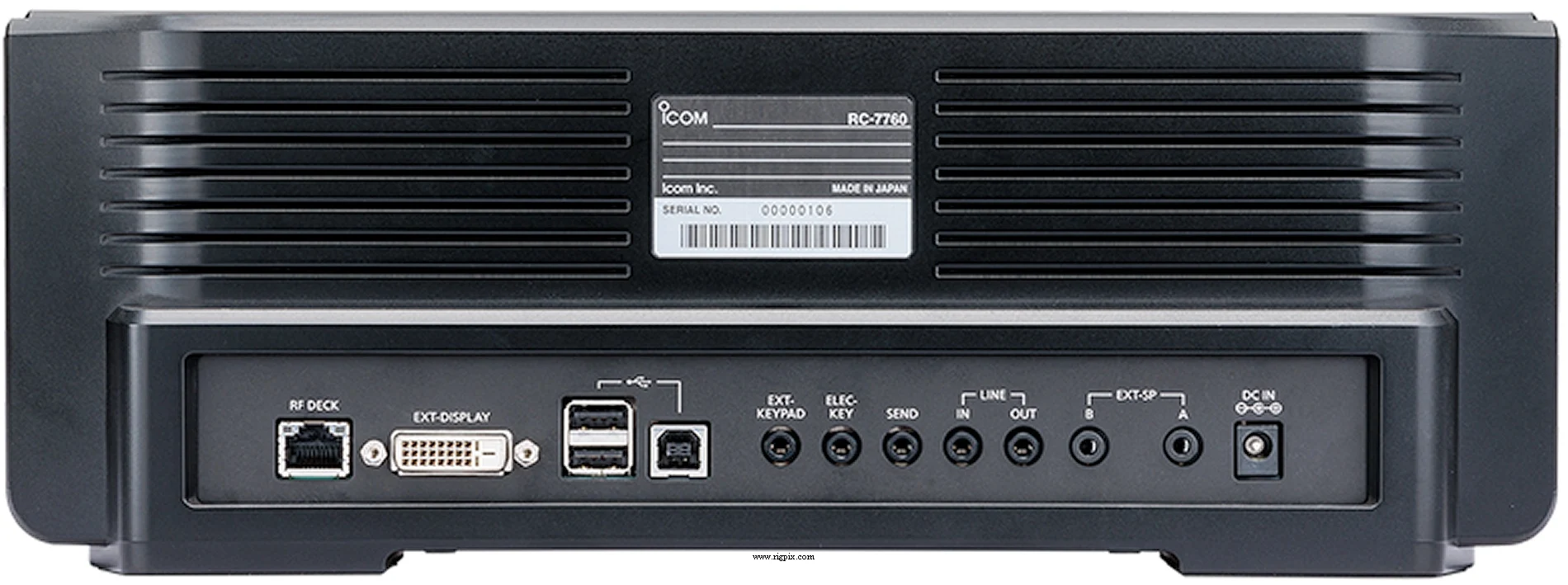

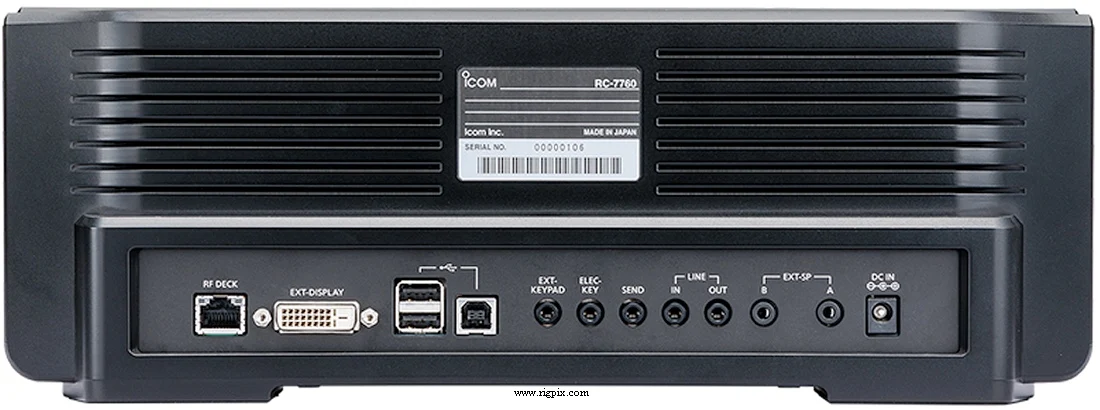

| Power supply | RF deck Mains: 90-264 VAC (3-pin IEC C14 connector) Control head 15 VDC (Male barrel jack, center positive) |
| Current drain / power consumption | RX: 150 VATX: Max 800 VA |

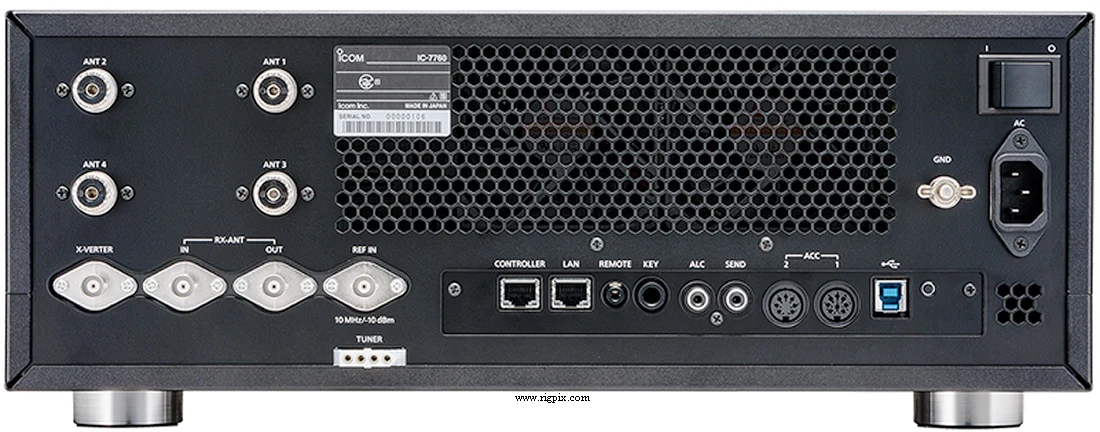

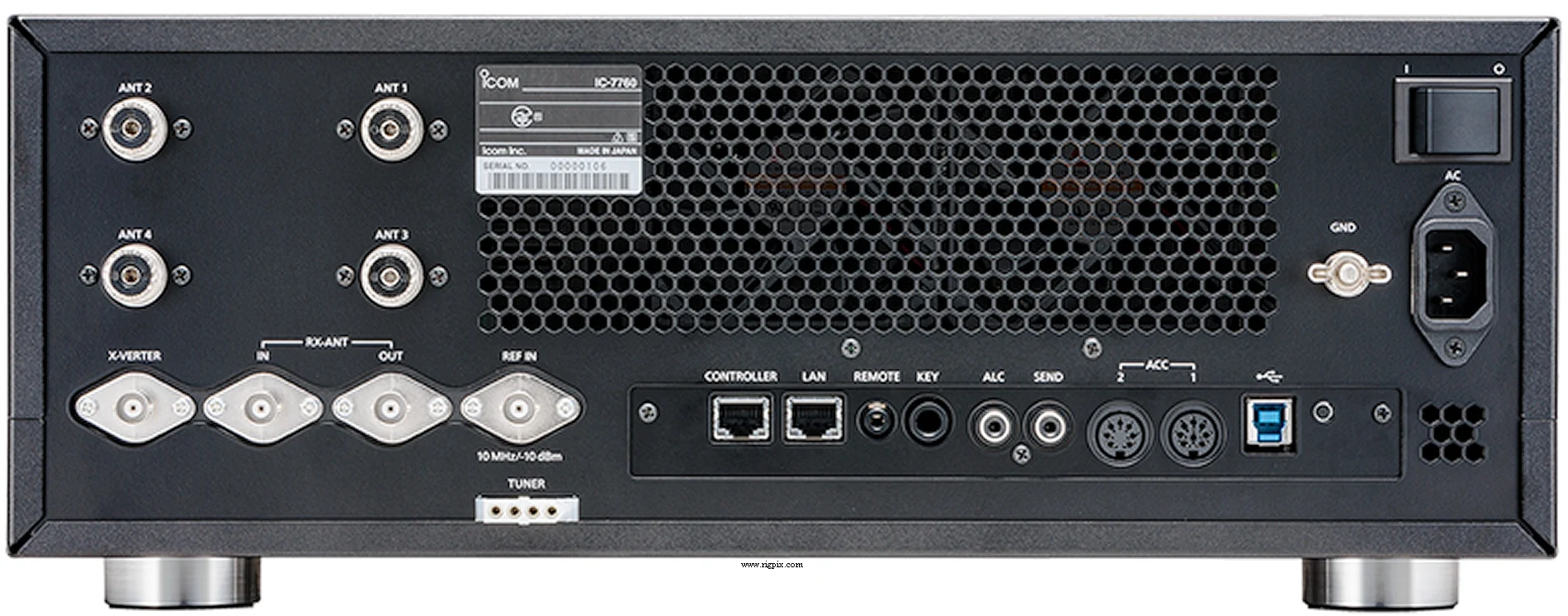

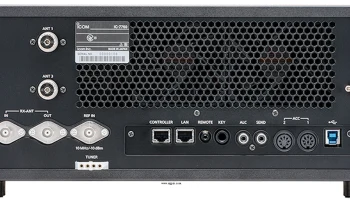

| Antenna impedance / connector | 16.7-150 ohm (ATU range) / Four SO-239 + two BNC (RX in/out) |

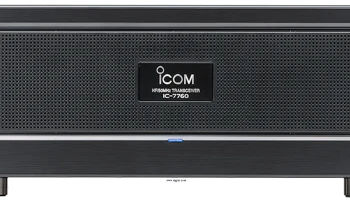

| Dimensions (W*H*D) | Control head:340*118*104 mm (13.4*4.6*4.1")RF deck:425*149*442 mm (16.7*5.9*17.4") |
| Weight | Control head:2.3 Kg (5.1 lb)RF deck:15.8 Kg (34.8 lb) |

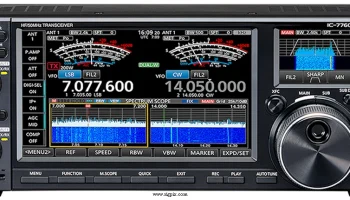

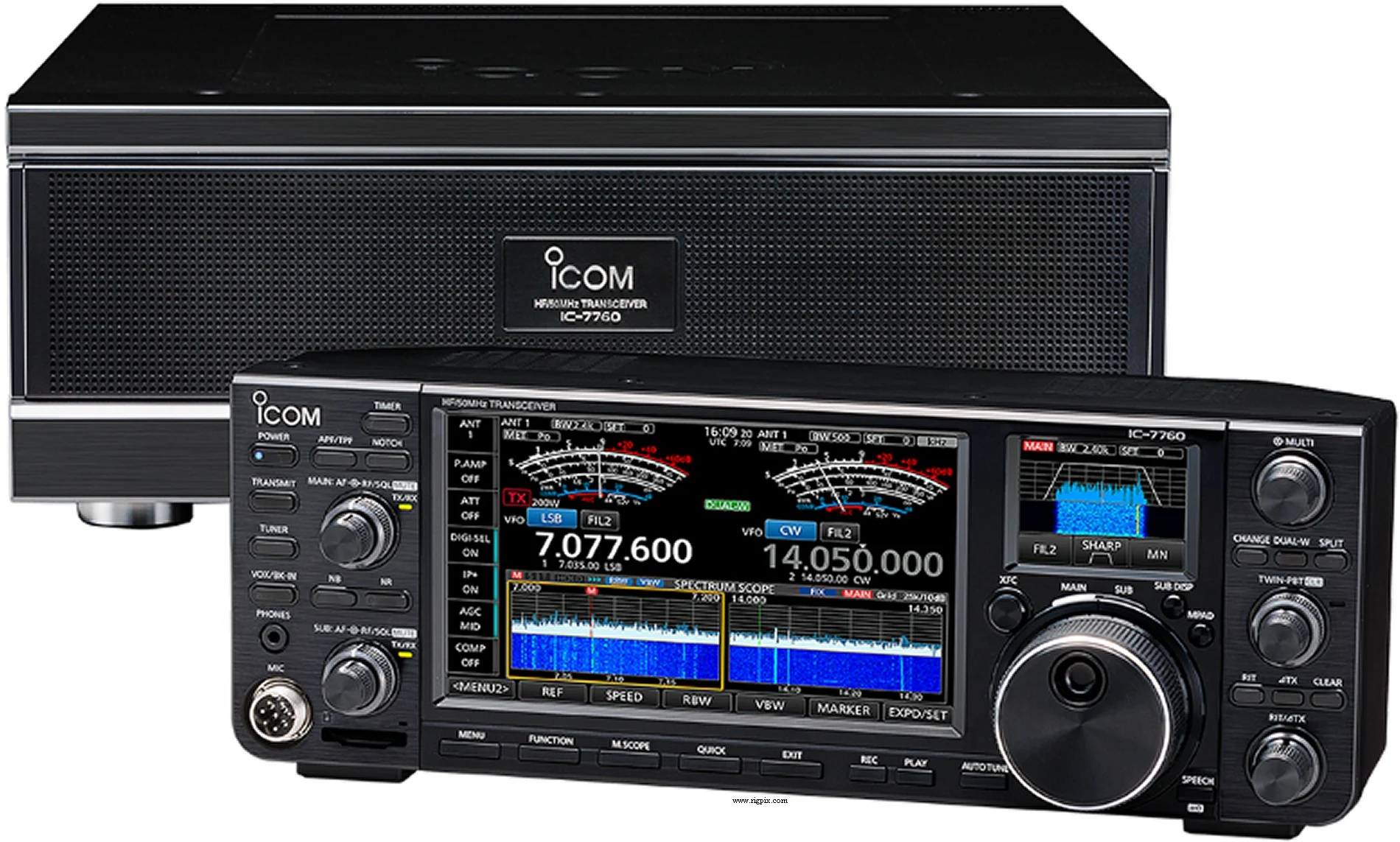

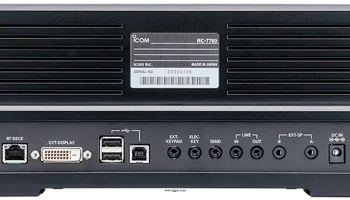

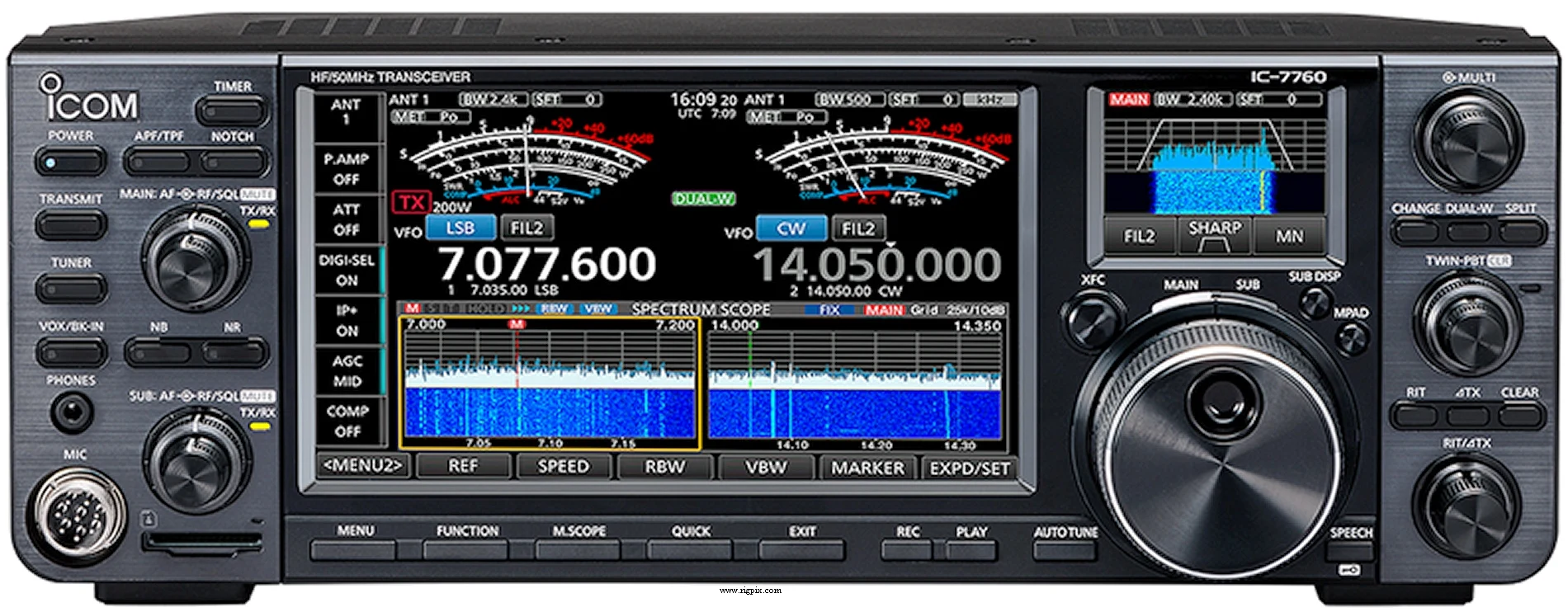

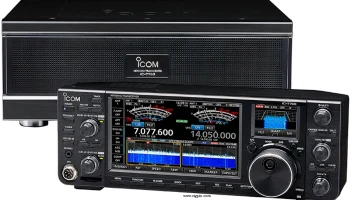

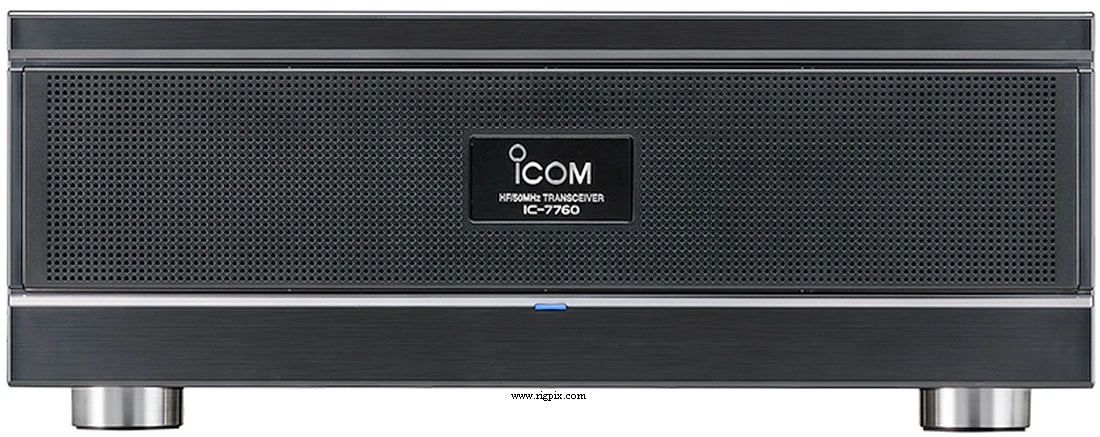

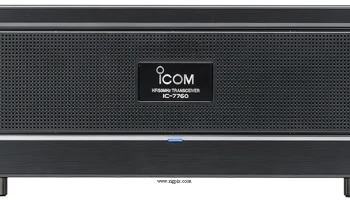

| Other features | Separate control head and RF deck. Remote control via LAN. Two touch displays; one 7" main and one 2.4" sub. Dual identical independent receivers and two speakers. Dual spectrum/waterfall display. Audio scope display. Two DSP (One in the RF deck and one in the controller). Digital preselector. A total of 15 separate bandpass filters. I/Q output. The transmitter employs digital pre-distortion technology for a clean output signal. Built-in auto-ATU. RTTY/PSK encoder/decoder. SD card slot. DVI-D jack for external display. Main/Sub band tracking function for diversity reception. VOX. Transverter jack. Microphone equalizer. CTCSS/PL. Screen saver. USB port for RC-28, keyboard, mouse and flash drive connection. Electronic keyer. |
RECEIVER SECTION
| Receiver system | Direct sampling superheterodyne IF: 12 KHz |
|---|---|
| Sensitivity | HF: Preamp 1 ON. 50 MHz: Preamp 2 ON. AM (10 dB S/N. Soft filter) 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 2 uV 6 m: 1 uV FM (12 dB SINAD. Soft filter) 1.8-30 MHz: 0.5 uV 6 m: 0.32 uV SSB/CW (10 dB S/N. Soft filter) 135 KHz: 1.41 uV 1.8-30 MHz: 0.16 uV 6 m: 0.13 uV |
| Selectivity | AM (Filter: Sharp, BW: 6 KHz) 6 KHz (-6 dB)15 KHz (-60 dB) FM (Filter: Sharp, BW: 15 KHz) 12 KHz (-6 dB)20 KHz (-60 dB) SSB (Filter: Sharp, BW: 2.4 KHz) 2.4 KHz (-6 dB)3.6 KHz (-60 dB) CW (Filter: Sharp, BW: 500 Hz) 500 Hz (-6 dB)700 Hz (-60 dB) RTTY (Filter: Sharp, BW: 500 Hz) 500 Hz (-6 dB)700 Hz (-60 dB) |
| Image rejection | HF: 70 dB6 m: 70 dB |
| AF output power / speaker | 2 W at 10% distortion / 8 ohm |
| External speaker connector | Two TS minijacks (3.5 mm) |
TRANSMITTER SECTION
| RF output power | AM:0.25-25 W FM:1-200 W SSB (PEP):1-200 W CW:1-200 W RTTY/PSK:1-200 W 100% duty cycle! |
|---|---|
| AM | 0.25-25 W |
| FM | 1-200 W |
SSB (PEP)
| CW | 1-200 W |
|---|
RTTY/PSK
| Modulation system | AM: Digital low power modulation FM: Digital reactance modulation SSB: Digital PSN modulation |
|---|---|
| Max FM deviation (Factory set) | ±? KHz |
| Spurious emissions | HF: Better than -50 dB6 m: Better than -66 dB |
| Microphone impedance / connector | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2024-202x |
|---|---|
| Additional info | — |
| AH-730 BC-267 HM-219 IC-PW2 OPC-1465 OPC-2501 RC-28 RS-BA1 SM-30 SM-50 SP-33 SP-41 | External antenna tuner Controller AC adapter Hand microphone with up/down buttons HF/6 m 1 KW linear amplifier Shielded control cable DPD feedback cable Remote encoder Remote control software Desk microphone Dynamic desk microphone External speaker External speaker |
