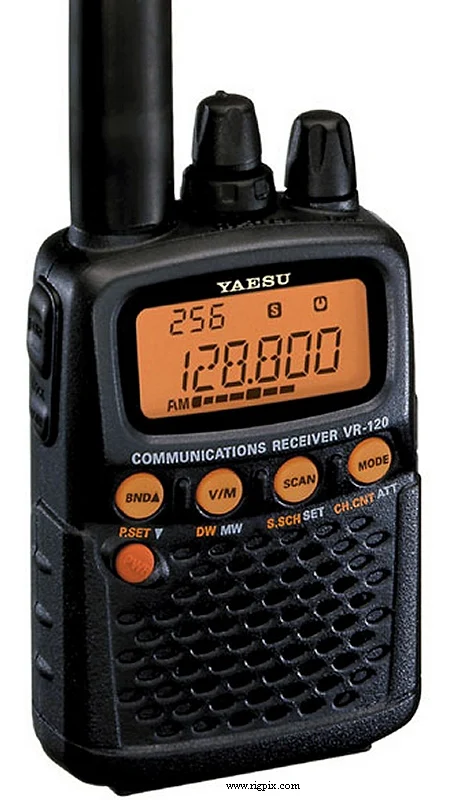

VR-120D
Источник:
GENERAL
| Type | VHF/UHF receiver/scanner |
|---|---|
| Frequency range | 0.1-1300 MHz (Cellular blocked in the US) |
| Tuning steps | 5 / 6.25 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability | — |
| Mode | AM / FM / WFM |
| Channels / memory management | 640 regular in 10 banks Alpha tags with up to 8 characters 21 smart search 10 dual watch pairs 8 search ranges |
| Power supply | 2.2-3.5 VDC (Two R6 / AA batteries)or 5.5-10 VDC external |
| Current drain / power consumption | 15-95 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 59*85*26 mm (2.32*3.35*1.02") |
| Weight | 195 g (6.88 oz), with antenna and batteries |
| Other features | Frequency finder. Dual watch. Internal ferrite bar antenna for MW reception. |
RECEIVER SECTION
| Receiver system | Triple conversion superheterodyne 1st IF: 248.45 MHz 2nd IF: 15 MHz 3rd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.2-5 MHz: 1.5 uV 5-370 MHz: 0.6 uV FM (12 dB SINAD) 5-520 MHz: 0.3 uV 520-1300 MHz: 0.7 uV WFM (12 dB SINAD) 5-160 MHz: 0.9 uV 160-370 MHz: 0.6 uV 370-520 MHz: 1.0 uV 520-1300 MHz: 3 uV |
| Selectivity | AM/FM 16 KHz (-6 dB) WFM 200 KHz (-6 dB) |
| Image rejection | — |
| AF output power / speaker | 80 mW at ?% distortion / 8 ohm |
| External speaker connector | — |
MISCELLANEOUS
| Manufactured | Japan, 2001-200x (Discontinued) |
|---|---|
| Additional info | This updated version adds a DC jack for external power and a charging system |
| CA-34 CSC-76 CT-35 EDC-15 FNB-79 FNB-79MH NC-82 PA-30B PA-30C PA-30U | Charging sleeve for NC-82 Soft case Cloning cable (Radio-to-radio) DC power cable with cigarrette lighter plug NiCd battery pack. 2.4 V, 700 mAh NiMH battery pack. 2.4 V, 1200 mAh Charging stand (Requires CA-34 and PA-30) AC adapter (120 VAC). 6 VDC, 100 mA AC adapter (230 VAC). 6 VDC, 100 mA AC adapter (230 VAC, UK 3-pin). 6 VDC, 100 mA |
