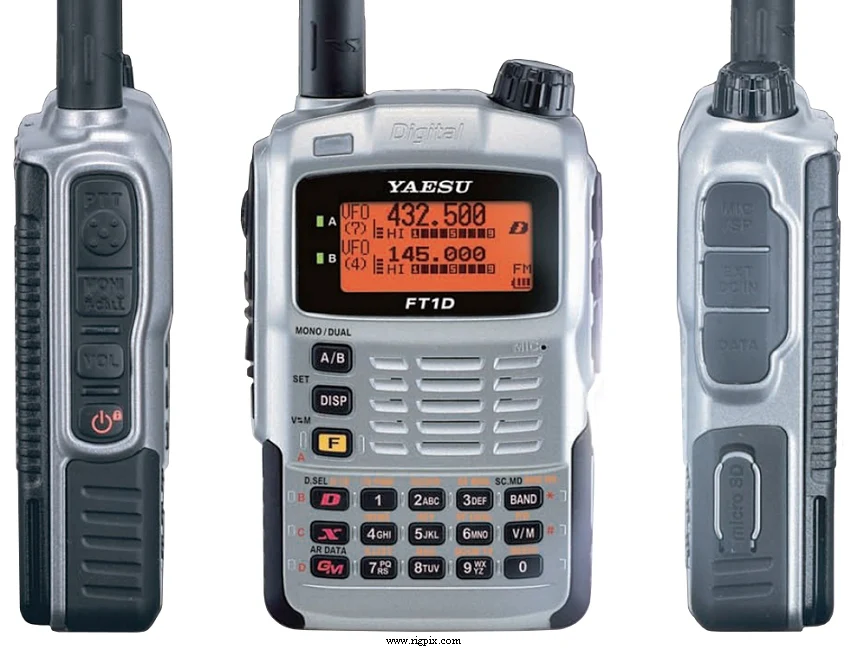

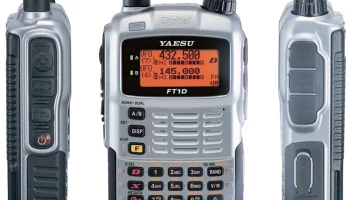

FT-1DE
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 / 430-440 MHz RX: 0.5-999 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode | TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps) RX: AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Channels / memory management | 900 regular with alpha tags 99 skip 50 PMS 11 home channels 10 WX presets 57 marine presets 89 broadcast presets Non-volatile EEPROM storage |
| Repeater shift / offset | 2 m: ±600 KHz 70 cm: 1.6 or 7.6 MHz (Defaults depending on country. Can be modified) |
| Power supply | 4.0-7.5 VDC (Depending on battery pack)or 4-14 VDC external (Barrel connector) |
| Current drain / power consumption | RX: 45-220 mA (+30 mA GPS on) (+65 mA Digital on)TX: Max 2 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 60*95*32.5 mm (2.4*3.7*1.28") |
| Weight | 290 g (10.23 oz), with FNB-102Li and antenna |
| Other features | Built-in GPS. IPX5 water spray resistant. Vibralert. Internal AM bar antenna. GSM function (Group Short Message, 80 characters). Micro SD card slot. Snapshot function/Image transfer with optional camera-microphone. Digital ARTS. USB port. Clock. 1750 Hz repeater tone. Twin RX |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne (AM BC/WFM) IF: 130 KHz Double conversion superheterodyne (AM/FM/NFM) 1st IF: 47.25 MHz (A Band), 46.35 MHz (B Band) 2nd IF: 450 KHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-30 MHz: 3 uV 108-137 MHz: 1.5 uV FM (12 dB SINAD) 30-54 MHz: 0.35 uV 54-88 MHz: 1 uV 137-140 MHz: 0.2 uV 140-150 MHz: 0.16 uV 150-174 MHz: 0.2 uV 174-222 MHz: 1 uV 300-350 MHz: 0.5 uV 350-400 MHz: 0.2 uV 400-470 MHz: 0.16 uV 470-540 MHz: 1.5 uV 540-800 MHz: 3 uV 800-999 MHz: 1.5 uV WFM (12 dB SINAD) 76-108 MHz: 1.5 uV DV/C4FM (BER 1%) 144-148 MHz: 0.19 uV 430-450 MHz: 0.19 uV |
| Selectivity | AM/NFM: 12 KHz (-6 dB)35 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion /? ohm @ 7.4 VDC 400 mW at 10% distortion /? ohm @ 13.8 VDC |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighL3L2L1 2 m:5 W2.5 W1 W100 mW 70 cm:5 W2.5 W1 W100 mW The above output power settings are valid with Li-Ion battery packs only With the alkaline battery case, max output power is around 800 mW |
|---|---|
| 2 m | 5 W |
| 70 cm | 5 W |
| Modulation system | FM: Variable reactanceDV: 4FSK/C4FM |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -50 to -60 dB |
| Microphone impedance / connector | ? ohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 2012-2015 (Discontinued) |
|---|---|
| Additional info | — |
| CD-41 CN-3 CSC-97 CT-44 CT-168 CT-170 CT-176 E-DC-6 FBA-39 FNB-101Li FNB-102Li MH-34B4B MH-37A4B MH-85A11U PA-48B PA-48C PA-48U SAD-11B SBR-14Li SCU-18 SCU-19 SDD-13 SSM-63A | Rapid charger BNC-to-SMA adapter Soft case Microphone adapter Clone cable Data cable Data cable. 2.5 mm diameter DC cable Battery case. Three LR6 / AA batteries Li-Ion battery pack. 7.4 V, 1100 mAh Li-Ion battery pack. 7.4 V, 1800 mAh Speaker-microphone Earphone-microphone Speaker-microphone with built-in camera Battery charger (120 VAC, type A) Battery charger (230-240 VAC, type C) Battery charger (230 VAC, type BF) Battery charger. USA only Li-Ion battery pack. 7.2 V, 2200 mAh PC connection cable PC connection cable DC cable with noise filter VOX headset |
