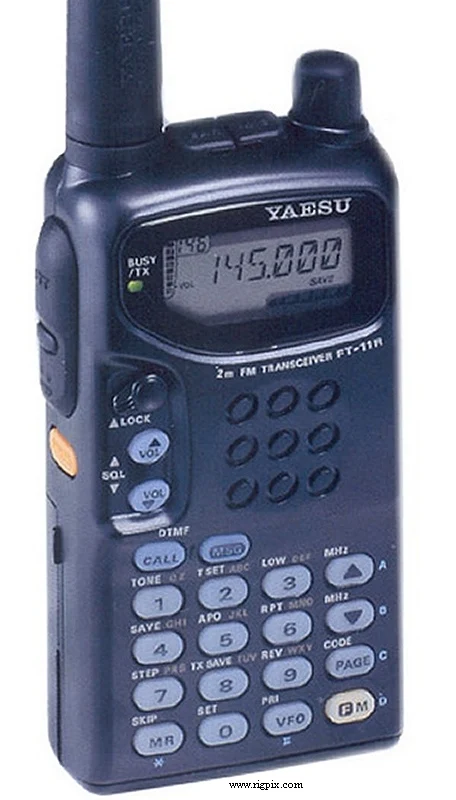

FT-11R
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 110-180 MHz USA TX: 144-148 MHz RX: 110-180 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz |
| Frequency stability | ±10 ppm (No temperature reference) |
| Mode | TX: FMRX: AM / FM |
| Channels / memory management | 146 regular with alpha tags (6 characters) 1 call 2 scan edge pairs (PMS) Priority function RAM storage with lithium battery backup |
| Repeater shift / offset | ±600 KHz (Programmable) |
| Power supply | 4-12 VDC |
| Current drain / power consumption | RX: 16-140 mATX: Max 1.5 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*123*26 mm (2.24*?*1.02"), with FNB-31 |
| Weight | 280 g (9.88 oz), with FBA-14 |
| Other features | CTCSS/PL encoder. DTMF. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | >64 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm (With 11 VDC supply) |
| External speaker connector | TS «Minijack» (3.5 mm) |
TRANSMITTER SECTION
| RF output power | HighL3L2L1 2 m:5 W3 W1.5 W300 mW Output power indicated above is with 9.6 VDC supply, or more |
|---|---|
| 2 m | 5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / 2-pin (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1993-200x (Discontinued) |
|---|---|
| Additional info | New price 1995 in Sweden: SEK 4075:- |
| CA-9 CA-10 CLIP-3 CSC-61 CSC-62 FBA-14 FNB-31 FNB-33 FNB-35 FNB-38 FTS-26 MH-12A2B MH-18A2B MH-19A2B NC-34B NC-34C NC-38B NC-38C NC-50 NC-55B NC-55C PA-10 VC-22 YHA-52 | Base charging stand Charger sleeve. For use with NC-50 Belt clip Soft case. For FBA-14, FNB-33/35/38 Soft case. For FNB-31 Battery case. Four LR6 / AA batteries NiCd battery pack. 4.8 V, 600 mAh NiCd battery pack. 4.8 V, 1200 mAh NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 9.6 V, 600 mAh CTCSS/PL tone squelch unit Speaker-microphone Miniature speaker-microphone Earpiece/in-line miniature microphone 15 hr charger (117 VAC) for FNB-33/35 and CA-9 15 hr charger (220-234 VAC) for FNB-33/35 and CA-9 15 hr charger (117 VAC) for FNB-38 and CA-9 15 hr charger (220-234 VAC) for FNB-38 and CA-9 Dual-slot rapid charger 15 hr charger (117 VAC) for FNB-31 and CA-9 15 hr charger (220-234 VAC) for FNB-31 and CA-9 Mobile power adapter/stand. 11 VDC output. Cooling fan VOX headset with boom microphone Flexible helical antenna |
