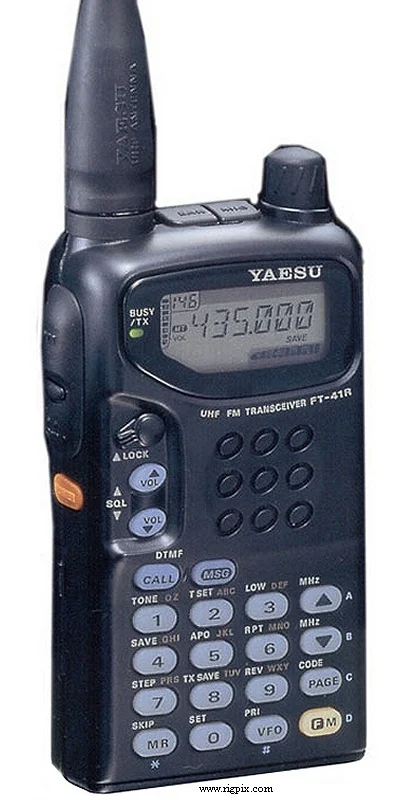

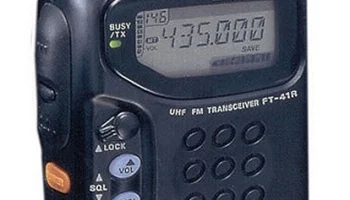

FT-41R
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Europe TX: 430-440 MHz RX: 430-440 MHz USA TX: 430-450 MHz RX: 430-450 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz |
| Frequency stability | Better than ±5 ppm (No temperature reference) |
| Mode | FM |
| Channels / memory management | 146 regular with alpha tags (6 characters) 1 call 2 scan edge pairs (PMS) Priority function RAM storage with lithium battery backup |
| Repeater shift / offset | ±1.2 / 5 / 7.6 MHz (Default depending on market. Programmable) |
| Power supply | 4-12 VDC |
| Current drain / power consumption | RX: 15-120 mATX: 1.2 A @ 3.5 W output power |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 57*102*26 mm (2.24*4.02*1.02"), with FNB-31 |
| Weight | 280 g (9.88 oz), with FNB-31 |
| Other features | 1750 Hz repeater tone (Europe). CTCSS/PL encoder. DTMF. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 45.1 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.18 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 64 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm @ 11 VDC |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighL3L2L1 70 cm:4.5 W2 W1 W200 mW |
|---|---|
| 70 cm | 4.5 W |
| Modulation system | — |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | 1993-199x (Discontinued) |
|---|---|
| Additional info | New price 1995 in Sweden: SEK 4275:- |
| CA-9 CA-10 CLIP-3 CSC-61 CSC-62 FBA-14 FNB-31 FNB-33 FNB-35 FNB-38 FTS-26 MH-12A2B MH-18A2B MH-19A2B NC-34B NC-34C NC-38B NC-38C NC-50 NC-55B NC-55C PA-10 VC-22 YHA-53 | Base charging stand Charger sleeve. For use with NC-50 Belt clip Soft case. For FBA-14, FNB-33/35/38 Soft case. For FNB-31 Battery case. Four LR6 / AA batteries NiCd battery pack. 4.8 V, 600 mAh NiCd battery pack. 4.8 V, 1200 mAh NiCd battery pack. 7.2 V, 900 mAh NiCd battery pack. 9.6 V, 600 mAh CTCSS/PL tone squelch unit Speaker-microphone Miniature speaker-microphone Earpiece/in-line miniature microphone 15 hr charger (117 VAC) for FNB-33/35 and CA-9 15 hr charger (220-234 VAC) for FNB-33/35 and CA-9 15 hr charger (117 VAC) for FNB-38 and CA-9 15 hr charger (220-234 VAC) for FNB-38 and CA-9 Dual-slot rapid charger 15 hr charger (117 VAC) for FNB-31 and CA-9 15 hr charger (220-234 VAC) for FNB-31 and CA-9 Mobile power adapter/stand. 11 VDC output. Cooling fan VOX headset with boom microphone Flexible helical antenna |
