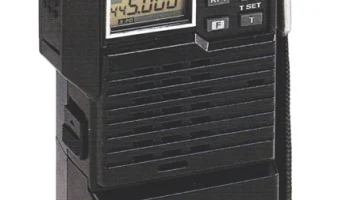

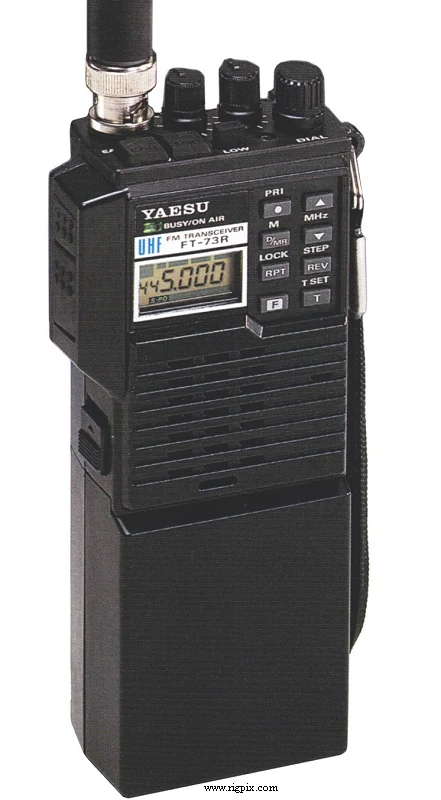

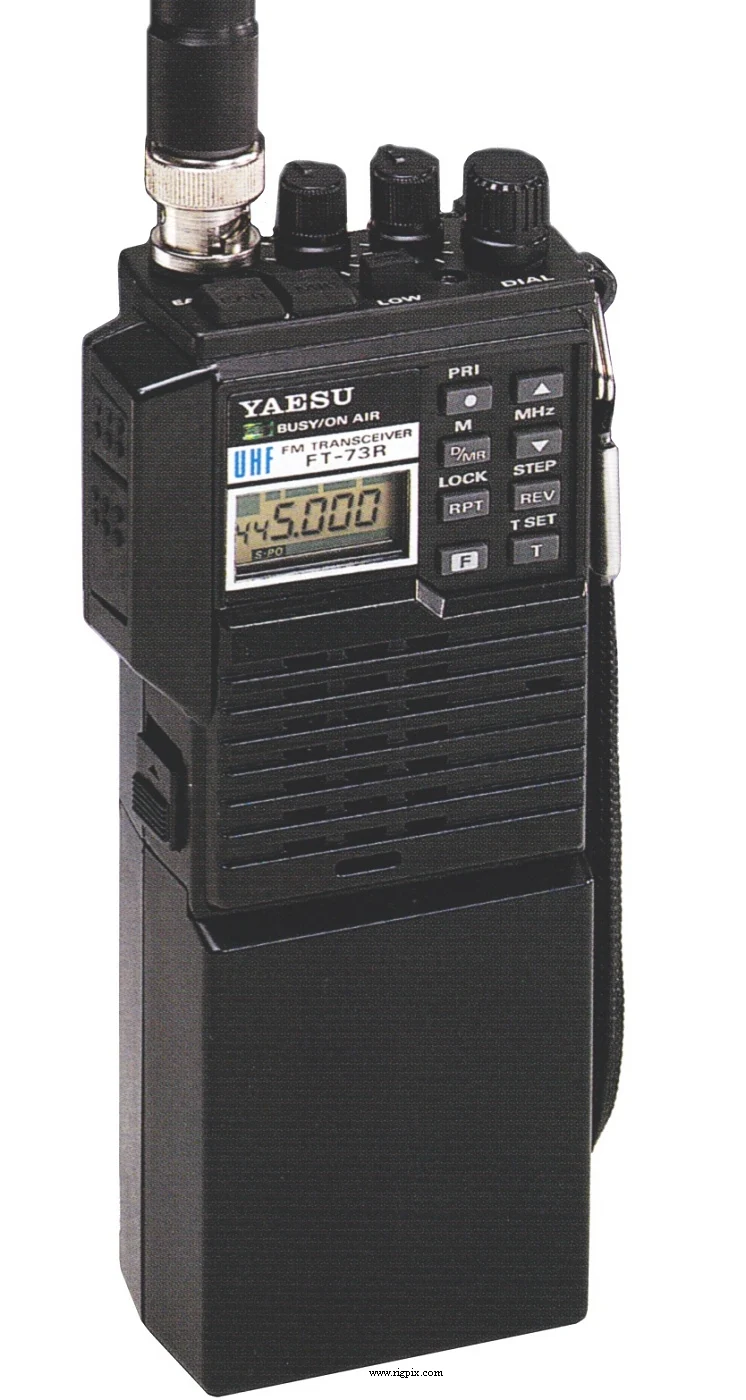

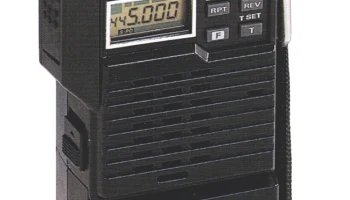

FT-73R
Источник:
GENERAL
| Type | Amateur UHF transceiver |
|---|---|
| Frequency range | Europe TX: 430-440 MHz RX: 430-440 MHz USA TX: 440-450 MHz RX: 440-450 MHz |
| Tuning steps | 12.3 / 25 KHz |
| Frequency stability | Better than ±5 ppm (No temperature reference) |
| Mode | FM |
| Channels / memory management | 10 regular, of which channel 0 to 6 can store odd splits 1 call 1 priority RAM storage with backup battery |
| Repeater shift / offset | Europe: ±1.6 or 7.6 MHzUSA: ±5 MHz |
| Power supply | 6-15 VDC |
| Current drain / power consumption | RX: 19-150 mATX: Max 1.6 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 55*139*32 mm (2.16*5.47*1.26"), with FNB-10 |
| Weight | 430 g (15.17 oz), with FNB-10 |
| Other features | 1750 Hz repeater tone (Europe). CTCSS/PL option. Cloning function. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 17.2 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 400 mW at 5% distortion /? ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 70 cm:2-5 W200-500 mW NB! Output levels depend on voltage/battery pack |
|---|---|
| 70 cm | 2-5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1986-199x (Discontinued) |
|---|---|
| Additional info | New price 1988 in Sweden: SEK 3180:- |
| CSC-22 CSC-23 CSC-24 CSC-25 CSC-26 FBA-9 FBA-10 FNB-9 FNB-10 FNB-11 FTS-12 FTT-4 MH-12A2B MH-18A2B MMB-32 NC-18B NC-18C NC-27B NC-27C NC-28B NC-28C NC-29 PA-6 YHA-46 | Soft case for use with FNB-9 and FBA-9 Soft case for use with FNB-10 and FBA-10 Soft case for use with FNB-11 Soft case for use with FTT-4, FNB-10 and FBA-10 Soft case for use with FTT-4 and FNB-11 Battery case (6*LR03/AAA dry cells) Battery case (6*LR6/AA dry cells) NiCd battery pack. 7.2 V, 200 mAh NiCd battery pack. 7.2 V, 600 mAh NiCd battery pack. 12 V, 600 mAh CTCSS/PL tone unit DTMF keypad Speaker-microphone Miniature speaker-microphone Mobile hanger bracket Wall charger for FNB-11/FNB-12. 117 VAC Wall charger for FNB-11/FNB-12. 220-234 VAC Wall charger for FNB-9. 117 VAC Wall charger for FNB-9. 220-234 VAC Wall charger for FNB-10/FNB-17. 117 VAC Wall charger for FNB-10/FNB-17. 220-234 VAC Desktop quick charger for all FNB packs except FNB-14 Mobile DC adapter/charger for 7.2 V packs Rubber flex antenna |
