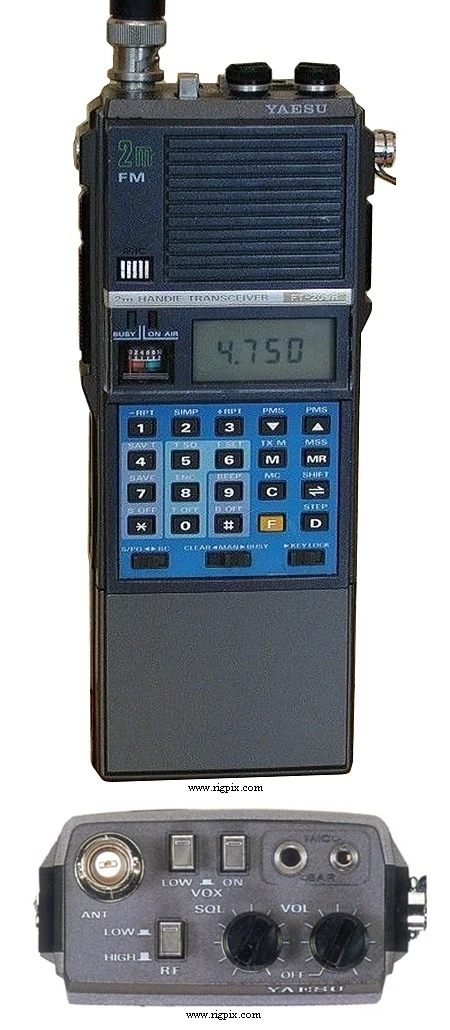

FT-209R
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 144-146 MHz USA TX: 144-148 MHz RX: 144-148 MHz |
| Tuning steps | 12.5 / 25 KHz (Europe)5 / 10 KHz (USA) |
| Frequency stability | — |
| Mode | FM |
| Channels / memory management | 10 regular RAM storage with lithium battery backup |
| Repeater shift/offset | ±600 KHz |
| Power supply | 6-15 VDC |
| Current drain / power consumption | RX: 45-150 mATX: Max 650 mA |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 65*168*34 mm (2.56*6.61*1.34") |
| Weight | 557 g (19.65 oz), with FNB-3 |
| Other features | 1750 Hz tone burst (Europe). VOX. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 10.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.25 uV (12 dB SINAD) |
| Selectivity | 15 KHz (-6 dB)30 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 450 mW at 10% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:3.5 W350 mW NB! High output level depends on battery pack/voltage) |
|---|---|
| 2 m | 3.5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1984-198x (Discontinued) |
|---|---|
| Additional info | — |
| FNB-3A FNB-4A FNB-5A CSC-17 CSC-18 FTS-6 YH-2 MH-12A2B NC-9B NC-9C NC-18B NC-18C NC-15 PA-3 MMB-21 | 425 mAh NiCd battery pack 500 mAh NiCd battery pack Battery case. Six LR6 / AA batteries Soft case for use with FNB-3A or 5A Soft case for use with FNB-4A CTCSS/PL unit (US model only) Headset Speaker-microphone Compact charger (117 VAC) for FNB-3A Compact charger (220 VAC) for FNB-3A Compact charger (117 VAC) for FNB-4A Compact charger (220 VAC) for FNB-4A Quick charger/DC supply DC car adapter/trickle charger Mobile hanger bracket |
