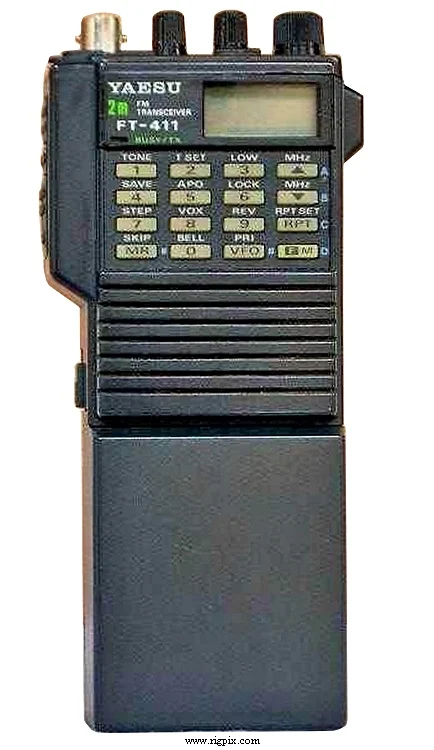

FT-411
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 140-174 MHz USA TX: 144-148 MHz RX: 140-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability | ±10 ppm (No temperature reference) |
| Mode | FM |
| Channels / memory management | 46 regular 1 call 2 scan edge (PMS) 10 DTMF RAM storage with lithium battery backup (CR2025) |
| Repeater shift / offset | ±600 KHz (Default, programmable) |
| Power supply | 5.5-15 VDC |
| Current drain / power consumption | RX: 7-150 mATX: Max 1.3 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 55*139*32 mm (2.16*5.47*1.26"), with FNB-10 |
| Weight | 430 g (15.17 oz), with FNB-10 |
| Other features | VOX. DTMF. 1750 Hz repeater tone (Europe). Cloning. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.7 MHz 2nd IF: 455 KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity | — |
| Noise figure | — |
| Selectivity | 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 500 mW at 5% distortion / 8 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2-5 W? mW NB! The high power level depends on battery pack/voltage |
|---|---|
| 2 m | 2-5 W |
| Modulation system | Variable rectance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | 25 mV @ 1 KHz for ±4.5 KHz deviation |
MISCELLANEOUS
| Manufactured | Japan, 198x-198x (Discontinued) |
|---|---|
| Additional info | — |
| CSC-35 CSC-36 CSC-37 CSC-38 FBA-9 FBA-10 FBA-17 FNB-9 FNB-10 FNB-11 FNB-12 FNB-14 FNB-17 FTS-17 MH-12A2B MH-18A2B MH-19A2B MMB-32A NC-18B NC-18C NC-27B NC-27C NC-28B NC-28C NC-29 NC-34B NC-34C PA-6 YH-2 YHA-16 | Soft case for use with FBA-9/FBA-17/FNB-9/FNB-17 Soft case for use with FBA-10/FNB-10 Soft case for use with FNB-12/FNB-14 Soft case for use with FNB-11 Battery case (6*LR03/AAA) Battery case (6*LR6/AA) Compact battery case (6*LR6/AA) NiCd battery pack. 7.2 V, 200 mAh NiCd battery pack. 7.2 V, 600 mAh NiCd battery pack. 12 V, 600 mAh NiCd battery pack. 12 V, 500 mAh NiCd battery pack. 7.2 V, 1000 mAh Compact NiCd battery pack. 7.2 V, 600 mAh CTCSS/PL tone squelch unit Speaker-microphone Compact speaker-microphone Earpiece/microphone Mobile hanger bracket Wall charger (117 VAC). For FNB-11/12 Wall charger (220-234 VAC). For FNB-11/12 Wall charger (117 VAC). For FNB-9 Wall charger (220-234 VAC). FNB-9 Wall charger (117 VAC). For FNB-10/17 Wall charger (220-234 VAC). FNB-10/17 Desktop quick charger for FNB-9/10/11/12/14/17 Wall charger (117 VAC). For FNB-14 Wall charger (220-234 VAC). FNB-14 Mobile DC adapter/charger for FNB-9/10/14/17 Headset Rubber flex antenna |
