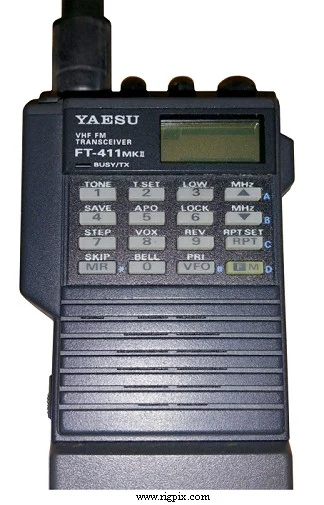

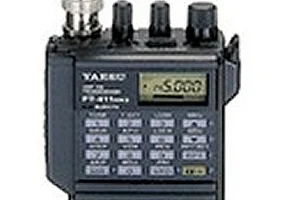

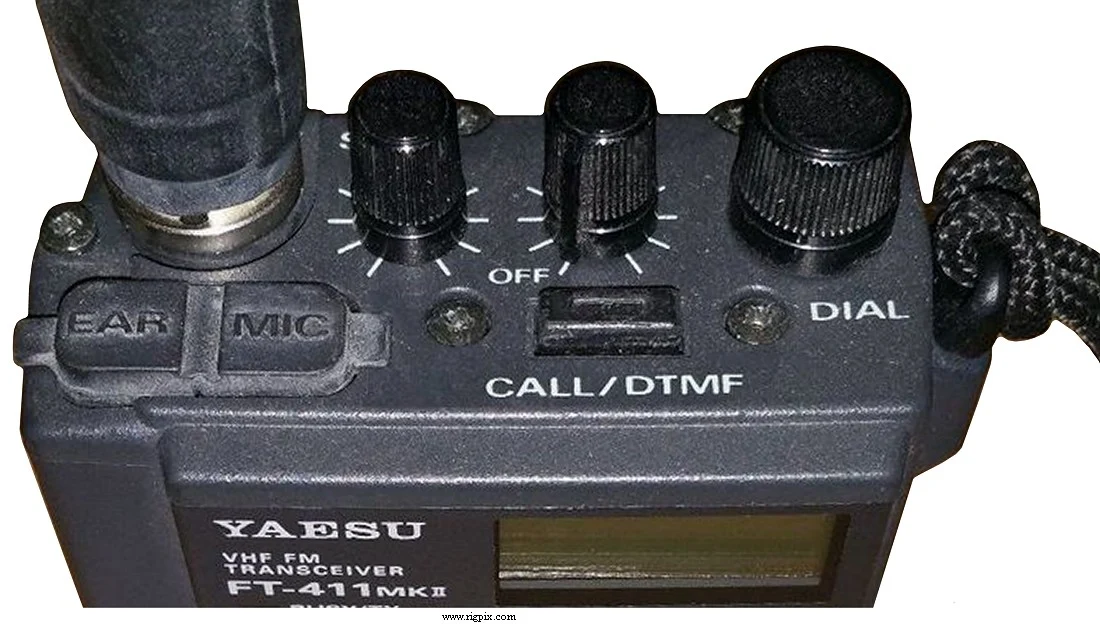

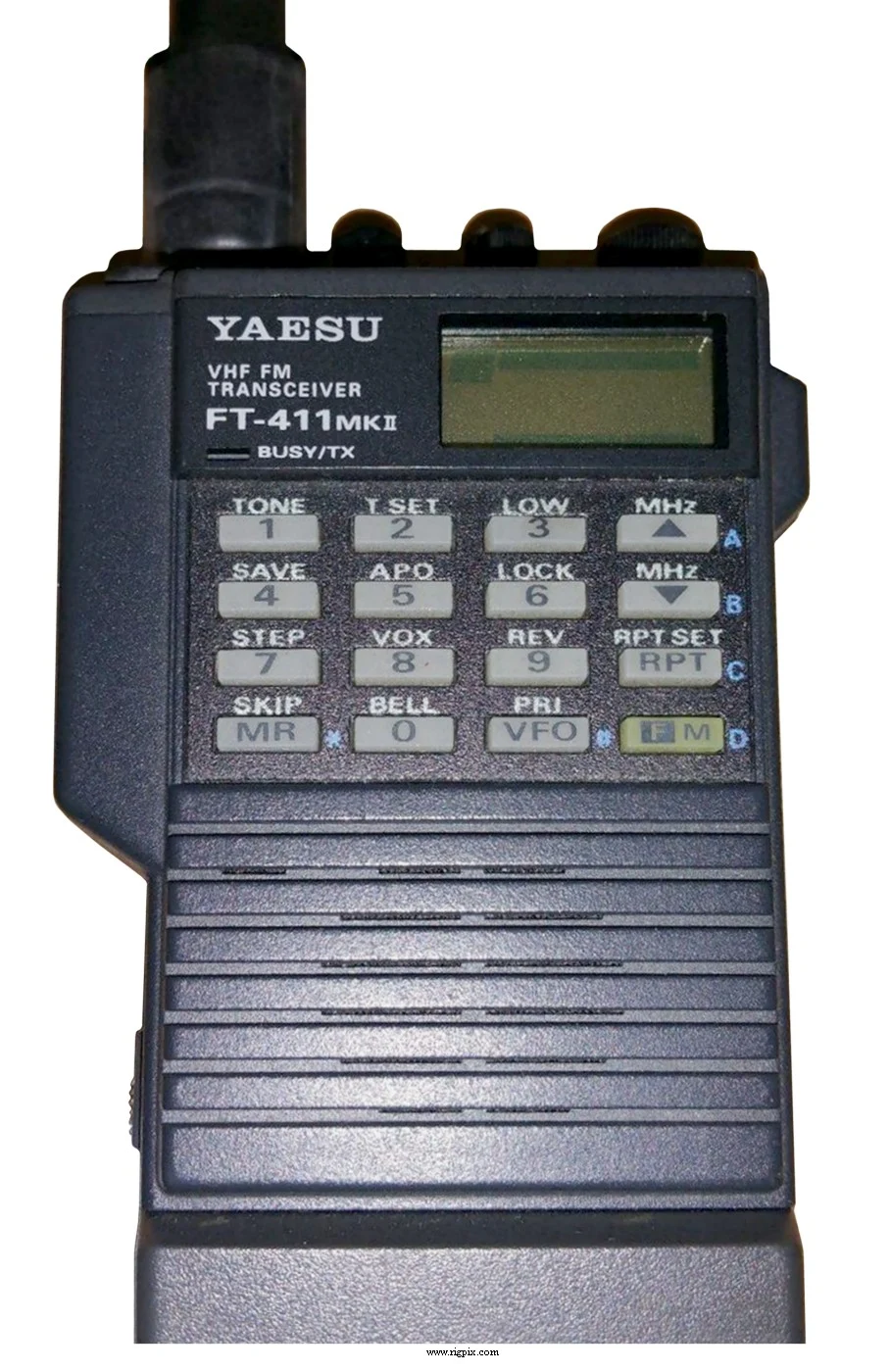

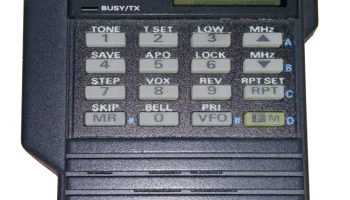

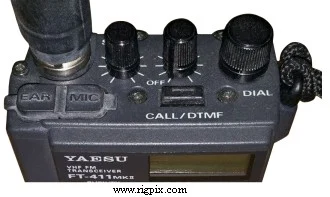

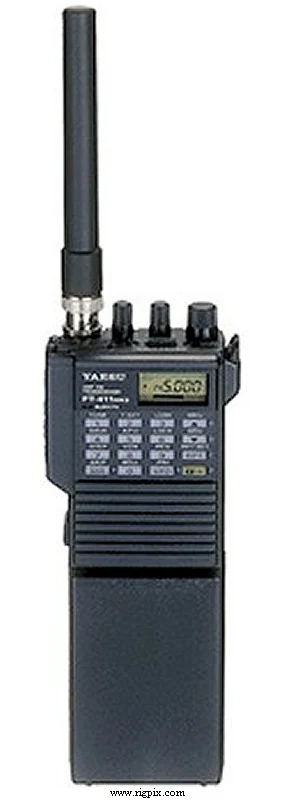

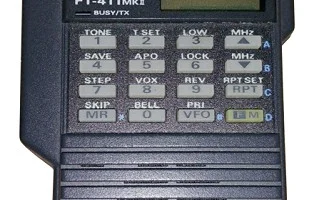

FT-411MKII
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 140-174 MHz USA TX: 144-148 MHz RX: 140-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability | Better than ±10 ppm (No tempearature reference) |
| Mode | FM |
| Channels / memory management | 46 regular 1 call 1 scan edge pair (PMS) Priority function 10 DTMF RAM storage with lithium battery backup |
| Repeater shift / offset | ±600 KHz (Default, programmable) |
| Power supply | 5.5-15 VDC |
| Current drain / power consumption | RX: 7-150 mATX: Max 1.3 A |
| Antenna impedance / connector | 50 ohm / BNC |
| Dimensions (W*H*D) | 55*188*32 mm (2.16*7.4*1.26"), with FNB-11H |
| Weight | 550 g (19.4 oz), with FNB-11H |
| Other features | ARS. VOX. DTMF. Backlit display. 1750 Hz repeater tone (Europe). Data cloning. CTCSS/PL option. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF:? MHz 2nd IF:? KHz |
|---|---|
| Sensitivity | 0.16 uV (12 dB SINAD) |
| Selectivity | 60 dB (Adjacent channel) |
| Image rejection | — |
| AF output power / speaker | 500 mW at 5% distortion / 8 ohm (@ 12 VDC) |
| External speaker connector | 3.5 mm |
TRANSMITTER SECTION
| RF output power | HighLow 2 m:2.5-5 W? mW NB! The high output level depends on battery pack/voltage |
|---|---|
| 2 m | 2.5-5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB |
| Microphone impedance / connector | 2 Kohm / ?-pin (2.5 mm) |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 1999-200x (Discontinued) |
|---|---|
| Additional info | — |
| CA-7 FBA-17 FNB-11H FNB-12 FNB-14 FNB-17 FTS-17A MH-32A2B MH-34C2B MH-37B2B MMB-32A NC-29 NC-34B NC-34C NC-50 NC-65B NC-65C NC-65F NC-65U PA-6 YHA-16 | Charger sleeve (Required with NC-50) Battery case. For six LR6 / AA batteries NiCd battery pack. 12 V, 700 mAh NiCd battery pack. 12 V, 500 mAh NiCd battery pack. 7.2 V, 1000 mAh NiCd battery pack. 7.2 V, 600 mAh CTCSS/PL unit Speaker-microphone Speaker-microphone Earpiece-microphone Mobile hanger bracket Desktop quick charger (5-hour) for all above FNB packs Compact wall charger (117 VAC). For FNB-14 Compact wall charger (220-234 VAC). For FNB-14 Dual slot rapid charger Compact wall charger (117 VAC). USA Compact wall charger (220-234 VAC). Europe Compact wall charger (220 VAC). Argentinian plug Compact wall charger (220-234 VAC). UK plug Mobile DC adapter/charger for 7.2 V packs Rubber flex antenna |
