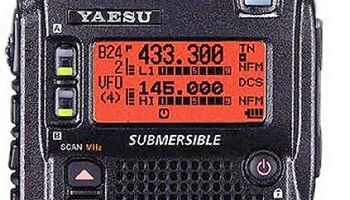

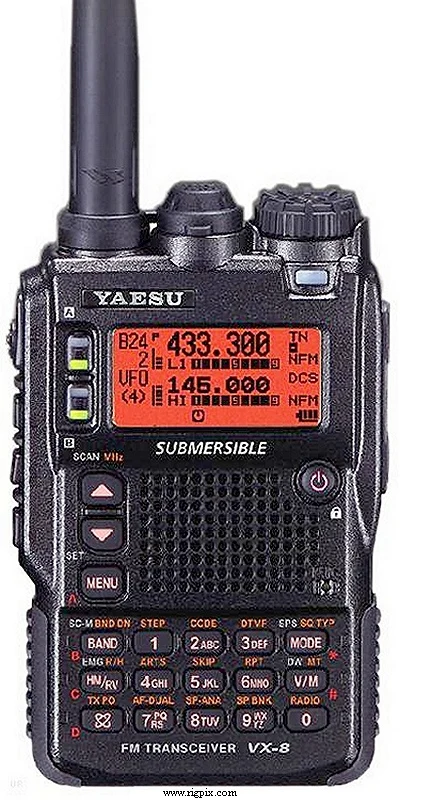

VX-8DE
Источник:
GENERAL
| Type | Amateur VHF/UHF transceiver |
|---|---|
| Frequency range | Europe TX: 50-52 / 144-146 / 430-440 MHz RX: 0.5-999.9 MHz |
| Tuning steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode | TX: AM / FM / NFMRX: AM / FM / NFM / WFM (Stereo with headphones) |
| Channels / memory management | 900 regular 99 skip 11 home 50 scan edge (PMS) 10 NOAA weather channels 57 marine VHF channels 89 popular shortwave BC stations Non-volatile EEPROM storage |
| Repeater shift / offset | 6 m: ±1 MHz 2 m: ±600 KHz 70 cm: ±1.6 or 7.6 MHz (Defaults, programmable) |
| Power supply | 4.5-7.4 VDC (Depending on battery pack)or 4-16 VDC external |
| Current drain / power consumption | RX: 35-240 mATX: Max 1.9 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 60*95*24 mm (2.36*3.74*0.94") |
| Weight | 240 g (8.47 oz), with FNB-101Li and antenna |
| Other features | Waterproof/submersible (IPX7). Built-in packet modem 1200/9600bd with APRS support. Bluetooth and GPS options. Barometric sensor. Weather alert. Alpha tags. Spectrum display. CTCSS/PL and DCS with tone scan. ARS. ARTS. VOX. WiRES. Backlit display and keypad. 1750 Hz repeater tone. Twin RX. |
RECEIVER SECTION
| Receiver system | Single conversion superheterodyne (AM BC-band) IF: 130 KHz Double conversion superheterodyne (AM/FM/NFM) 1st IF: 47.25 MHz (Main band), 46.35 MHz (Sub band) 2nd IF: 450 KHz Triple conversion superheterodyne (WFM) 1st IF: 45.8 MHz 2nd IF: 10.7 MHz 3rd IF: 1 MHz |
|---|---|
| Sensitivity | AM (10 dB S/N) 0.5-30 MHz: 3 uV 108-137 MHz: 1.5 uV FM (12 dB SINAD) 30-54 MHz: 0.35 uV 50-54 MHz: 0.18 uV (On sub RX) 54-76 MHz: 1 uV 76-88 MHz: 0.5 uV 137-140 MHz: 0.2 uV 140-150 MHz: 0.16 uV 144-148 MHz: 0.18 uV (On sub RX) 150-174 MHz: 0.2 uV 300-350 MHz: 0.5 uV 350-400 MHz: 0.2 uV 400-470 MHz: 0.18 uV 430-450 MHz: 0.2 uV (On sub RX) 800-999.9 MHz: 1.5 uV WFM (12 dB SINAD) 88-108 MHz: 1.5 uV 174-222 MHz: 1 uV 470-540 MHz: 1.5 uV 540-800 MHz: 3 uV |
| Selectivity | AM/FM 12 KHz (-6 dB)35 KHz (-60 dB) WFM 200 KHz (-6 dB)300 KHz (-20 dB) |
| Image rejection | — |
| AF output power / speaker | 200 mW at 10% distortion / 8 ohm (@ 7.4 V) |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighLow 3Low 2Low 1 6 m:1-5 W1-2.5 W1 W50 mW 2 m:1-5 W1-2.5 W1 W50 mW 70 cm:1-5 W1-2.5 W1 W50 mW NB! The high and Low 3 output levels depend on battery pack/voltage NB2! 6 m AM has a fixed output power of 1 W |
|---|---|
| 6 m | 1-5 W |
| 2 m | 1-5 W |
| 70 cm | 1-5 W |
| Modulation system | — |
| Max FM deviation (Factory set) | FM: ±5 KHzNFM: ±2.5 KHz |
| Spurious emissions | Better than -? dB |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2010-201x (Discontinued) |
|---|---|
| Additional info | Same as the original VX-8E but with enhanced APRS funcionality New price, september 2010 in the UK: £399.95 |
| BH-1A BH-2A BU-1 CD-40 CD-41 CN-3 CSC-93 CT-131 CT-134 CT-136 CT-M11 FBA-39 FEP-4 FGPS-2 FNB-10Li FNB-102Li MH-74A7A NC-85B NC-85C NC-85U NC-86B NC-86C NC-86U YHA-64 | Bluetooth headset (Stereo) Bluetooth headset (Mono) Bluetooth unit Charger cradle for BH-1A/BH-1B (Requires NC-85) Rapid charger (Requires NC-86) SMA-to-BNC adapter Soft case Microphone adapter Clone cable GPS antenna adapter Mic/Sp connection cable Battery case. For three LR6 / AA batteries Earphone for BH-1A GPS antenna unit Li-Ion battery pack. 7.4 V, 1100 mAh Li-Ion battery pack. 7.4 V, 1800 mAh Waterproof speaker-microphone Battery charger (120 VAC) Battery charger (230 VAC) Battery charger (230 VAC, UK) Wall charger (120 VAC) Wall charger (230 VAC) Wall charger (230 VAC, UK) Ruvver flex antenna |
